prices are in EUR

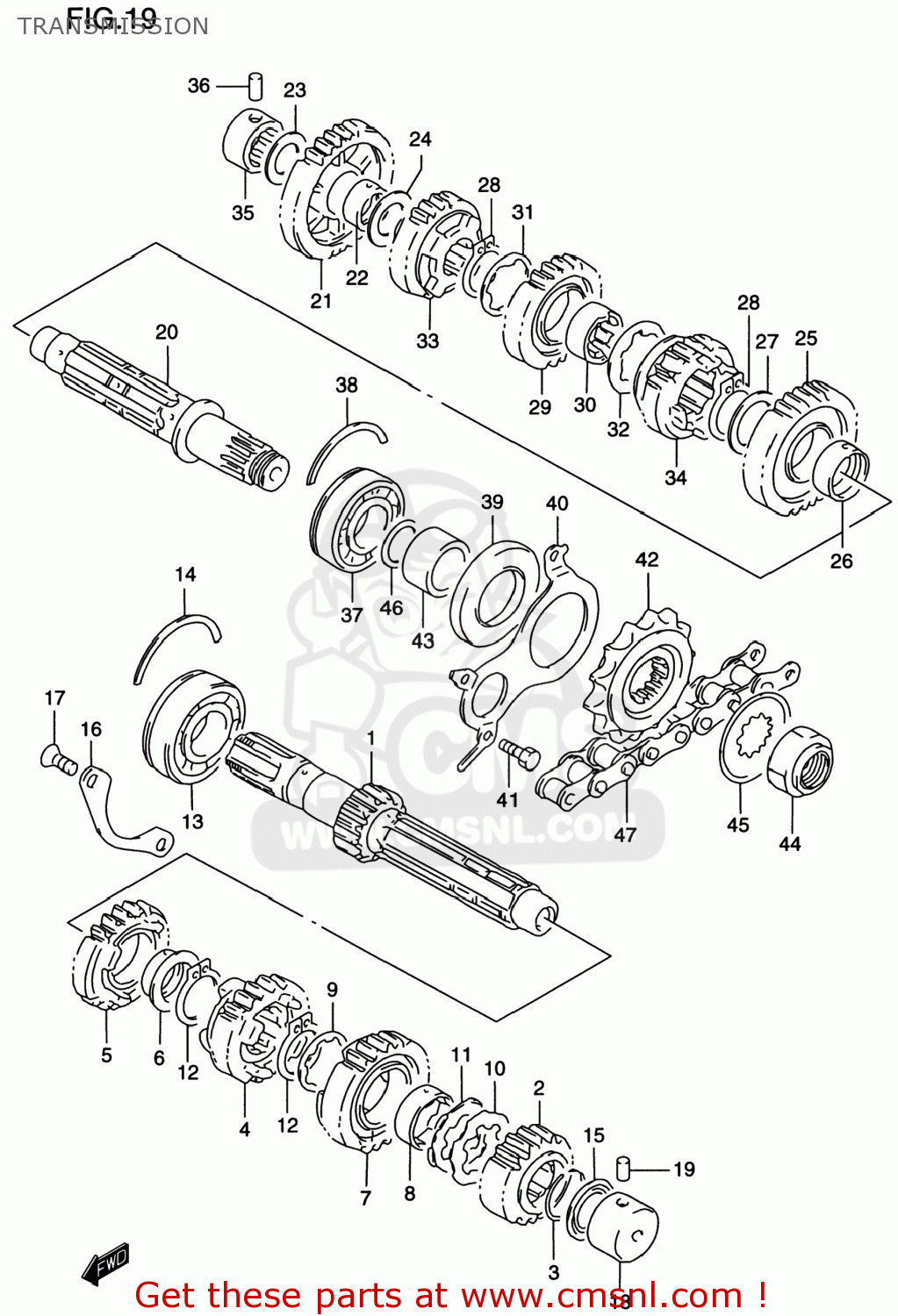

ref
part #
description
quantity
2
GEAR,2ND DRIVE(NT:19)
3
CIRCLIP
4
GEAR,THIRD DRIVE (NT:20)
5
GEAR,FOURTH DRIVE (NT:22)
7
GEAR,FIFTH DRIVE (NT:23)
8
BUSH,5TH DRIVE GEAR
9
WASHER,LOCK
10
WASHER,LOCK
11
WASHER
12
RING,SNAP
13
BEARING(25X62X17)
14
C RING
15
SEAL,OIL(20X31.2X2.7)
16
RETAINER,CNTR SHAFT BEARING
17
SCREW
18
BEARING(20X34X17.5)
19
PIN
21
GEAR,FIRST DRIVEN (NT:31)
23
SHIM(20X34X1)
24
SHIM(22X34X1)
25
GEAR,2ND DRIVEN(NT:31)
26
BUSH(28X32X11)
27
SHIM(28X36X1)
28
CIRCLIP
29
GEAR,THIRD DRIVEN (NT:25)
30
BUSH,3RD DRIVEN GEAR
31
WASHER,LOCK
32
WASHER,LOCK
33
GEAR,FOURTH DRIVEN (NT:23)
34
GEAR,FIFTH DRIVEN (NT:21)
35
BEARING(20X34X20)
36
PIN
37
BEARING(25X62X21.6)
38
C RING
39
SEAL,OIL(34X62X6)
40
RETAINER,DRIVE SHAFT OIL SEAL
41
BOLT
42
SPROCKET,ENGINE(NT:15)
43
SPACER(25X34X19)
44
NUT
45
WASHER,LOCK
46
O RING(D:1,ID:24.5)
47-1
CHAIN ASSEMBLY,DRIVE RKGB5
47-1
CHAIN ASSEMBLY,DRIVE RKGB5
47-1
CHAIN ASSEMBLY,DRIVE RKGB5
47-2
CHAIN ASSEMBLY,DRIVE RK GB
47-2
CHAIN ASSEMBLY,DRIVE RK GB
47-2
CHAIN ASSEMBLY,DRIVE RK GB
47-3
CHAIN ASSEMBLY RKGB50MFOZ1
47-3
CHAIN ASSEMBLY RKGB50MFOZ1
47-3
CHAIN ASSEMBLY RKGB50MFOZ1
