REAR MASTER CYLINDER (GSF1200SV/SW/SX/SY)

GSF1200S BANDIT 1999 (X) USA (E03)

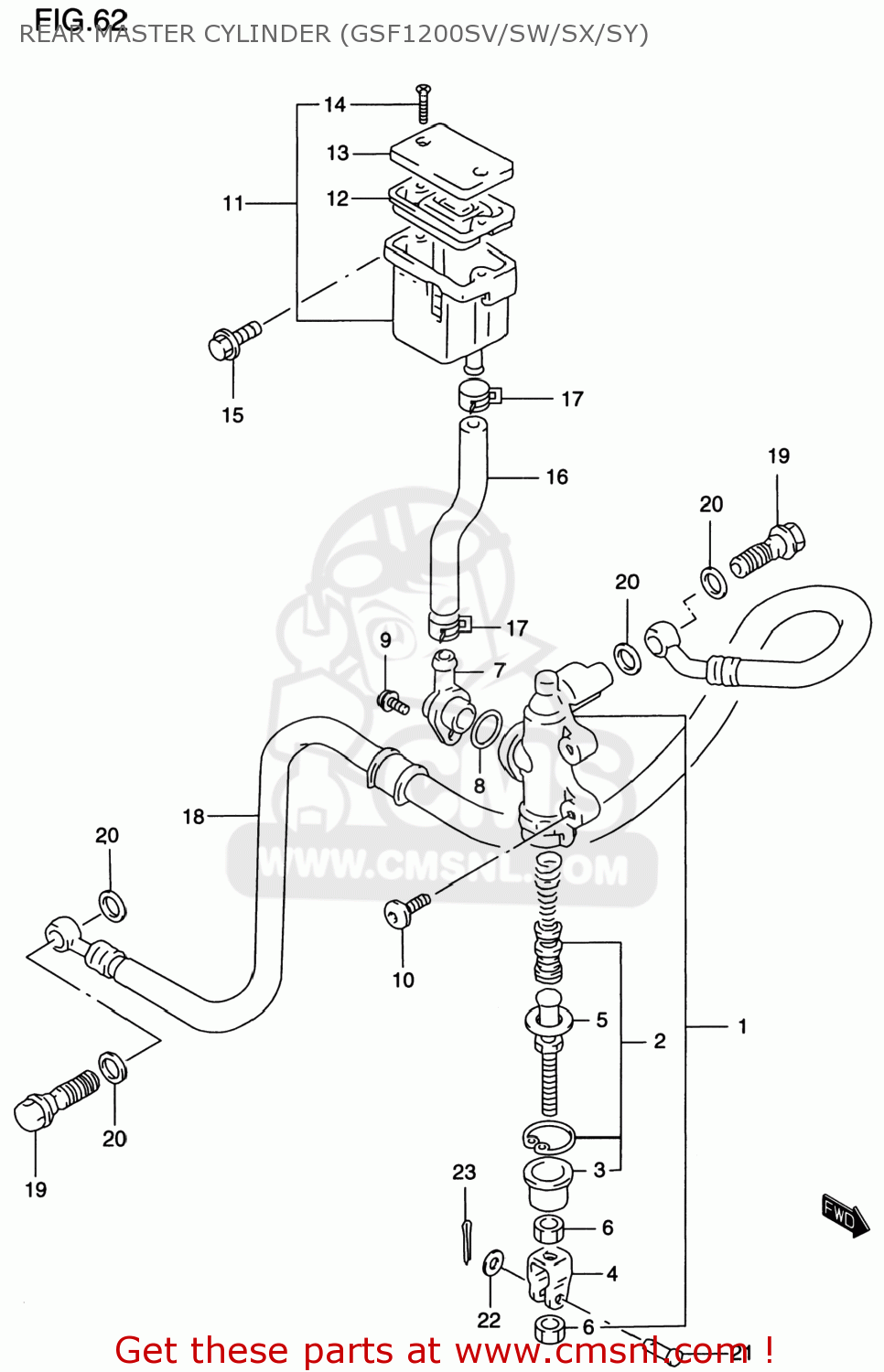

Rear master cylinder (gsf1200sv/sw/sx/sy) diagram GSF1200S BANDIT 1999 (X) USA (E03)

REAR MASTER CYLINDER (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1999 (X) USA (E03)

REAR MASTER CYLINDER (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960017C01
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967048B00
ref: 5

ROD,PUSH

€ 20.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274123
ref: 9
02112-7412A

SCREW

€ 2.50

10

0910608118
ref: 10
09106-08161

BOLT 8X20

€ 4.00

11

6974038B21
ref: 11

TANK ASSY,RESERVOIR

€ 85.50

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

0155006123
ref: 15
01550-0612A

BOLT

€ 2.50

16

6973126E00
ref: 16

HOSE,RESERVOIR TANK

€ 21.00

17

0940113417
ref: 17

CLIP

€ 2.50

18

6948026E00
ref: 18

HOSE,RR BRAKE

€ 77.50

19

0936010041
ref: 19
09360-10061

BOLT UNION

€ 6.50

20

0916110009
ref: 20

WASHER(10X15X1.5)

€ 2.00

21

0920006037
ref: 21
09200-06068

PIN

€ 5.00

22

0832201063
ref: 22
08322-0106B

WASHER

€ 2.00

23

0411120158
ref: 23
04111-2015A

PIN

€ 1.50
