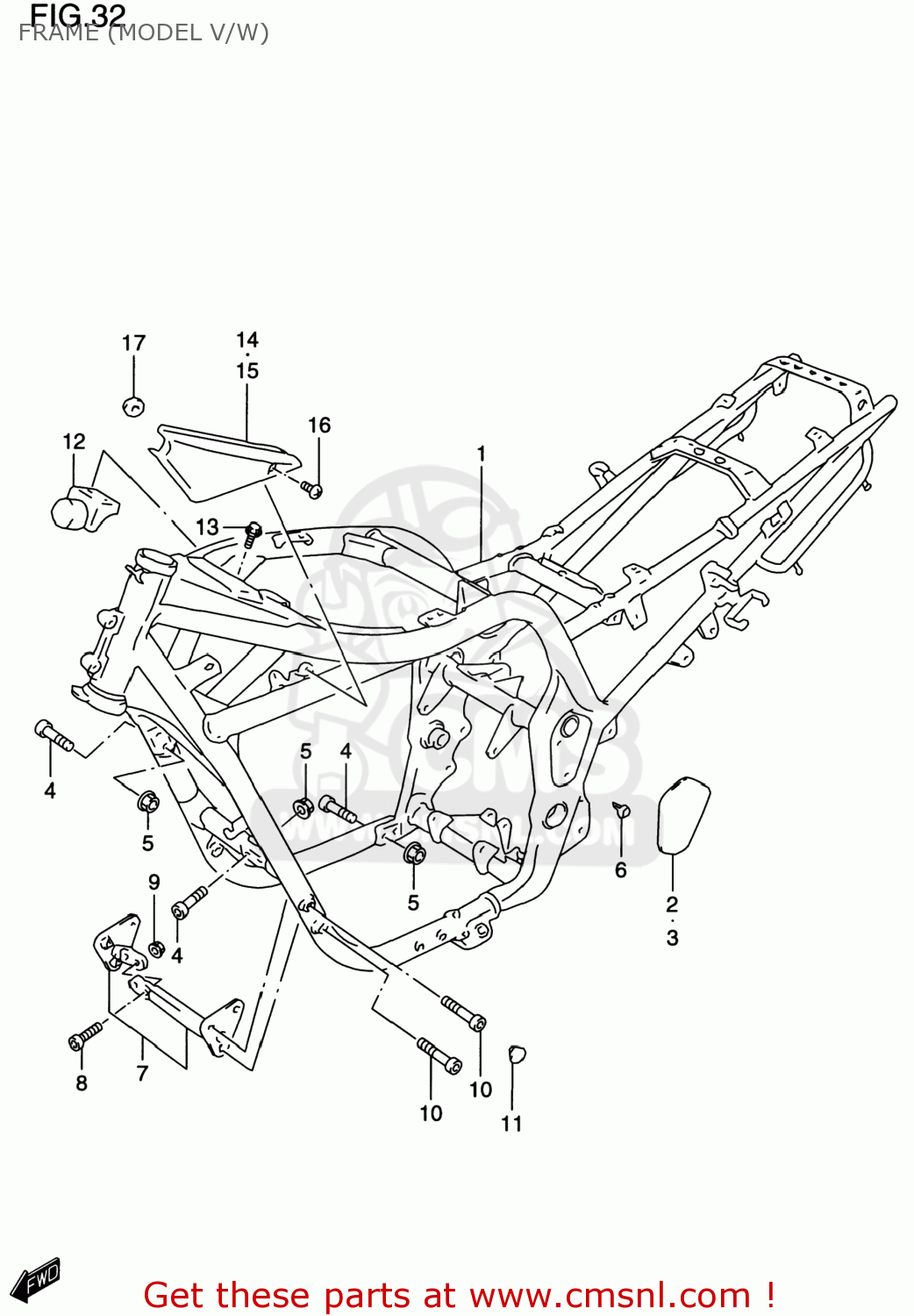

FRAME (MODEL V/W)

ref

part #

description

quantity

1-1

4110027E6022U
ref: 1-1
41100-27E61-22U

FRAME COMP

€ 2,481.50

1-10

4110027E7033J
ref: 1-10
41100-27E71-33J

FRAME COMP

€ 2,747.00

1-2

4110027E60Y0N
ref: 1-2
41100-27E61-Y0N

FRAME COMP

€ 1,317.00

1-3

4110027E7022U
ref: 1-3
41100-27E71-22U

FRAME COMP

€ 0.00

1-4

4110027E70Y0N
ref: 1-4
41100-27E71-Y0N

FRAME COMP

€ 2,747.00

1-5

4110027E2033J
ref: 1-5
41100-27E21-33J

FRAME COMP

€ 2,553.50

1-6

4110027E3033J
ref: 1-6
41100-27E31-33J

FRAME COMP

€ 0.00

1-7

4110027E6022U
ref: 1-7
41100-27E61-22U

FRAME COMP

€ 2,481.50

1-8

4110027E6033J
ref: 1-8
41100-27E61-33J

FRAME COMP

€ 1,317.00

1-9

4110027E7022U
ref: 1-9
41100-27E71-22U

FRAME COMP

€ 0.00

2

4163926E00
ref: 2

COVER,FRAME BODY,R

€ 12.50

3

4164926E00
ref: 3

COVER,FRAME BODY,L

€ 12.50

4

0910610019
ref: 4

BOLT(10X33)

€ 4.00

5

0831931103
ref: 5
08319-3110A

NUT

€ 3.00

6

0940907329
ref: 6

CLIP

€ 3.00

7-1

4190027E0022U
ref: 7-1

PLATE ASSEMBLY,ENGINE MOUNT

€ 118.50

7-2

4190027E00Y0N
ref: 7-2

PLATE ASSY,MOUNT NO.1(BLUE)

€ 115.50

7-3

4190027E0033J
ref: 7-3

PLATE ASSEMBLY,ENGINE MOUNT

€ 111.00

7-4

4190027E001UH
ref: 7-4

PLATE ASSEMBLY,MOUNT NO.1 (

€ 111.00

7-5

4190027E00Y4H
ref: 7-5

PLATE ASSEMBLY,MOUNT NO.1 (

€ 81.50

8

0712010303
ref: 8
07120-1030B

BOLT

€ 4.00

9

0831931103
ref: 9
08319-3110A

NUT

€ 3.00

10

0713008503
ref: 10
07130-0850A

BOLT

€ 3.50

11

0925008016
ref: 11

CAP(OD:12)

€ 2.50

12

4255027E50
ref: 12

DAMPER COMP,FRAME

€ 52.00

13

0155006123
ref: 13
01550-0612A

BOLT

€ 2.50

14

4751126E00291
ref: 14

COVER,FRAME HEAD,R

€ 15.50

15

4752126E00291
ref: 15

COVER,FRAME HEAD,L

€ 22.00

16

0913905021
ref: 16

SCREW(5X12)

€ 2.00

17

0932008013
ref: 17

CUSHION

€ 4.00

all assemblies
