ELECTRICAL (GSF1200SV/SW/SX/SY)

GSF1200S BANDIT 1999 (X) USA (E03)

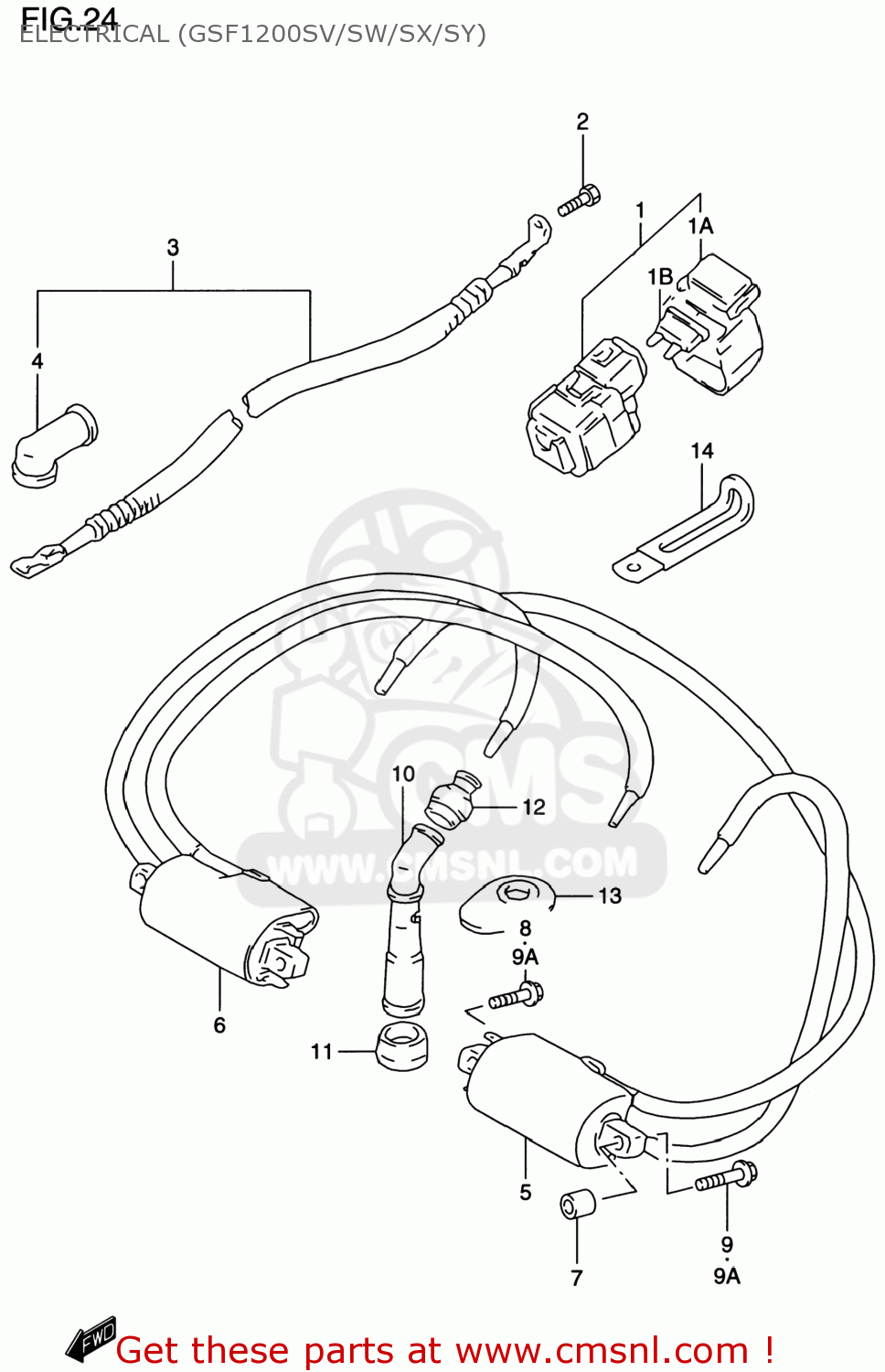

Electrical (gsf1200sv/sw/sx/sy) diagram GSF1200S BANDIT 1999 (X) USA (E03)

ELECTRICAL (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1999 (X) USA (E03)
ELECTRICAL (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1999 (X) USA (E03)
ELECTRICAL (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
3180026E00
€ 77.50
1A
3186126E00
ref: 1A
COVER,STARTER RELAY
3186126E00
€ 3.50
1B
0948130101
ref: 1B
FUSE(30A)
0948130101
€ 6.00
2
0912806013
ref: 2
SCREW(6X8)
0912806013
€ 1.50
3
3381027E00
ref: 3
WIRE,STARTER MOTOR LEAD
3381027E00
€ 30.50
4
3186148B10
ref: 4
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
5
3341026E01
ref: 5
COIL ASSY,IGNITION
3341026E01
€ 163.50
6
3342026E01
ref: 6
COIL ASSY,IGNITION
3342026E01
€ 152.50
7
0918006095
ref: 7
SPACER(6X12X10)
0918006095
€ 4.50
8
0155006203
ref: 8
01550-0620A
BOLT
0155006203
€ 2.50
9
0155006253
ref: 9
01550-0625A
BOLT
0155006253
€ 2.50
9A
0155006253
ref: 9A
01550-0625A
BOLT
0155006253
€ 2.50
10
3351048B10
ref: 10
CAP,SPARK PLUG
3351048B10
€ 29.50
11
3354123E01
ref: 11
SEAL,SPARK PLUG CAP
3354123E01
€ 7.00
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
13
3354348B00
ref: 13
COVER,SPARK PLUG CAP
3354348B00
€ 12.50
14-1
0940406431
ref: 14-1
09404-06432
CLAMP(L:65)
0940406431
€ 2.50
14-2
0940406432
ref: 14-2
CLAMP(L:65)
0940406432
€ 2.50
