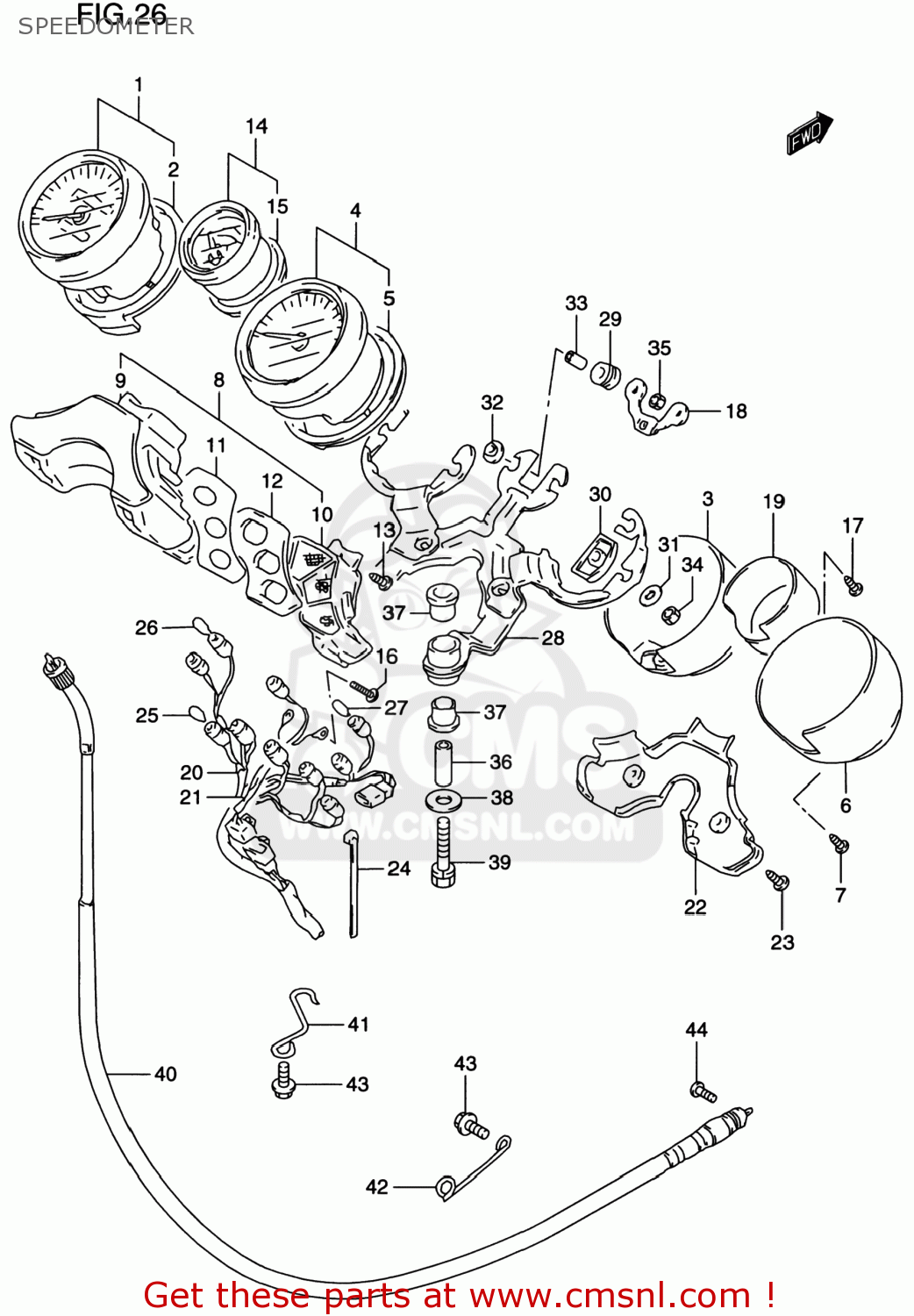

SPEEDOMETER

ref

part #

description

quantity

1

3411026D21
ref: 1

SPEEDOMETER

€ 354.50

2

3416126D00
ref: 2

DAMPER

€ 4.00

3

3411126D01
ref: 3

COVER,SPEEDOMETER

€ 69.00

4

3421027E00
ref: 4

TACHOMETER

€ 431.00

5

3416126D00
ref: 5

DAMPER

€ 4.00

6

3421126D01
ref: 6

COVER,TACHOMETER

€ 69.00

7

0354114123
ref: 7
03541-1412A

SCREW

€ 2.00

8-1

3638027E00
ref: 8-1

BOX,PILOT

€ 129.50

8-2

3638027E60
ref: 8-2

PILOT BOX ASSY

€ 133.50

9

3638126D00
ref: 9

CASE,UPR

€ 54.00

10-1

3638226D20
ref: 10-1

LWR CASE

€ 43.50

10-2

3638227E60
ref: 10-2

LWR CASE,PILOT

€ 41.50

11-1

3639327E00
ref: 11-1

PANEL

€ 19.00

11-2

3639327E60
ref: 11-2

PANEL

€ 21.50

12

3639627E00
ref: 12

GASKET

€ 10.50

13

3418412B00
ref: 13

SCREW

€ 1.50

14

3441027E00
ref: 14

FUEL,METER

€ 175.00

15

3416126D20
ref: 15

DAMPER

€ 18.50

16

3438309400
ref: 16

SCREW(3X22)

€ 2.50

17

0211274103
ref: 17
02112-7410B

SCREW

€ 2.00

18

3431326D20
ref: 18

PLATE,SET

€ 17.00

19

3431126D01
ref: 19

COVER,FUEL METER

€ 47.00

20-1

3417027E20
ref: 20-1

SOCKET,METER

€ 61.00

20-2

3417027EA0
ref: 20-2

CORD ASSEMBLY

€ 48.00

21

3417027E10
ref: 21

SOCKET,FUEL METER

€ 37.00

22

3638326D00
ref: 22

COVER,PILOT BOX

€ 21.00

23

0351204149
ref: 23

SCREW

€ 1.50

24

3638545300
ref: 24

CLAMP

€ 4.50

25

0947112103
ref: 25

BULB(12V3W,T6.5)

€ 2.50

26

0947112108
ref: 26

BULB(12V1.7W,T6.5)

€ 2.00

27

0947112077
ref: 27

BULB(12V1.7W,T10,WB121)

€ 1.00

28

3495026D20
ref: 28

BRACKET,METER

€ 136.50

29

3419126D10
ref: 29

DAMPER

€ 11.50

30

3419126D20
ref: 30

DAMPER

€ 8.50

31

0916005013
ref: 31

WASHER(5.2X16X1)

€ 1.50

32

3418526D00
ref: 32

WASHER,FUEL,METER

€ 2.50

33

3418726D00
ref: 33

SPACER,FUEL METER

€ 3.00

34

0831000057
ref: 34

NUT

€ 2.50

35

0831000047
ref: 35

NUT

€ 2.00

36

0930308002
ref: 36

BUSH(L:31)

€ 6.00

37

0932012024
ref: 37

CUSHION

€ 2.00

38

0916008133
ref: 38
09160-08151

WASHER (8.5X26X1.6)

€ 2.00

39

0155008453
ref: 39
01550-0845A

BOLT

€ 3.00

40

3491027E01
ref: 40

CABLE ASSY,SPEEDOMETER

€ 97.00

41

3493827E00
ref: 41

GUIDE,SPEEDOMETER CABLE NO.1

€ 6.50

42

3493917D00
ref: 42

GUIDE,SPEEDOMETER CABLE NO.3

€ 5.50

43

0155006123
ref: 43
01550-0612A

BOLT

€ 2.50

44

0211205163
ref: 44
02112-0516A

SCREW

€ 2.00
