SECOND AIR (GSF1200SV/SW/SX/SY E33)

GSF1200S BANDIT 1999 (X) USA (E03)

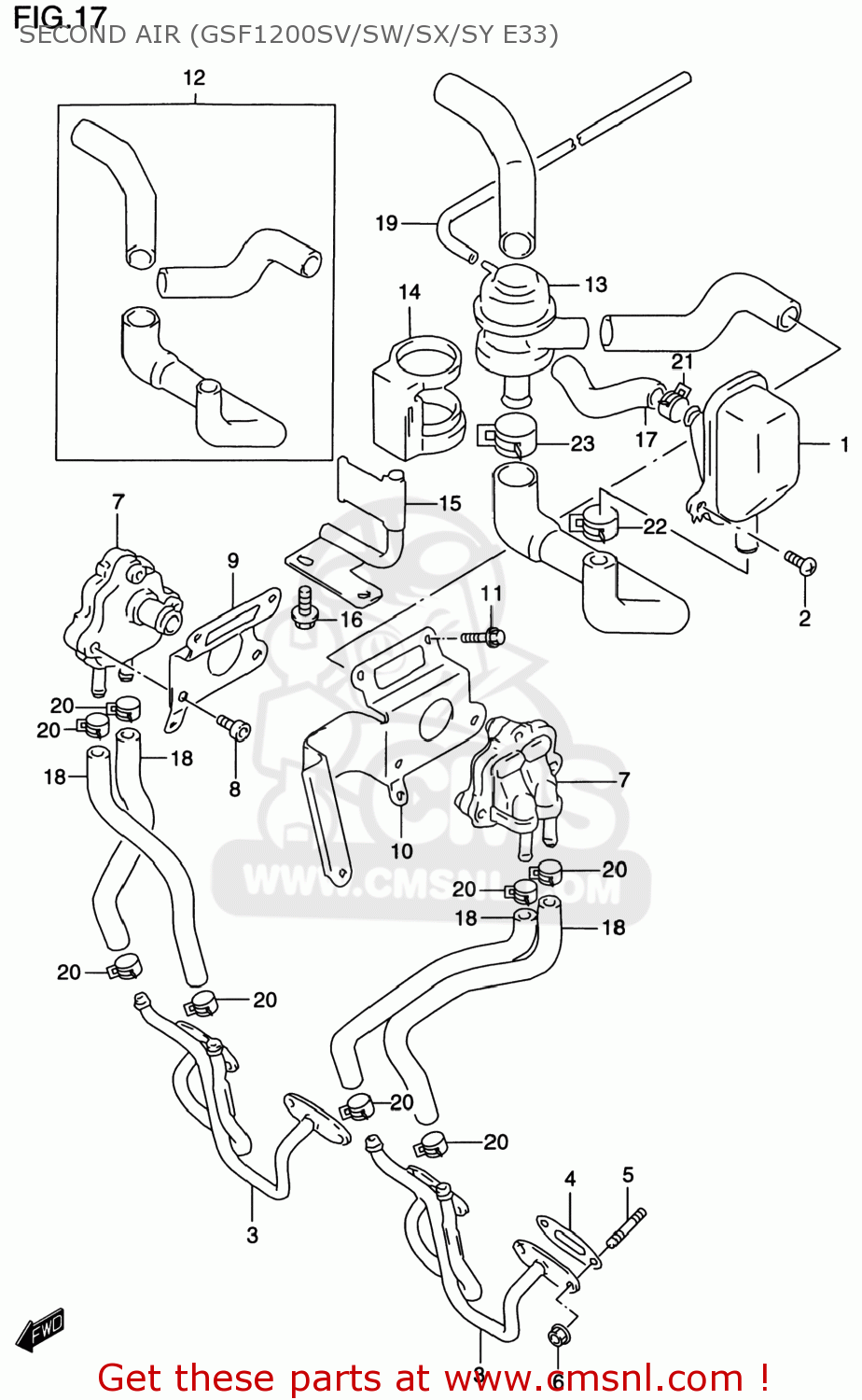

Second air (gsf1200sv/sw/sx/sy e33) diagram GSF1200S BANDIT 1999 (X) USA (E03)

SECOND AIR (GSF1200SV/SW/SX/SY E33) GSF1200S BANDIT 1999 (X) USA (E03)
SECOND AIR (GSF1200SV/SW/SX/SY E33) GSF1200S BANDIT 1999 (X) USA (E03)
SECOND AIR (GSF1200SV/SW/SX/SY E33) GSF1200S BANDIT 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1380027E00
ref: 1
CLEANER ASSY,2ND AIR
1380027E00
€ 36.00
2
0214206163
ref: 2
02142-0616A
SCREW
0214206163
€ 2.50
3
1843026D00
ref: 3
PIPE,2ND AIR,L
€ 0.00
4
1844117C10
ref: 4
18441-17C11
GASKET,SECOND AIR PIPE (NAS)
1844117C10
€ 7.00
5
0142106163
ref: 5
01421-0616A
STUD BOLT
0142106163
€ 2.00
6
0831610063
ref: 6
08316-1006B
NUT
0831610063
€ 2.50
7
1845048B00
ref: 7
VALVE ASSY,2ND AIR REED
1845048B00
€ 125.50
8
0713005167
ref: 8
BOLT
0713005167
€ 2.50
9
1862127E00
ref: 9
BRACKET,REED VALVE,RIGHT
€ 0.00
10
1867027E00
ref: 10
BRACKET COMP,REED VALVE
€ 0.00
11
0155006123
ref: 11
01550-0612A
BOLT
0155006123
€ 2.50
12
1842027810
ref: 12
HOSE SET,SECOND AIR
€ 0.00
13
1851046E00
ref: 13
VALVE ASSEMBLY,SECOND AIR SWITCH
€ 0.00
14
1848701D00
ref: 14
CUSHION,2ND AIR VALVE
1848701D00
€ 10.00
15
1865027E00
ref: 15
BRACKET COMP,SECOND AIR S
€ 0.00
16
0155006123
ref: 16
01550-0612A
BOLT
0155006123
€ 2.50
17
0935212163600
ref: 17
HOSE(12X16X600)
0935212163600
€ 24.50
18
0935590145600
ref: 18
HOSE(9X14X600)
0935590145600
€ 10.00
19
0935940701600
ref: 19
HOSE(4X7X600)
0935940701600
€ 9.00
20-1
0940113413
ref: 20-1
09401-13417
CLIP
€ 2.50
20-2
0940113417
ref: 20-2
CLIP
0940113417
€ 2.50
21-1
0940116402
ref: 21-1
09401-16403
CLIP
€ 2.00
21-2
0940116403
ref: 21-2
CLIP
0940116403
€ 2.00
22-1
0940121403
ref: 22-1
CLIP
€ 3.00
22-2
0940120405
ref: 22-2
CLIP
0940120405
€ 3.00
23
0940125403
ref: 23
09401-25404
CLIP
€ 3.00
