GSF1250SA BANDIT 2007 (K7) USA (E03)

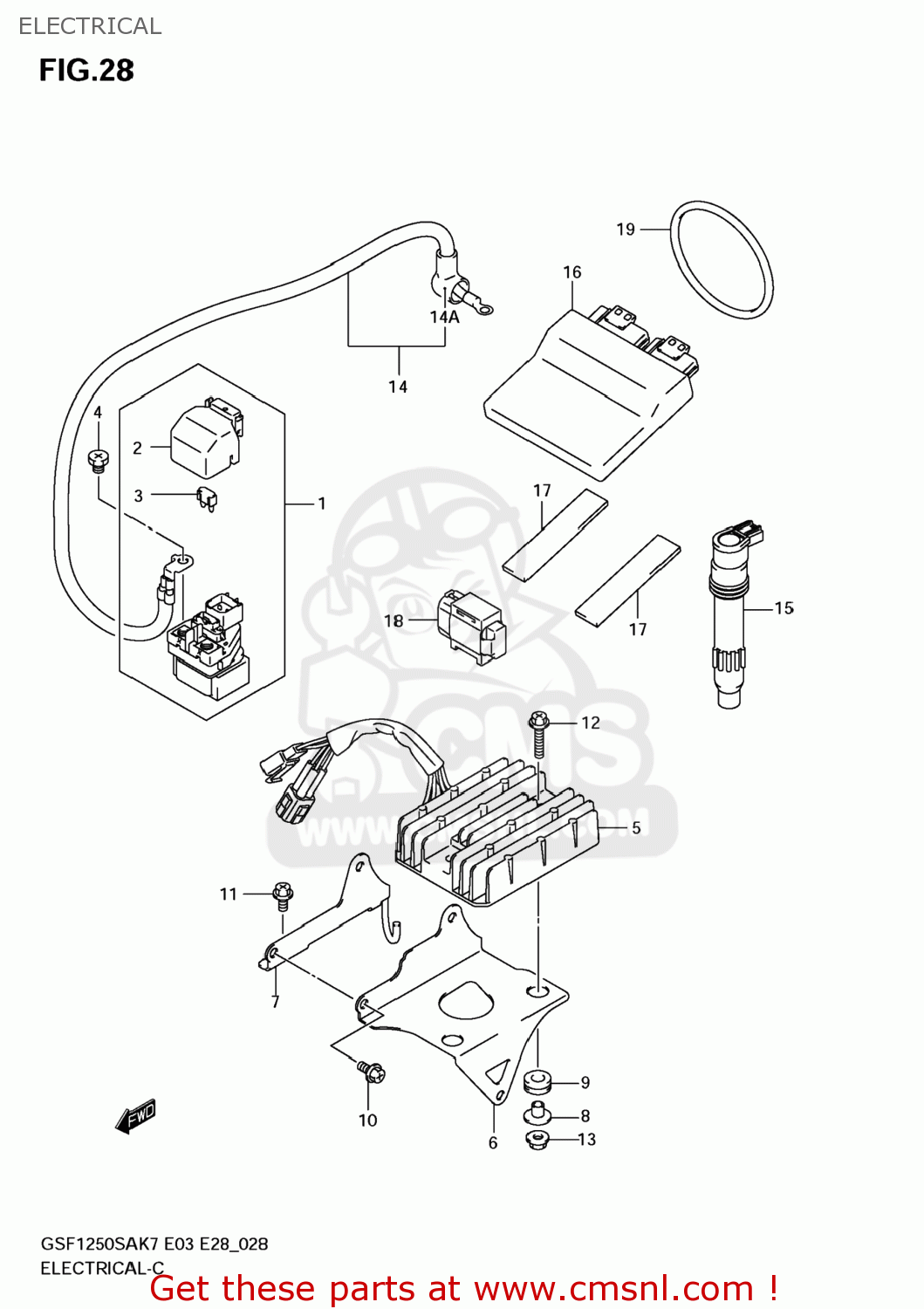

Electrical diagram GSF1250SA BANDIT 2007 (K7) USA (E03)
ELECTRICAL GSF1250SA BANDIT 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3180038G00
ref: 1-1
31800-38G10
RELAY ASSY
€ 77.50
1-2
3180038G10
ref: 1-2
RELAY ASSY,STARTING MOTOR
€ 77.50
2
3186138G00
ref: 2
COVER
€ 3.50
3
0948130501
ref: 3
FUSE(30A)
€ 0.50
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280018H00
ref: 5
RECTIFIER ASSY
€ 268.50
6
3283018H10
ref: 6
BRACKET,RECT FTG NO.1
€ 20.00
7
3283018H20
ref: 7
BRACKET,RECT FTG NO.2
€ 16.50
8
0918006325
ref: 8
SPACER(6.2X8.4X6.9)
€ 3.00
9
0932008066
ref: 9
CUSHION
€ 7.50
10
015470612A
ref: 10
BOLT
€ 2.00
11
015470612A
ref: 11
BOLT
€ 2.00
12
015470625A
ref: 12
BOLT
€ 2.50
13
083161006B
ref: 13
NUT
€ 2.50
14
3381018H00
ref: 14
WIRE,STARTER MOTOR LEAD
€ 18.00
14A
3362418H10
ref: 14A
CAP,STARTER MOTOR
€ 4.50
15
3341035F10
ref: 15
COIL ASSY,IGNITION
€ 122.50
16
3292018H20
ref: 16
32920-18H21
CONTROL UNIT,FI
€ 1,085.00
17
3365238A10
ref: 17
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
18
3396006G10
ref: 18
SENSOR ASSY,FUEL CUT
€ 75.00
19
0928070004
ref: 19
O RING(D:3.53,ID:69.44)
€ 3.50
