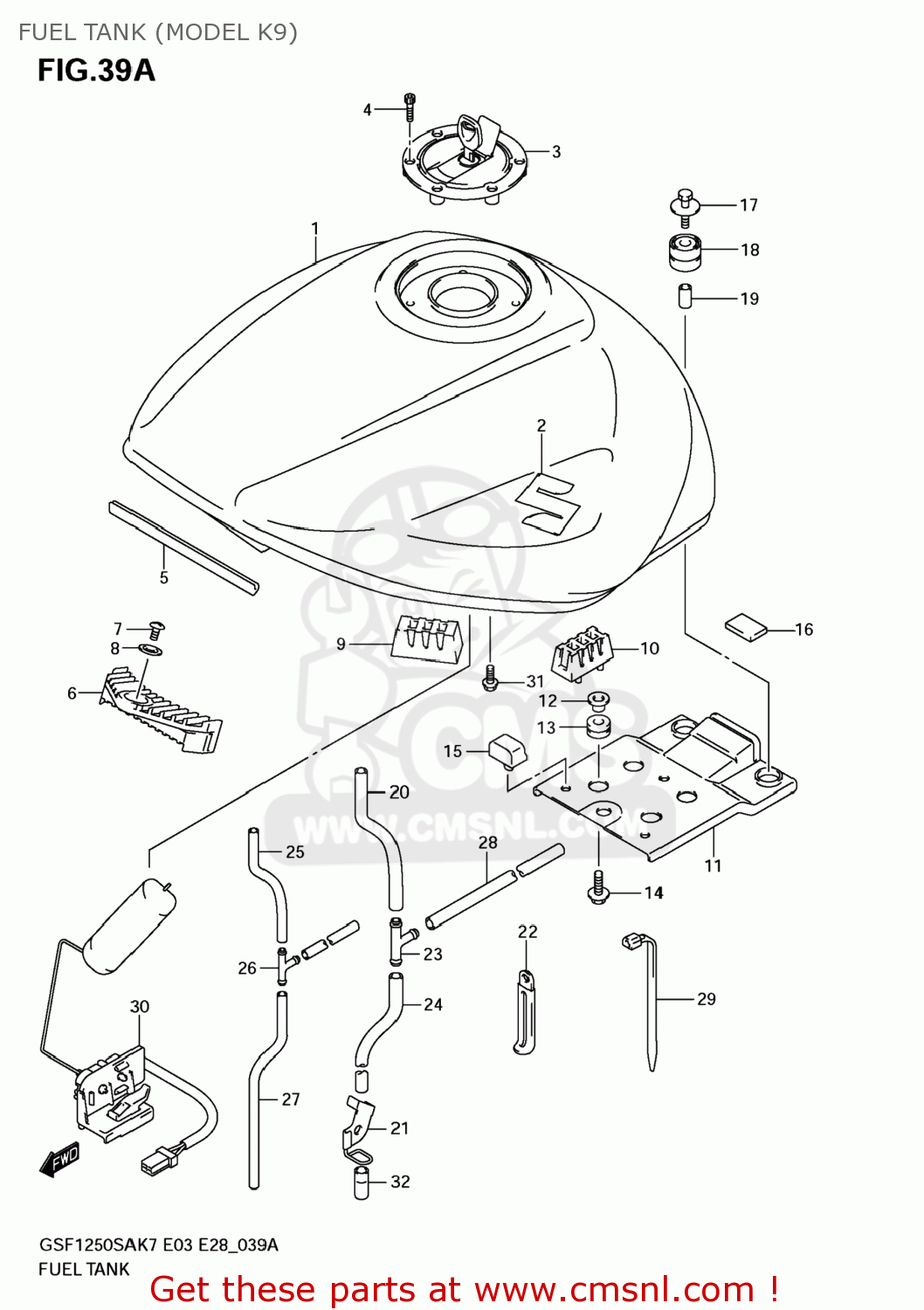

FUEL TANK (MODEL K9)

ref

part #

description

quantity

1-1

4410018H20YAY
ref: 1-1
44100-18H50-YAY

TANK ASSEMBLY,F

€ 701.00

1-2

4410018H20YHG
ref: 1-2

TANK ASSY,FUEL(GRAY)

€ 747.50

1-3

4410018H20YKZ
ref: 1-3

TANK ASSY,FUEL(BLUE)

€ 747.50

1-4

4410018H20YMK
ref: 1-4

TANK ASSY,FUEL(RED)

€ 0.00

2

6811118G20
ref: 2

EMBLEM,S

€ 22.50

3

4420016870
ref: 3

CAP SET,FUEL TANK

€ 148.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

6824104X50300
ref: 5

MOLDING

€ 6.00

6

4451127E00
ref: 6

CUSHION,FUEL TANK FR

€ 11.00

7

021420510B
ref: 7

SCREW

€ 2.50

8

0916905012
ref: 8

WASHER

€ 3.00

9

4514945330
ref: 9

CUSHION,SUPPORT(50X25X32)

€ 2.00

10

4454131F00
ref: 10

CUSHION,TANK SIDE

€ 11.50

11

4414138G00
ref: 11

BRACKET,FUEL TANK RR

€ 16.50

12

0916906062
ref: 12

WASHER

€ 3.00

13

0932008001
ref: 13

CUSHION

€ 3.50

14

0911606192
ref: 14

BOLT(6X20)

€ 2.00

15

4514921G00
ref: 15

CUSHION

€ 3.50

16

4716310FA0
ref: 16

CUSHION,SIDE COVER BRACKET

€ 4.00

17

0911606172
ref: 17

BOLT(6X30)

€ 2.50

18

4454138G00
ref: 18

CUSHION,FUEL TANK RR BRKT

€ 6.50

19

0918006271
ref: 19

SPACER(6.5X9X18)

€ 2.00

20

4442316G10
ref: 20

HOSE,WATER DRAIN

€ 9.50

21

4448018H00
ref: 21

GUIDE,DRAIN HOSE

€ 13.00

22

0940410417
ref: 22

CLAMP(L:97)

€ 2.50

23

0936708004
ref: 23

3-WAY [FILTER TO PUMP)

€ 4.50

24

0935270103600
ref: 24

HOSE(7X10.2X600)

€ 8.00

25

4442438G00
ref: 25
44425-09E00

HOSE,TANK BREA

€ 10.00

26

0936706002
ref: 26

JOINT,3 WAY

€ 3.00

27

0935250823600
ref: 27
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

28

093525082300B
ref: 28

HOSE(5X8.2X2000)

€ 13.00

29

0940714403
ref: 29

CLAMP(L:125)

€ 2.50

30

3481018H00
ref: 30

GAUGE ASSY,FUEL LEVEL SENDER

€ 96.50

31

015000612A
ref: 31

BOLT

€ 2.00

32

0935213162600
ref: 32

HOSE(13.5X16.5X600)

€ 14.50
