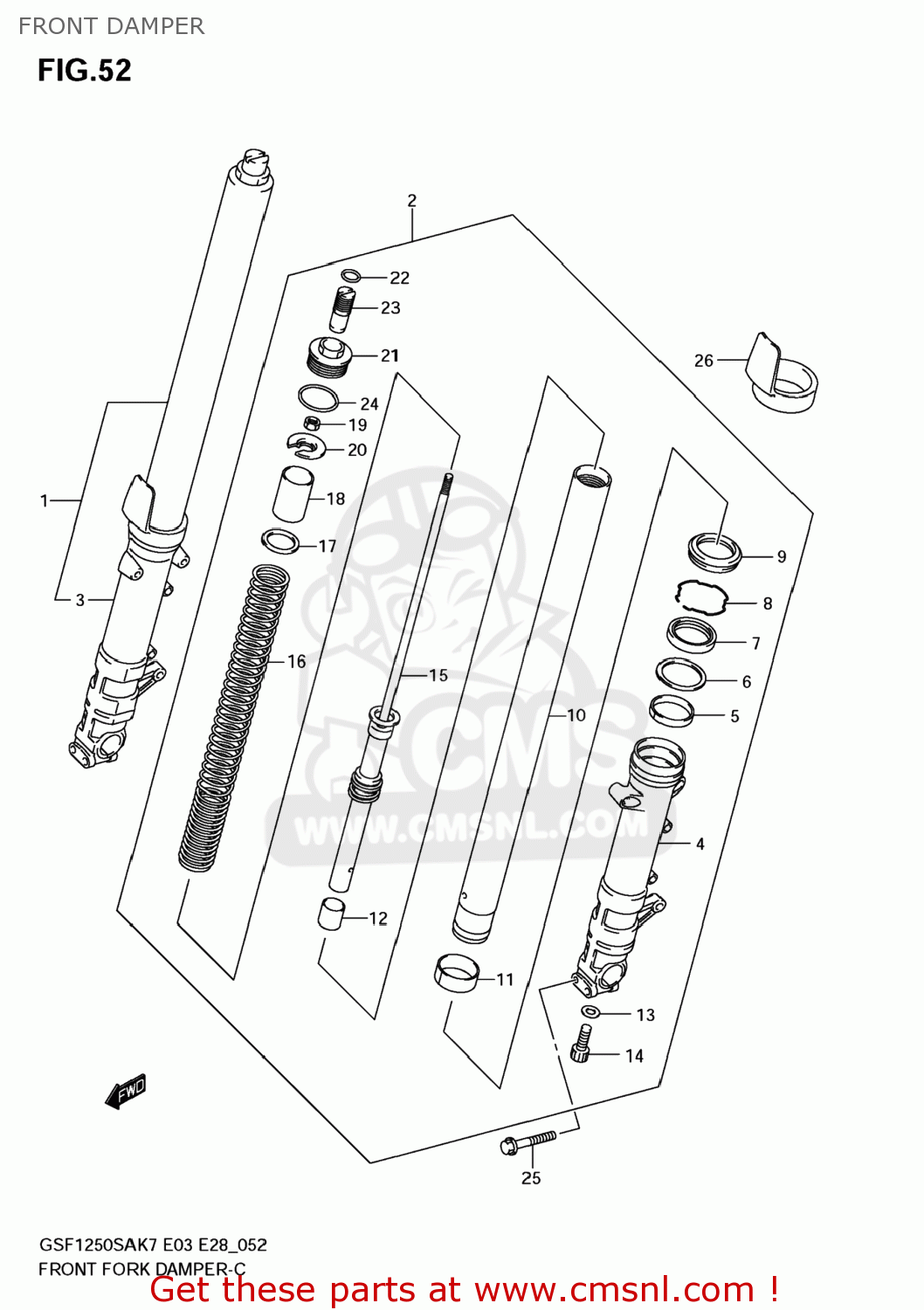

FRONT DAMPER

ref

part #

description

quantity

1-1

5110349G80
ref: 1-1

DAMPER ASSY,FR FORK,R(SILVER)

€ 1,212.50

1-1

5110349G80
ref: 1-1

DAMPER ASSY,FR FORK,R(SILVER)

€ 1,212.50

1-2

5110349GA0
ref: 1-2

DAMPER ASSY,FR FORK,R(BLACK)

€ 1,100.50

1-2

5110349GA0
ref: 1-2

DAMPER ASSY,FR FORK,R(BLACK)

€ 1,100.50

2-1

5110449G80
ref: 2-1

DAMPER ASSY,FR FORK,L(SILVER)

€ 1,212.50

2-1

5110449G80
ref: 2-1

DAMPER ASSY,FR FORK,L(SILVER)

€ 1,212.50

2-2

5110449GA0
ref: 2-2

DAMPER ASSY,FR FORK,L(BLACK)

€ 917.00

2-2

5110449GA0
ref: 2-2

DAMPER ASSY,FR FORK,L(BLACK)

€ 917.00

3-1

5113149G70
ref: 3-1

TUBE,OUTER,R(SILVER)

€ 542.00

3-2

5113149G90
ref: 3-2

TUBE,OUTER,R(BLACK)

€ 542.00

4-1

5114149G70
ref: 4-1

TUBE,OUTER,L(SILVER)

€ 454.50

4-2

5114149G90
ref: 4-2

TUBE,OUTER,L(BLACK)

€ 542.00

5

5115203F00
ref: 5

BUSH,GUIDE

€ 18.00

6

5116817C00
ref: 6

SPACER,SEAL

€ 5.00

7

5115327G00
ref: 7

SEAL,OIL

€ 15.00

8

5155638B00
ref: 8

CIRCLIP,FORK OIL SEAL

€ 4.50

9

5117327G00
ref: 9

SEAL,DUST

€ 22.00

10

5111049G00
ref: 10

TUBE,INNER

€ 481.50

11

5112113E00
ref: 11

BUSH,SLIDE

€ 18.00

12

5119531E00
ref: 12

PIECE,OIL LOCK

€ 25.00

13

5114836011
ref: 13

GASKET (NAS)

€ 4.00

14

5114748130
ref: 14

BOLT(8X27)

€ 3.50

15

5211049G80
ref: 15

ROD,FR DAMPER

€ 493.50

16

5117149G70
ref: 16

SPRING,FR

€ 85.50

17

5118617C00
ref: 17

SEAT,SPRING LWR

€ 4.50

18

5117612C10
ref: 18

COLLAR,SPRING(32.9X34X50)

€ 11.50

19

5182727E00
ref: 19

NUT

€ 6.50

20

5117217C00
ref: 20

SEAT,SPRING UPR

€ 11.50

21

5118914D00
ref: 21

BOLT,FORK

€ 62.50

22

0928014011
ref: 22

O RING(D:2.5,ID:13.8)

€ 3.50

23

5118531E00
ref: 23

ADJUSTER,SPRING

€ 62.50

24

5111717C00
ref: 24

O RING

€ 3.50

25

5116603FK0
ref: 25

BOLT(8X45)

€ 6.50

26

5120132F00
ref: 26

PROTECTOR

€ 17.00

all assemblies
