FRAME COVER

GSF1250SA BANDIT 2007 (K7) USA (E03)

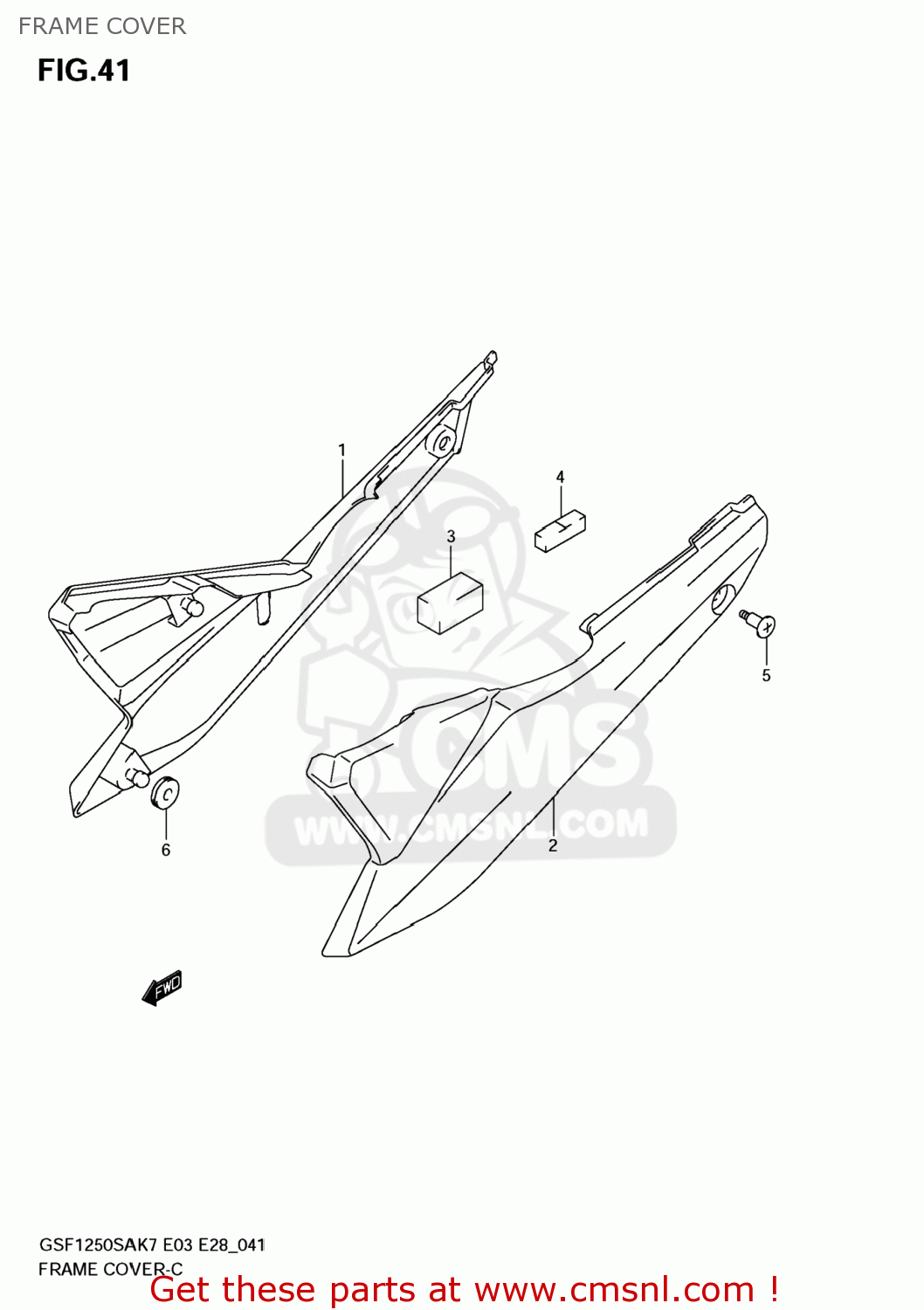

Frame cover diagram GSF1250SA BANDIT 2007 (K7) USA (E03)

FRAME COVER GSF1250SA BANDIT 2007 (K7) USA (E03)

FRAME COVER GSF1250SA BANDIT 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711138G02YKV
ref: 1

COVER,FRAME,R(BLACK)

€ 112.50

2

4721138G03YKV
ref: 2

COVER,FRAME,L(BLACK)

€ 112.50

3

4719122D00
ref: 3

RUBBER

€ 3.00

4

4489424A00
ref: 4

CUSHION

€ 1.50

5

0913906132
ref: 5
09139-06191

SCREW,FUEL TAN

€ 4.50

6

0932008018
ref: 6

CUSHION

€ 4.00
