FRAME (MODEL K9)

GSF1250SA BANDIT 2007 (K7) USA (E03)

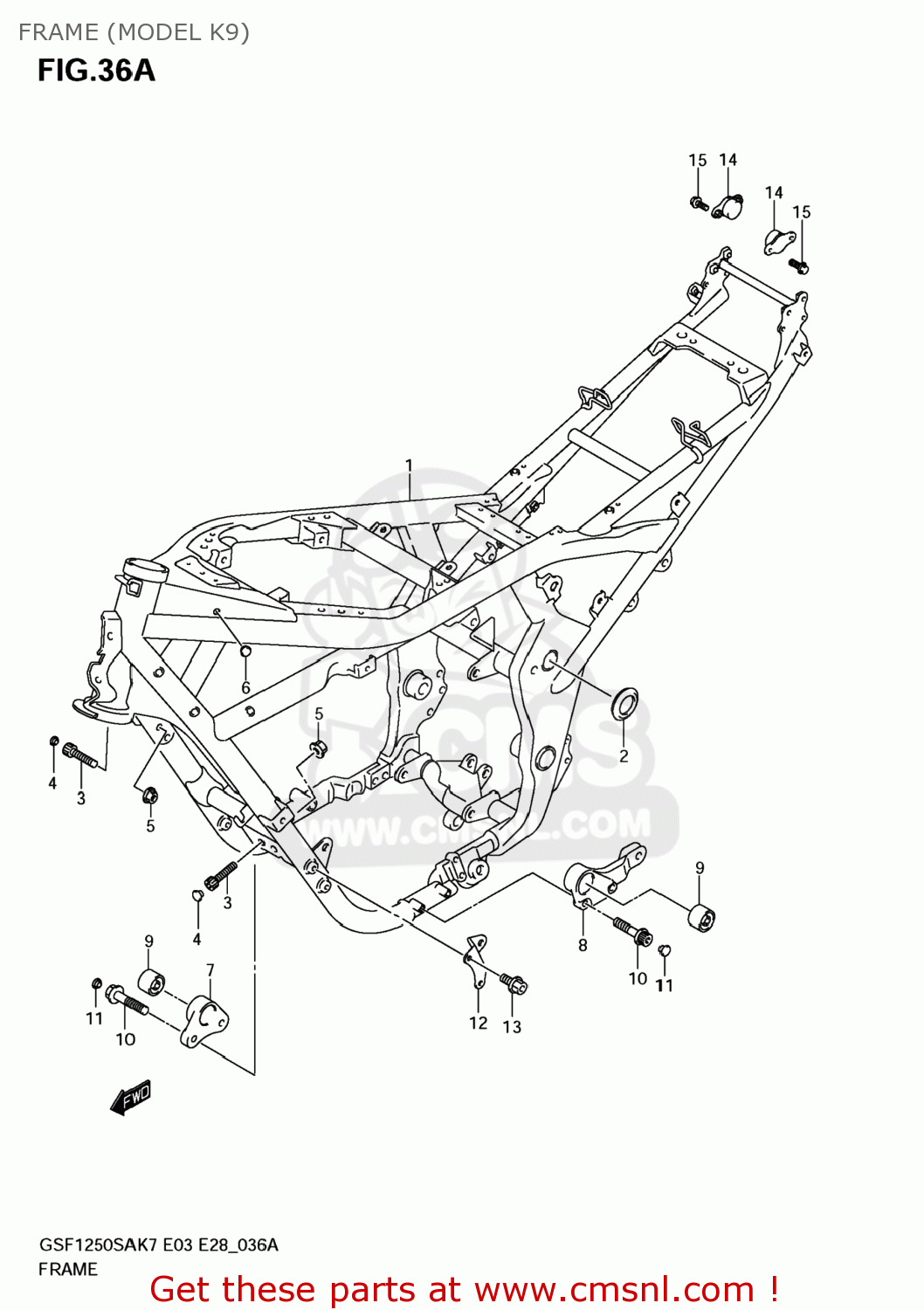

Frame (model k9) diagram GSF1250SA BANDIT 2007 (K7) USA (E03)

FRAME (MODEL K9) GSF1250SA BANDIT 2007 (K7) USA (E03)

FRAME (MODEL K9) GSF1250SA BANDIT 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110018H00YAP
ref: 1-1

FRAME(BLACK)

€ 2,337.50

1-2

4110018H00YMD
ref: 1-2

FRAME(SILVER)

€ 2,167.50

2

4358538G00
ref: 2
43585-38G01

CAP,FRAME PIVO

€ 6.00

3

0910610068
ref: 3

BOLT(10X37)

€ 2.50

4

0925008012
ref: 4

CAP(OD:12)

€ 2.00

5

083193110B
ref: 5

NUT

€ 3.00

6

0925012014
ref: 6

PLUG(OD:17)

€ 8.00

7

4193118H00
ref: 7

BRACKET,ENGINE MOUNTING NO.2,R

€ 137.00

8

4194118H00
ref: 8

BRACKET,ENGINE MOUNTING NO.2,L

€ 148.00

9

4193227E50
ref: 9

BUSH,ENG MOUNTING NO.2

€ 19.00

10

0910608065
ref: 10

BOLT(8X28)

€ 4.00

11

0925006008
ref: 11

CAP(OD:10)

€ 3.00

12-1

4194218H00YAP
ref: 12-1

BRACKET,ENGINE MOUNTING FR

€ 46.50

12-2

4194218H00YMD
ref: 12-2

BRACKET,ENGINE MOUNTING FR

€ 36.00

13

015500820A
ref: 13

BOLT

€ 2.50

14

4255049G00
ref: 14

DAMPER,FRAME

€ 36.50

15

015500612B
ref: 15

BOLT

€ 2.50
