REAR SWINGING ARM
GSF1250SA BANDIT 2007 (K7) USA (E03)

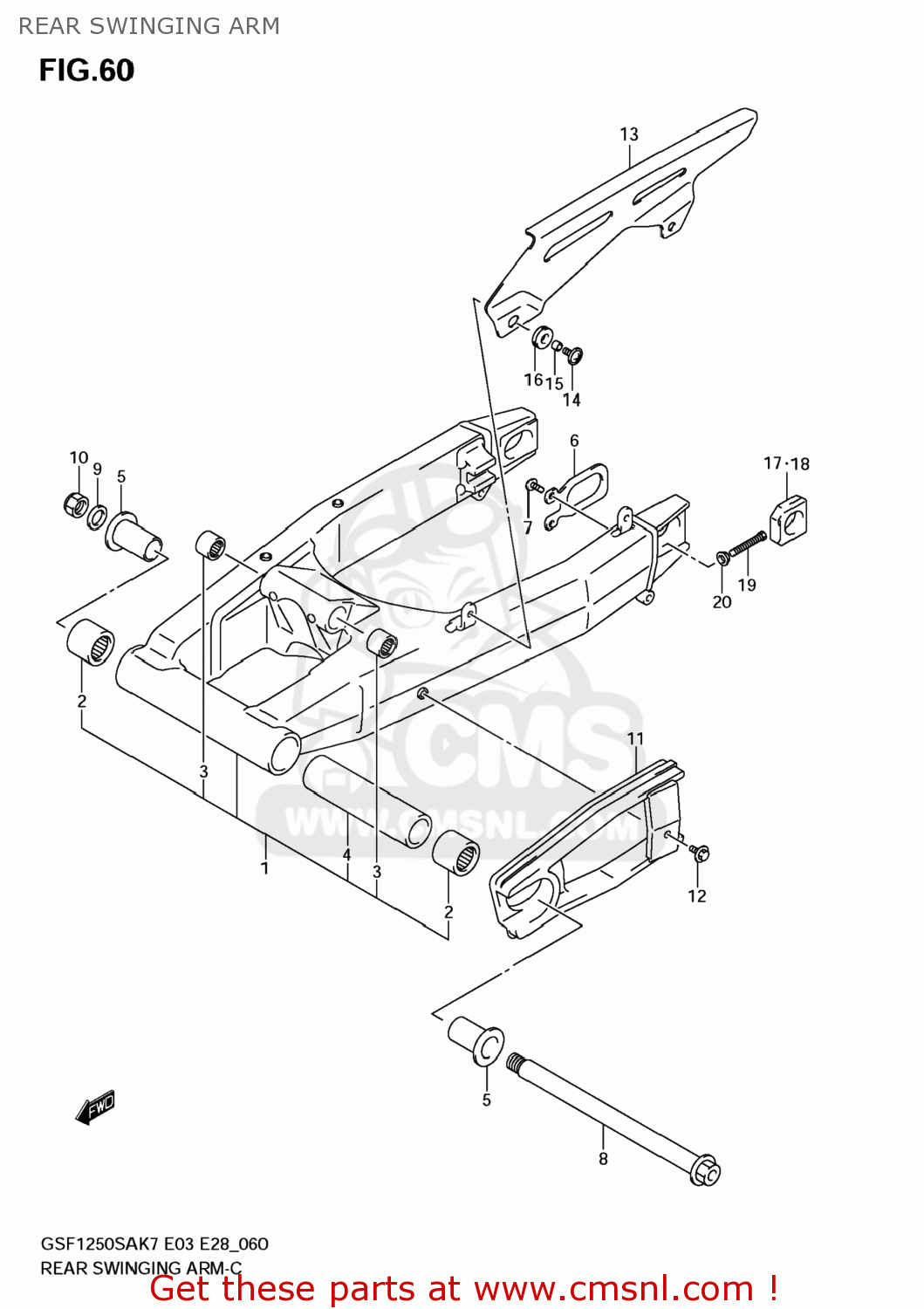

Rear swinging arm diagram GSF1250SA BANDIT 2007 (K7) USA (E03)
REAR SWINGING ARM GSF1250SA BANDIT 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100049G10YAP
ref: 1-1
SWINGINGARM ASSY,RR
€ 1,314.50
1-2
6100049G00
ref: 1-2
SWINGINGARM ASSY,RR
€ 1,737.00
1-2
6100049G00
ref: 1-2
SWINGINGARM ASSY,RR
€ 1,737.00
2
0926325059
ref: 2
BEARING(25X33X35)
€ 35.00
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
6128231E00
ref: 4
SPACER,RR SWGARM PIVOT CTR
€ 19.00
5
6125131E00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
€ 16.00
6
6112433E00
ref: 6
PLATE,RR SWING ARM BRKT
€ 3.50
7
021420616B
ref: 7
SCREW
€ 1.50
8
6121131E00
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 53.00
9
0916018030
ref: 9
WASHER(18.5X28X2.6)
€ 2.50
10
0915918007
ref: 10
NUT
€ 14.00
11
6127349G10
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 33.50
12
0911106072
ref: 12
BOLT(6X17.8)
€ 2.00
13
6131127E20
ref: 13
CASE,CHAIN
€ 172.00
14
0913606017
ref: 14
SCREW(6X16)
€ 2.50
15
0918006092
ref: 15
SPACER(6.2X8.3X6.1)
€ 4.00
16
0932008013
ref: 16
CUSHION
€ 4.00
17
6144540F20
ref: 17
ADJUSTER,CHAIN
€ 31.00
18
6144640F10
ref: 18
ADJUSTER,CHAIN
€ 31.00
19
0910008287
ref: 19
BOLT(8X50)
€ 3.00
20
083161008B
ref: 20
NUT
€ 3.00
