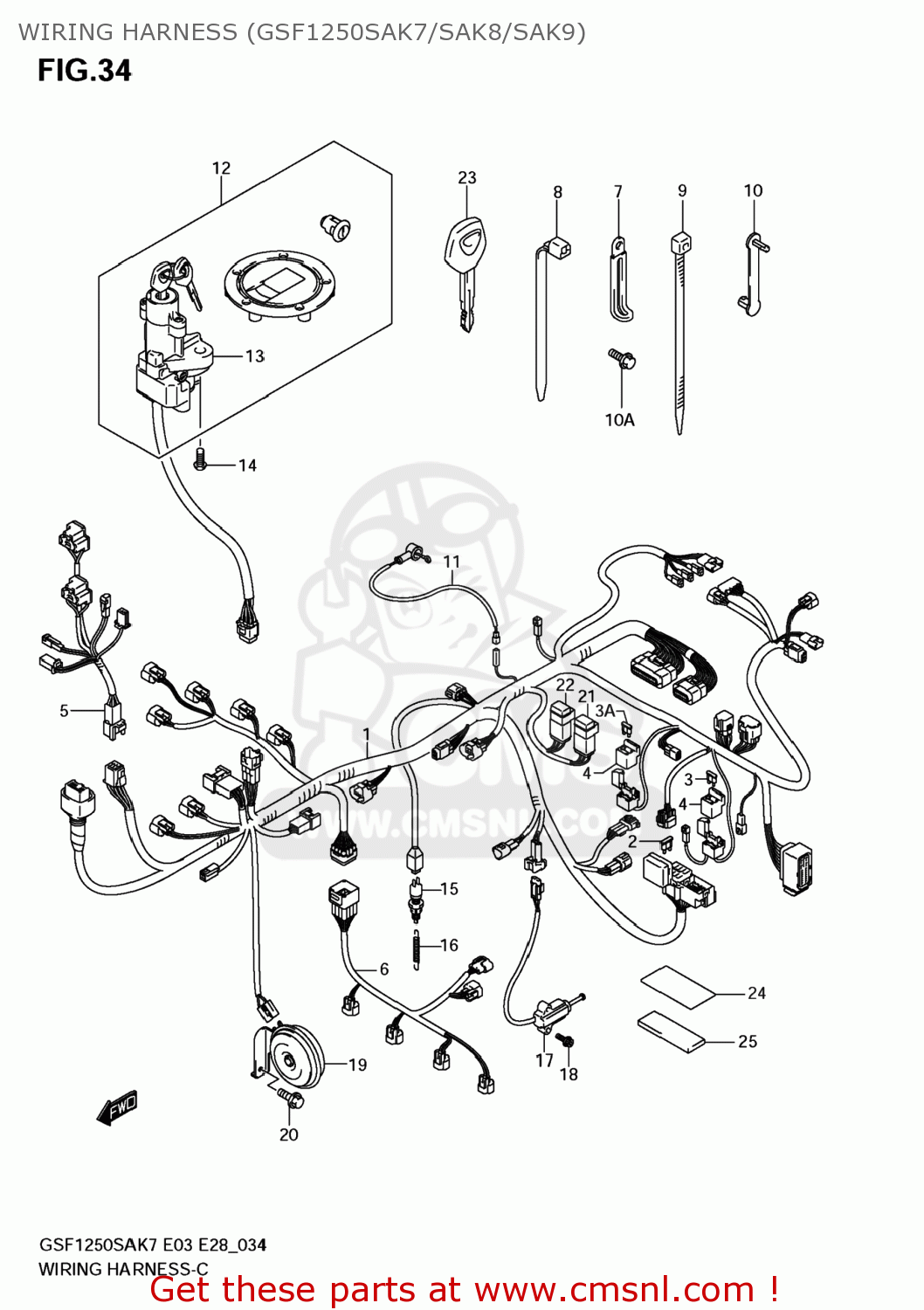

WIRING HARNESS (GSF1250SAK7/SAK8/SAK9)

ref

part #

description

quantity

1-2

3661018HH0
ref: 1-2

HARNESS,WIRING NO.1

€ 0.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

0948115101
ref: 3

FUSE(15A)

€ 1.50

3A

0948120101
ref: 3A

FUSE(20A)

€ 2.00

4

3674239D00
ref: 4

HOLDER,FUSE

€ 15.00

5

3662038G00
ref: 5

HARNESS,WIRING NO.2

€ 122.50

6

3685918H00
ref: 6

WIRE,INJECTOR LEAD

€ 109.00

7-1

0940406429
ref: 7-1

CLAMP(L:45)

€ 2.50

7-2

0940406433
ref: 7-2

CLAMP(L:80)

€ 3.00

8-1

0940711401
ref: 8-1

CLAMP(L:95)

€ 2.50

8-2

0940714403
ref: 8-2

CLAMP(L:125)

€ 2.50

8-3

0940718402
ref: 8-3

CLAMP(L:165)

€ 2.50

8-4

0940725401
ref: 8-4

CLAMP(L:235)

€ 4.00

9

0940714407
ref: 9

CLAMP(L:145)

€ 4.00

10

0940703401
ref: 10

CLAMP(L:33)

€ 3.50

10A

015500612A
ref: 10A

BOLT

€ 2.50

11

3685118H00
ref: 11

WIRE,OIL PRESSURE SWITCH LEAD

€ 14.50

12-2

3700049830
ref: 12-2
37000-49831

LOCK SET

€ 295.00

13

3710049G00
ref: 13
37100-49G01

LOCK ASSY,STEE

€ 165.00

14

0913908016
ref: 14

BOLT(8X20)

€ 3.50

15

3774024A00
ref: 15

SWITCH ASSY,STOP LAMP

€ 20.50

16

0944306054
ref: 16

SPRING

€ 2.50

17

3784025D00
ref: 17

SWITCH ASSY,SIDE STAND

€ 63.50

18

071200620B
ref: 18

BOLT

€ 3.50

19

3850018H00
ref: 19

HORN ASSY

€ 73.00

20

015500612B
ref: 20

BOLT

€ 2.50

21

3874024X50
ref: 21

RELAY ASSY

€ 37.50

22

3874024X50
ref: 22

RELAY ASSY

€ 37.50

23

3714633E00
ref: 23

KEY,BLANK

€ 13.00

24

6313110F00
ref: 24

TAPE,RR FENDER

€ 6.00

25

3365238A10
ref: 25
33652-07D00

PROTECTOR(20X90)X2

€ 4.50
