BATTERY

GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

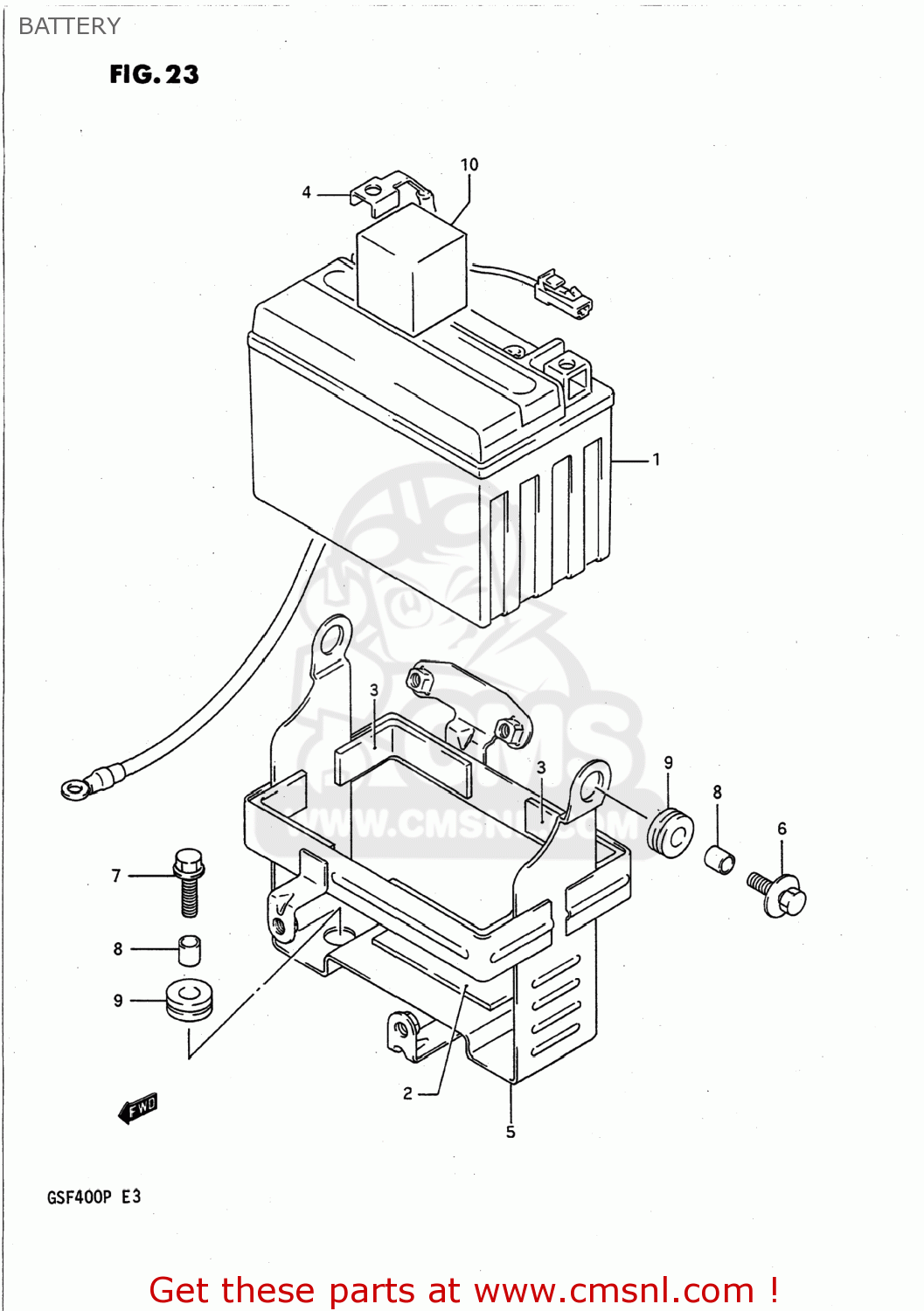

Battery diagram GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

3361010D00
ref: 1
33610-33E20

BATTERY ASSEMBLY (12V) YTX

€ 108.50

3365219B00
ref: 2

CUSHION,BATTERY(80X27X3)

€ 4.50

3-1

3365229100
ref: 3-1
33651-37000

PROTECTOR,20X9

€ 5.00

3-2

3365137000
ref: 3-2

PROTECTOR(170X95X3.0)

€ 5.00

3386010D00
ref: 4

WIRE,BATTERY MINUS LEAD

€ 16.50

5-1

4154010D00
ref: 5-1

HOLDER COMP,BATTERY

€ 38.50

5-2

4154010D02
ref: 5-2

HOLDER,BATTERY

€ 38.50

0911606083
ref: 6
09116-06167

BOLT

€ 2.00

0151706204
ref: 7
01550-0620A

BOLT 6X20

€ 2.50

0918006103
ref: 8

SPACER(6.2X9X7.5)

€ 1.50

0932008007
ref: 9
09320-08021

CUSHION

€ 4.00

4457610D00
ref: 10
33652-01D20

CUSHION,BATTERY 35X35X

€ 3.50

BATTERY

all assemblies
