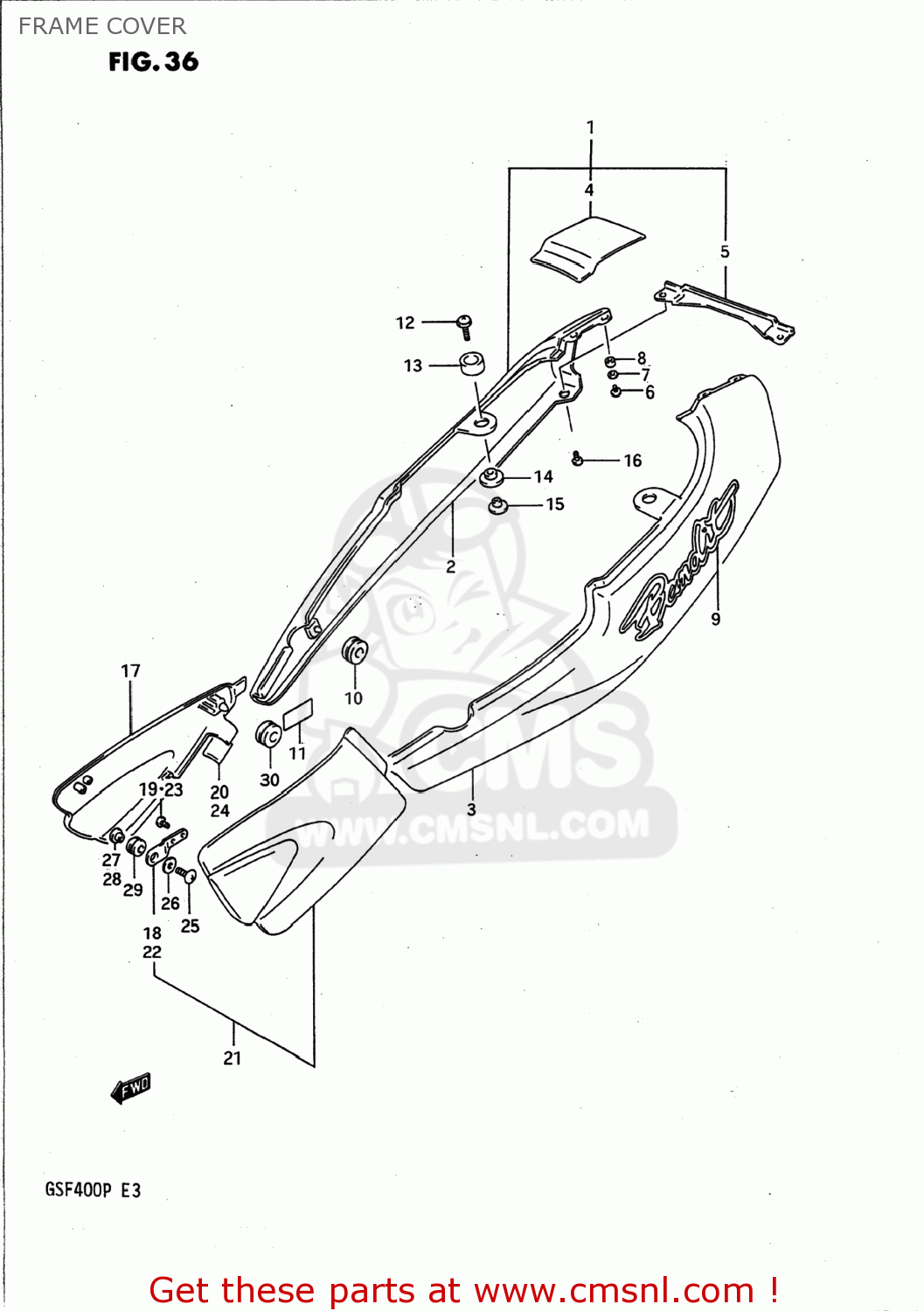

FRAME COVER

ref

part #

description

quantity

1-1

4710011D0002X
ref: 1-1
47100-11D00-019

COVER ASSEMBLY,FRAME,RIGHT

€ 305.00

1-2

4710011D00019
ref: 1-2

COVER ASSY,FRAME(BLACK)

€ 305.00

1-3

4710011D0024V
ref: 1-3

COVER ASSEMBLY,FRAME,RIGHT

€ 344.00

1-4

4710011D0021X
ref: 1-4
47100-11D00-07P

COVER ASSEMBLY,FRAME,RIGHT

€ 273.00

1-5

4710011D001TY
ref: 1-5
47100-10D01

COVER ASSEMBLY,FRAME,RIGHT

€ 203.00

1-6

4710011D000WP
ref: 1-6

COVER ASSEMBLY,FRAME,RIGHT

€ 203.00

2-1

4711110D00019
ref: 2-1

COVER,FRAME,RIGHT (BLACK)

€ 157.00

2-2

4711110D0024V
ref: 2-2

COVER,FRAME,RIGHT (BLUE)

€ 107.00

2-3

4711110D0007P
ref: 2-3

COVER,FRAME,R(RED)

€ 127.00

2-4

4711110D001TY
ref: 2-4

COVER,FRAME,R(RED)

€ 145.50

2-5

4711110D000WP
ref: 2-5

COVER,FRAME,R(GREEN)

€ 145.50

3-1

4721110D00019
ref: 3-1

COVER,FRAME,L(BLACK)

€ 123.00

3-2

4721110D0024V
ref: 3-2

COVER,FRAME,LEFT (BLUE )

€ 115.50

3-3

4721110D0007P
ref: 3-3

COVER,FRAME,LEFT (RED)

€ 137.50

3-4

4721110D001TY
ref: 3-4

COVER,FRAME,L(RED)

€ 145.50

3-5

4721110D000WP
ref: 3-5

COVER,FRAME,L(GREEN)

€ 167.50

4-1

4731110D00019
ref: 4-1

COVER,FRAME RR

€ 31.50

4-2

4731110D0024V
ref: 4-2

COVER,FRAME RR

€ 25.50

4-3

4731110D0007P
ref: 4-3

COVER,FRAME,REAR (RED)

€ 25.50

4-4

4731110D001TY
ref: 4-4

COVER,FRAME RR

€ 31.50

4-5

4731110D000WP
ref: 4-5

COVER,FRAME RR

€ 33.50

5-1

4741110D00019
ref: 5-1

COVER,FRAME,REAR,LOWER

€ 18.50

5-1

4741110D00019
ref: 5-1

COVER,FRAME,REAR,LOWER

€ 18.50

5-2

4741110D0024V
ref: 5-2
47411-10D00-34R

COVER,FRAME,REAR,LOWER

€ 18.50

5-2

4741110D0024V
ref: 5-2
47411-10D00-34R

COVER,FRAME,REAR,LOWER

€ 18.50

5-3

4741110D0007P
ref: 5-3

COVER,FRAME RR LWR

€ 26.50

5-4

4741110D001TY
ref: 5-4

COVER,FRAME RR UNDER

€ 18.50

5-5

4741110D000WP
ref: 5-5

COVER,FRAME,REAR,UNDER

€ 25.50

5-5

4741110D000WP
ref: 5-5

COVER,FRAME,REAR,UNDER

€ 25.50

6

0354104086
ref: 6
03541-0408A

SCREW

€ 2.00

7

0832221046
ref: 7
08322-0104A

WASHER

€ 5.00

8

4731510D00
ref: 8

SPACER,RR COVER

€ 3.50

9-1

6813111D003UJ
ref: 9-1

EMBLEM,FRAME COVER

€ 13.00

9-2

6813111D00G24
ref: 9-2

EMBLEM,FRAME COVER

€ 13.50

9-3

6813111D003WP
ref: 9-3

EMBLEM,FRAME COVER

€ 17.50

9-4

6813111D00N39
ref: 9-4

EMBLEM,FRAME COVER

€ 18.50

9-5

6813111D00B3J
ref: 9-5

EMBLEM,FRAME COVER

€ 18.50

10

0932008018
ref: 10

CUSHION

€ 4.00

11

4716110D00
ref: 11

PROTECTOR,FRAME COVER

€ 3.50

12

0913606082
ref: 12

SCREW(6X25)

€ 3.00

13

4514904A00
ref: 13

CUSHION,TAIL COVER UPR

€ 2.00

14

4532604A00
ref: 14

CUSHION,TAIL COVER LWR

€ 2.50

15

4553704A00
ref: 15

SPACER,SEAT TAIL COVER

€ 1.50

16

0913905047
ref: 16
02142-0520B

SCREW (5X20)
