HEADLAMP HOUSING

GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

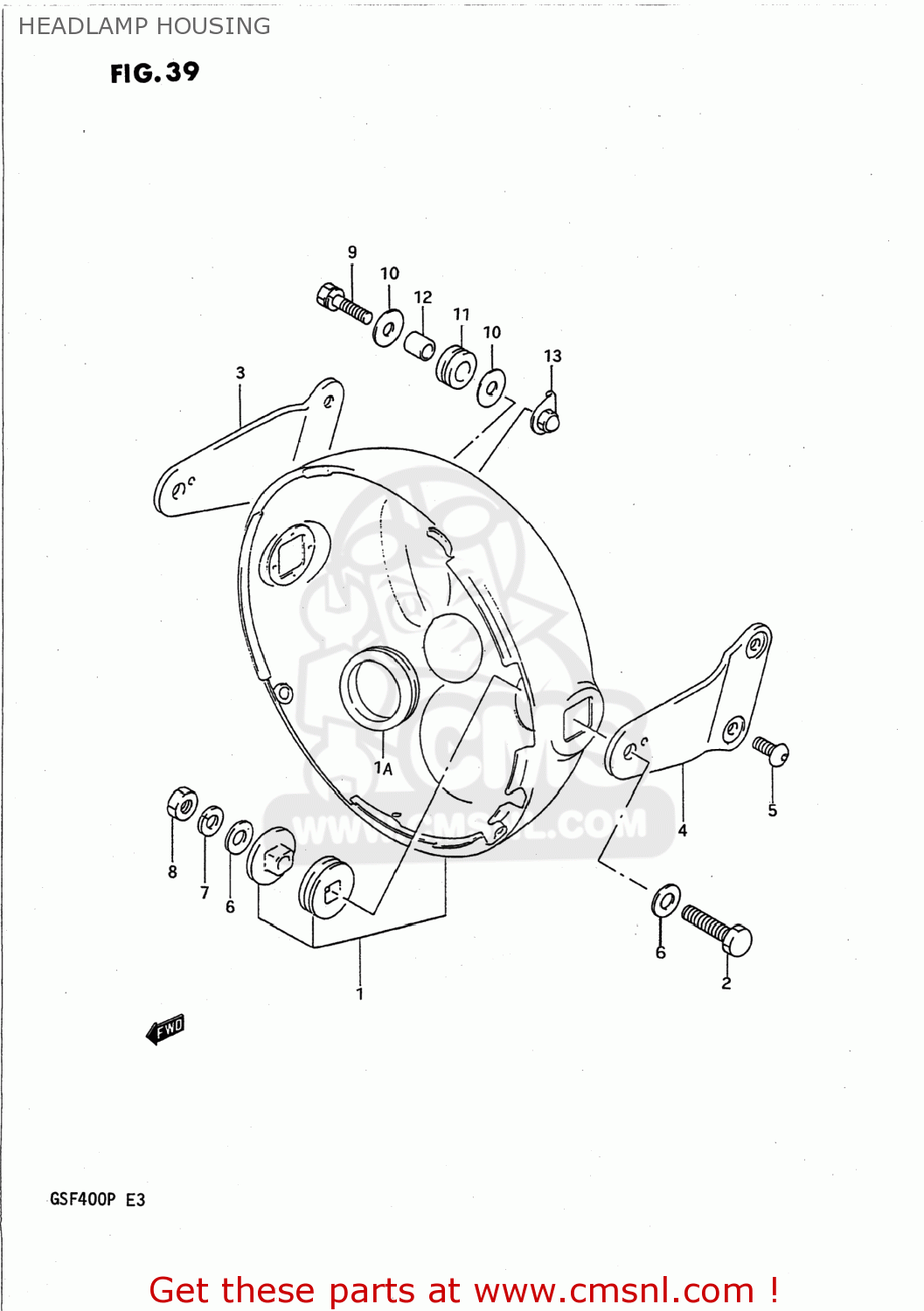

Headlamp housing diagram GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

5181701D00
ref: 1A
51817-01D01

GROMMET

€ 4.50

1-1

5181001D10
ref: 1-1
51810-01D11

HOUSING COMP,HEADLAMP

€ 124.00

1-2

5181001D11
ref: 1-2

HOUSING,HEADLAMP

€ 124.00

0120408307
ref: 2

BOLT

€ 2.50

5185110D00
ref: 3

STAY,HEADLAMP HOUSING,R

€ 47.00

5186110D00
ref: 4

STAY,HEADLAMP HOUSING,L

€ 53.00

0913906027
ref: 5

SCREW(6X12)

€ 3.00

0832211088
ref: 6
08322-01087

WASHER

€ 2.00

0832121088
ref: 7
08321-01087

LOCK WASHER

€ 2.00

0831012088
ref: 8
08310-00087

NUT

€ 2.00

0123406258
ref: 9
01234-0625A

BOLT

€ 1.50

0916006006
ref: 10
09160-06084

WASHER

€ 2.00

0932010015
ref: 11

CUSHION

€ 2.50

0918007004
ref: 12

SPACER(6.5X10.5X12)

€ 2.50

5181506C00
ref: 13

PLATE,HEADLAMP

€ 5.00

HEADLAMP HOUSING

all assemblies
