HEADLAMP (MODEL P)

GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

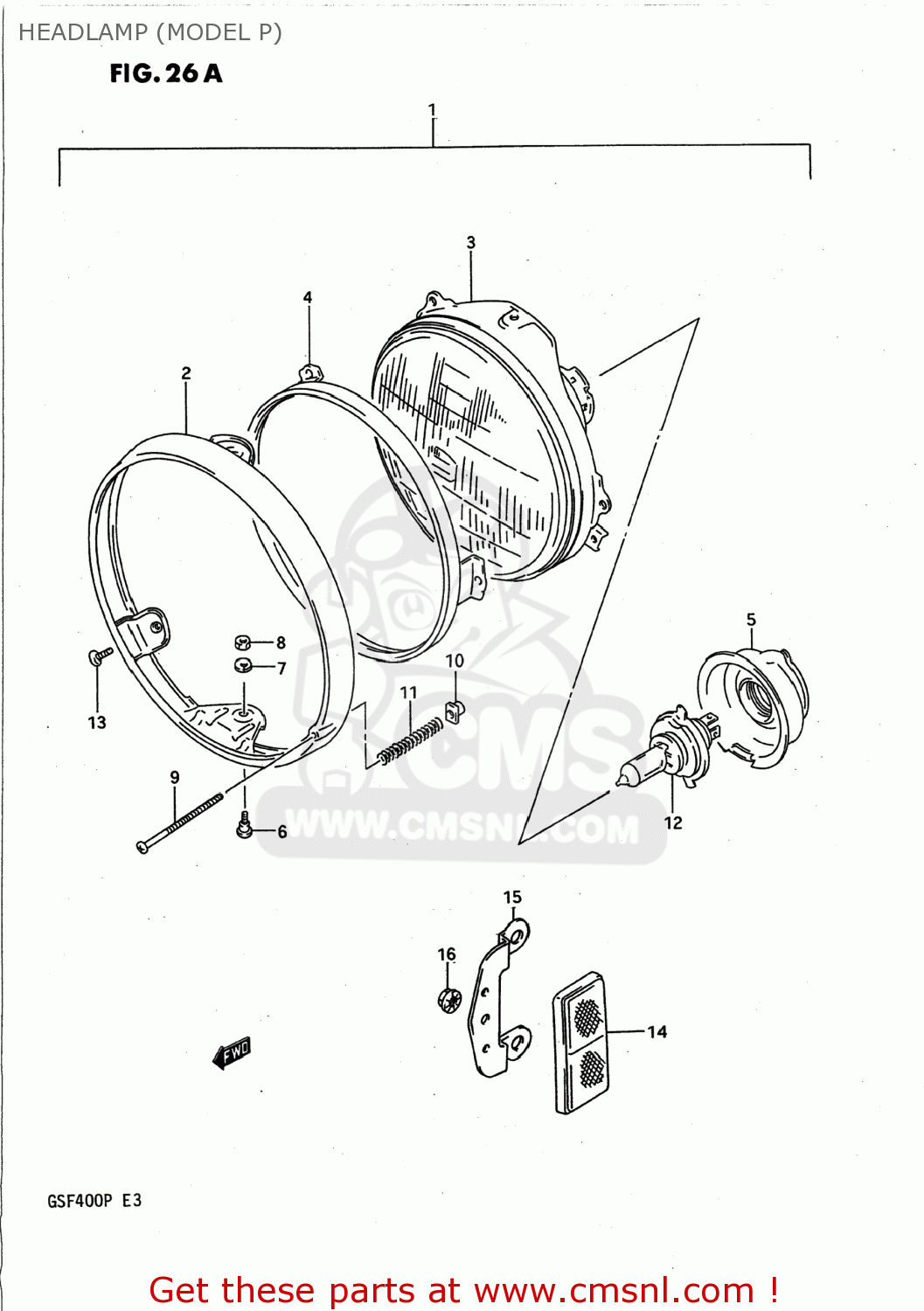

Headlamp (model p) diagram GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

3510010D30999
ref: 1
35100-10D70-999

HEADLAMP ASSEMBLY

€ 244.00

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3512110D30
ref: 3

LAMP UNIT

€ 113.00

3512745030
ref: 4

RETAINING RING

€ 19.50

3517320A01
ref: 5

COVER,SOCKET

€ 14.50

3518115611
ref: 6

H/LAMP LENS UNIT FITING SCRE

€ 3.00

0832121057
ref: 7
08321-0105A

LOCK WASHER

€ 2.00

0831011056
ref: 8
08310-0005A

NUT

€ 2.50

3515145030
ref: 9
35151-45900

SCREW,HEADLAMP ADJUST

€ 4.00

3515215611
ref: 10

NUT

€ 3.50

3515431900
ref: 11

SPRING,ADJUSTING

€ 3.50

0947112060
ref: 12

BULB(12V60/55W,H4)

€ 8.00

0213205127
ref: 13
02122-05127

SCREW 5X12

€ 2.50

3595043431
ref: 14

REFLEX REFLECTOR,FR SIDE

€ 12.00

3595610D00
ref: 15

BRACKET,FRONT SIDE REFLECTOR

€ 7.50

0831626055
ref: 16
08316-2005A

NUT

€ 2.00

HEADLAMP (MODEL P)
