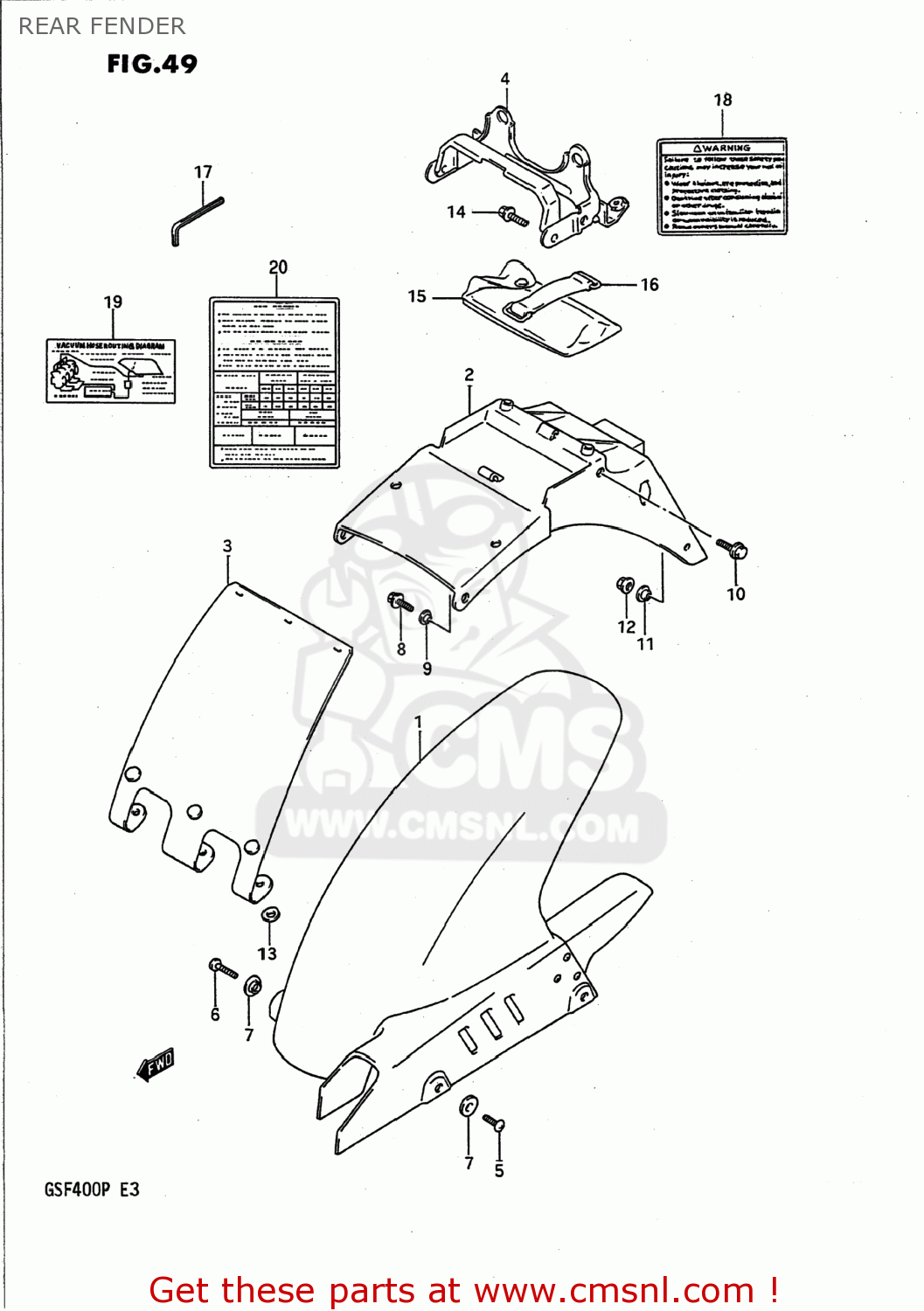

REAR FENDER

ref

part #

description

quantity

1-1

6311010D00
ref: 1-1
63110-10D11

FENDER,REAR

€ 104.50

1-2

6311010D01
ref: 1-2
63110-10D11

FENDER COMP,REAR,LOWER

€ 104.50

2

6311310D20
ref: 2

BODY,RR FENDER UPR

€ 84.00

3

6341010D00
ref: 3

MUDGUARD ASSY,RR FENDER

€ 38.00

4

4717010D10
ref: 4

BRACKET,FRAME COVER

€ 34.50

5

0214206125
ref: 5
02142-0612A

SCREW 6X12

€ 2.00

6

0214206164
ref: 6
02142-0616A

SCREW

€ 2.50

7

0916906026
ref: 7

WASHER

€ 2.00

8

0151706167
ref: 8
01550-06167

BOLT 6X16

€ 1.50

9

0916906053
ref: 9

WASHER

€ 2.00

10

0151708307
ref: 10
01550-08307

BOLT 8X30

€ 3.50

11

0916908034
ref: 11

WASHER

€ 2.00

12

0831616088
ref: 12
08316-10087

NUT

€ 2.50

13

0916006069
ref: 13
09160-06052

WASHER

€ 2.00

14

0151706167
ref: 14
01550-06167

BOLT 6X16

€ 1.50

15

0980020034
ref: 15
09800-21006

TOOL SET

€ 45.50

16

0946200034
ref: 16

BAND

€ 4.50

17

0981600103
ref: 17

SPANNER,HEXAGON(4)

€ 3.00

18

6831940C00
ref: 18
68319-33E01

LABEL

€ 8.00

19

6838710D10
ref: 19

LABEL (VACUUM HOSE ROUTING)

€ 0.00

20

6833210D11
ref: 20

LABEL (TIRE AIR PRESSURE)

€ 4.00
