REAR SWINGING ARM

GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

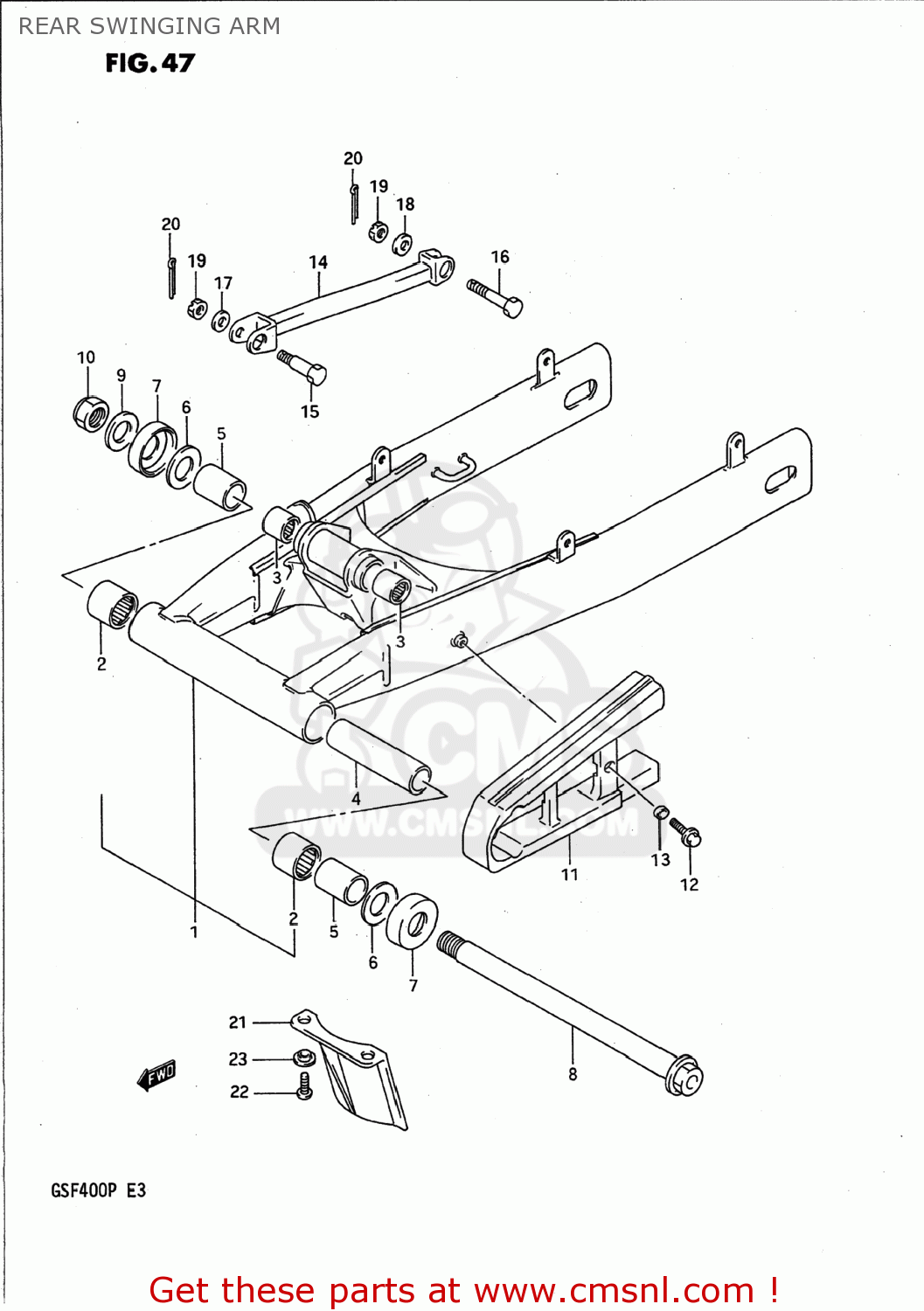

Rear swinging arm diagram GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

REAR SWINGING ARM GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
REAR SWINGING ARM GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
REAR SWINGING ARM GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
6100010D010FP
ref: 1-1
61000-10D10-13L
SWING ARM ASSEMBLY,REAR
€ 502.00
1-1
6100010D010FP
ref: 1-1
61000-10D10-13L
SWING ARM ASSEMBLY,REAR
€ 502.00
1-2
6100010D010NH
ref: 1-2
61000-10D10-0NH
SWING ARM ASSEMBLY,REAR
6100010D010NH
€ 617.00
1-2
6100010D010NH
ref: 1-2
61000-10D10-0NH
SWING ARM ASSEMBLY,REAR
6100010D010NH
€ 617.00
1-3
6100010D01019
ref: 1-3
61000-10D10-019
SWING ARM ASSEMBLY,REAR
€ 502.00
1-3
6100010D01019
ref: 1-3
61000-10D10-019
SWING ARM ASSEMBLY,REAR
€ 502.00
1-4
6100010D010WP
ref: 1-4
61000-10D10-0WP
SWING ARM ASSEMBLY,REAR
€ 502.00
1-4
6100010D010WP
ref: 1-4
61000-10D10-0WP
SWING ARM ASSEMBLY,REAR
€ 502.00
1-5
6100010D10019
ref: 1-5
SWING ARM ASSEMBLY,REAR
6100010D10019
€ 502.00
1-5
6100010D10019
ref: 1-5
SWING ARM ASSEMBLY,REAR
6100010D10019
€ 502.00
1-6
6100010D100WP
ref: 1-6
SWING ARM ASSEMBLY,REAR
6100010D100WP
€ 502.00
1-6
6100010D100WP
ref: 1-6
SWING ARM ASSEMBLY,REAR
6100010D100WP
€ 502.00
1-7
6100010D101UG
ref: 1-7
SWING ARM ASSEMBLY,REAR
€ 502.00
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
0918020108
ref: 4
SPACER(20.8X27.2X146)
0918020108
€ 21.50
5
6125117C00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
6125117C00
€ 36.00
6
0821120381
ref: 6
WASHER
0821120381
€ 3.00
7
6126210D00
ref: 7
COVER,RR SWGARM PIVOT SEAL
6126210D00
€ 9.00
8
6121106C01
ref: 8
SHAFT,RR SWINGINGARM PIVOT
6121106C01
€ 43.00
9
0832211188
ref: 9
08322-0118B
WASHER
0832211188
€ 2.50
10
0915918007
ref: 10
NUT
0915918007
€ 14.00
11
6127310D01
ref: 11
BUFFER,CHAIN TOUCH DEFENCE
6127310D01
€ 28.50
12
0911606111
ref: 12
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
13
0918006142
ref: 13
09180-06255
SPACER
0918006142
€ 1.50
14-1
6431010D000FP
ref: 14-1
64310-10D00-019
TORQUE LINK,REAR
€ 26.50
14-2
6431010D000NH
ref: 14-2
64310-10D00-019
TORQUE LINK,REAR
€ 26.50
14-3
6431010D00019
ref: 14-3
TORQUELINK,RR
6431010D00019
€ 26.50
14-3
6431010D00019
ref: 14-3
TORQUELINK,RR
6431010D00019
€ 26.50
14-4
6431010D000WP
ref: 14-4
64310-10D00-019
TORQUE LINK,REAR
€ 26.50
15
0911110011
ref: 15
09111-10022-XC0
BOLT
0911110011
€ 8.00
16
0910110036
ref: 16
BOLT(10X35)
0910110036
€ 4.50
17
0916010057
ref: 17
09160-10142
WASHER
0916010057
€ 2.00
18
0916010069
ref: 18
09160-10005
WASHER (10X18X3.2)
€ 2.00
19
0831441108
ref: 19
08314-4010B
NUT
0831441108
€ 2.50
20
0411120208
ref: 20
04111-2020A
PIN 20X20
0411120208
€ 1.50
21
6341142A00
ref: 21
63411C42A00J000
GUARD,RR UNIT MUD
6341142A00
€ 3.50
21
6341142A00
ref: 21
63411C42A00J000
GUARD,RR UNIT MUD
6341142A00
€ 3.50
22
0214206167
ref: 22
SCREW
0214206167
€ 2.00
23
0916906025
ref: 23
09169-06010
WASHER,LOCK
€ 3.00
