WIRING HARNESS

GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

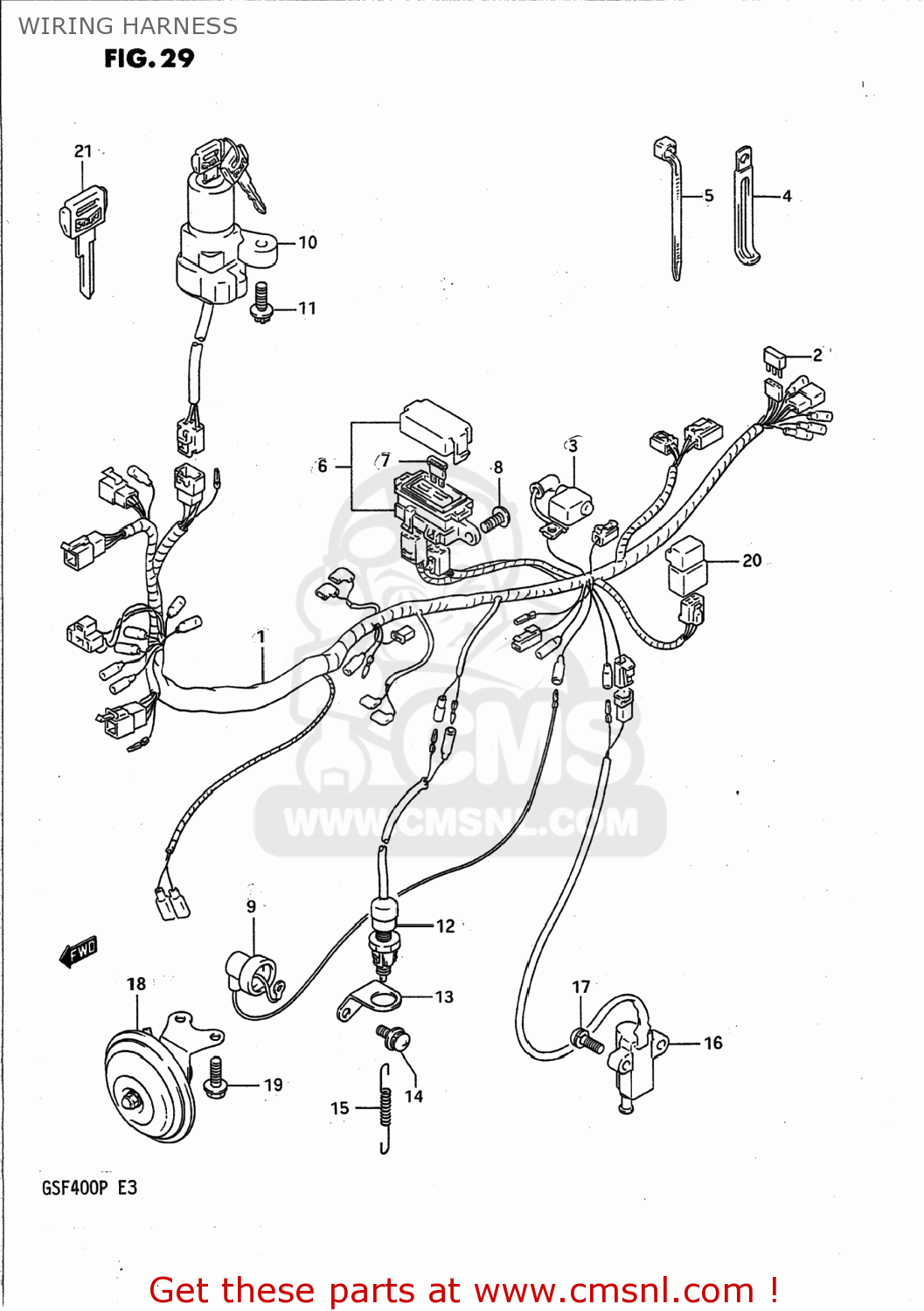

Wiring harness diagram GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

WIRING HARNESS GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
WIRING HARNESS GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
WIRING HARNESS GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
3661010D30
ref: 1-1
36610-10D42
HARNESS,WIRING
€ 300.50
1-2
3661010D21
ref: 1-2
36610-10D42
HARNESS,WIRING
€ 300.50
1-3
3661033D30
ref: 1-3
HARNESS,WIRING
€ 0.00
1-4
3661033D40
ref: 1-4
HARNESS,WIRING
€ 346.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3362410D00
ref: 3
CAP,BATTERY PLUS
€ 4.00
4-1
0940406403
ref: 4-1
09404-06432
CLAMP
€ 2.50
4-2
0940406412
ref: 4-2
09404-06432
CLAMP
0940406412
€ 2.50
4-3
0940406415
ref: 4-3
09404-06433
CLAMP
€ 3.00
4-4
0940406419
ref: 4-4
09404-06435
CLAMP
€ 2.50
4-5
0940406420
ref: 4-5
CLAMP
€ 2.50
4-6
0940408404
ref: 4-6
09404-08420
CLAMP
€ 3.00
4-7
0940410405
ref: 4-7
09404-10418
CLAMP
€ 2.00
5-1
0940710401
ref: 5-1
09407-10404
CLAMP
€ 3.00
5-2
0940710403
ref: 5-2
CLAMP(L:95)
€ 2.50
5-3
0940710404
ref: 5-3
CLAMP(L:100)
0940710404
€ 4.00
5-4
0940714403
ref: 5-4
CLAMP(L:125)
0940714403
€ 2.50
5-5
0940714410
ref: 5-5
09407-17402
CLAMP
€ 5.00
5-6
0940718402
ref: 5-6
CLAMP(L:165)
0940718402
€ 2.50
6
3674034C01
ref: 6
36740-10D10
BOX ASSEMBLY,FUSE
3674034C01
€ 58.50
7-1
0948110101
ref: 7-1
FUSE(10A)
0948110101
€ 2.50
7-2
0948125101
ref: 7-2
09481-25103
FUSE (25A)
0948125101
€ 2.50
8
0214206166
ref: 8
02142-0616A
SCREW
€ 2.50
9
3685110D00
ref: 9
36851-46E00
WIRE
€ 14.00
10-1
3710017C02
ref: 10-1
37100-26D03
LOCK ASSEMBLY,STEERING
3710017C02
€ 134.00
10-2
3710033D00
ref: 10-2
37100-26D03
LOCK ASSEMBLY,STEERING
3710033D00
€ 134.00
11
0913906026
ref: 11
SCREW(6X18)
0913906026
€ 2.50
12
3774014A00
ref: 12
37740-04A10
SWITCH ASSEMBLY,STOP LAMP
3774014A00
€ 22.00
13
4325110D00
ref: 13
BRACKET,STOP LAMP SWITCH
€ 3.50
14
0211276088
ref: 14
SCREW
€ 2.00
15
0944306012
ref: 15
SPRING
0944306012
€ 3.00
16
3784048B21
ref: 16
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
3784048B21
€ 76.00
17
0151706204
ref: 17
01550-0620A
BOLT 6X20
0151706204
€ 2.50
18-1
3850010D00
ref: 18-1
38500-47D01
HORN ASSEMBLY
€ 49.00
18-2
3850011D00
ref: 18-2
38500-47D01
HORN ASSEMBLY
€ 49.00
19
0111706165
ref: 19
01550-0616A
BOLT
€ 2.50
20
3874024B10
ref: 20
38740-24X50
RELAY ASSEMBLY
3874024B10
€ 37.50
21-1
3714603A80
ref: 21-1
37146-26D10
KEY,BLANK
€ 41.50
21-2
3714626D10
ref: 21-2
KEY,BLANK
3714626D10
€ 41.50
