ELECTRICAL

GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

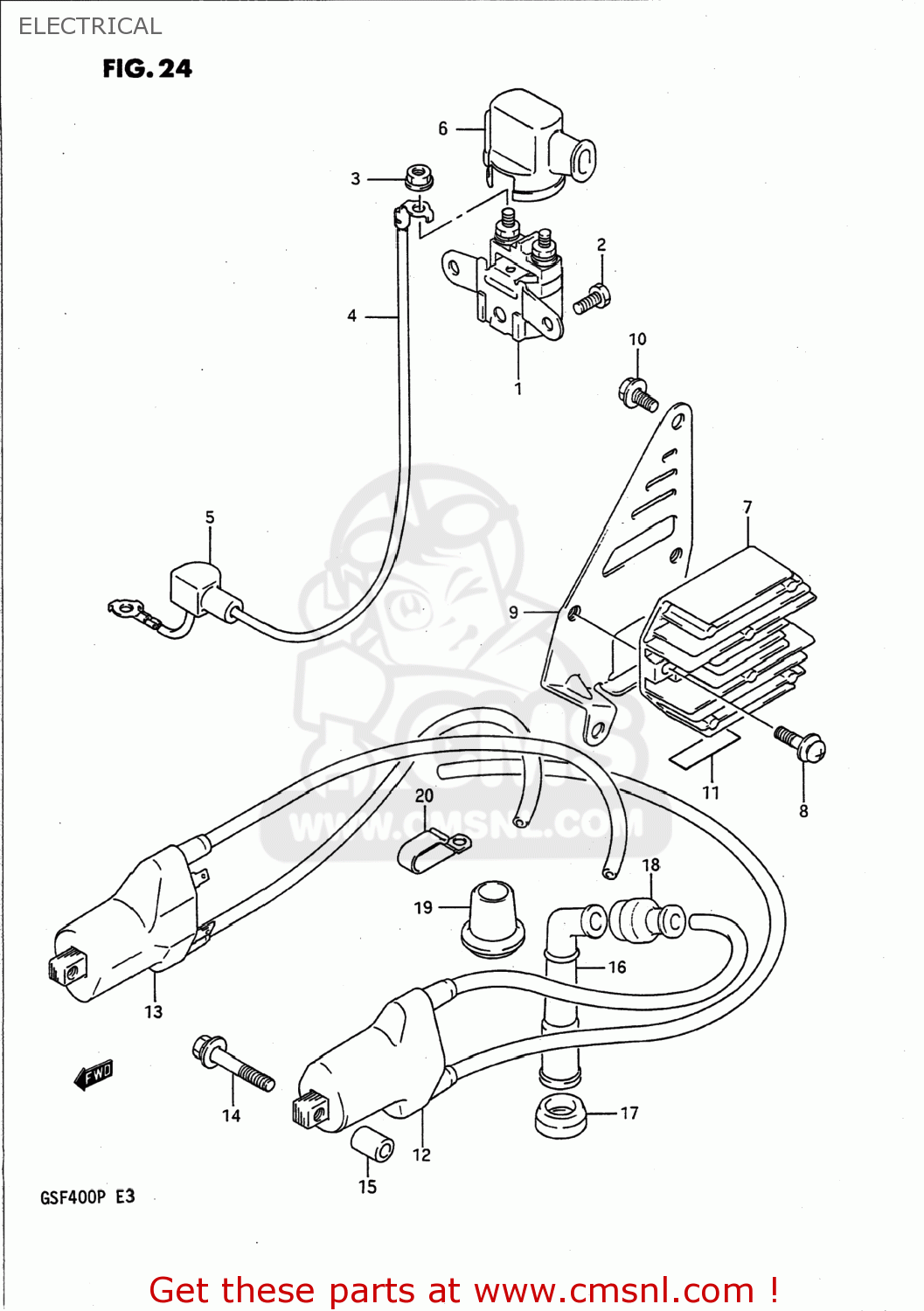

Electrical diagram GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)

ELECTRICAL GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
ELECTRICAL GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
ELECTRICAL GSF400 BANDIT 1992 (N) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
0912806004
ref: 2
09128-06044
SCREW(6X10)
0912806004
€ 1.50
3
0836135066
ref: 3
08361-3506A
NUT
€ 2.00
4-1
3385010D00
ref: 4-1
33850-04A00
WIRE,STARTER MOTOR LEAD
€ 34.50
4-2
3385010D01
ref: 4-2
33850-04A00
WIRE,STARTER MOTOR LEAD
€ 34.50
5
3186106C00
ref: 5
CAP,STARTER MOTOR TERMINAL
3186106C00
€ 3.00
6
3186110D10
ref: 6
CAP,STARTER RELAY
3186110D10
€ 6.50
7-1
3280030B01
ref: 7-1
32800-33C01
RECTIFIER ASSY
€ 368.00
7-2
3280033C00
ref: 7-2
32800-33C01
RECTIFIER ASSEMBLY
€ 368.00
8-1
0211216205
ref: 8-1
02112-1620B
SCREW
€ 2.50
8-2
0215206205
ref: 8-2
02112-0620A
SCREW
€ 2.00
9
4156010D00
ref: 9
BRACKET,RECTIFIER
€ 22.50
10
0151706128
ref: 10
01550-06127
BOLT
€ 2.50
11
3285110D00
ref: 11
PROTECTOR(12X40)
3285110D00
€ 4.50
12
3341010D00
ref: 12
33410-32X50
COIL ASSEMBLY,IGNITION
€ 192.50
13
3342034C00
ref: 13
COIL ASSY,IGNITION 2-3
3342034C00
€ 147.50
14
0117406356
ref: 14
01580-0635B
BOLT
€ 3.50
15
0918006198
ref: 15
SPACER(6.2X12X16)
0918006198
€ 3.50
16
3351048B10
ref: 16
CAP,SPARK PLUG
3351048B10
€ 29.50
17
3354127A22
ref: 17
33541-23E01
SEAL,SPARK PLUG
3354127A22
€ 7.00
18
3354238B00
ref: 18
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
19
3354332C00
ref: 19
33543-32C01
COVER,SPARK PLUG CAP
€ 26.50
20
0940306307
ref: 20
CLAMP
0940306307
€ 4.50
