AIR CLEANER

GSF600S BANDIT 2003 (K3) USA (E03)

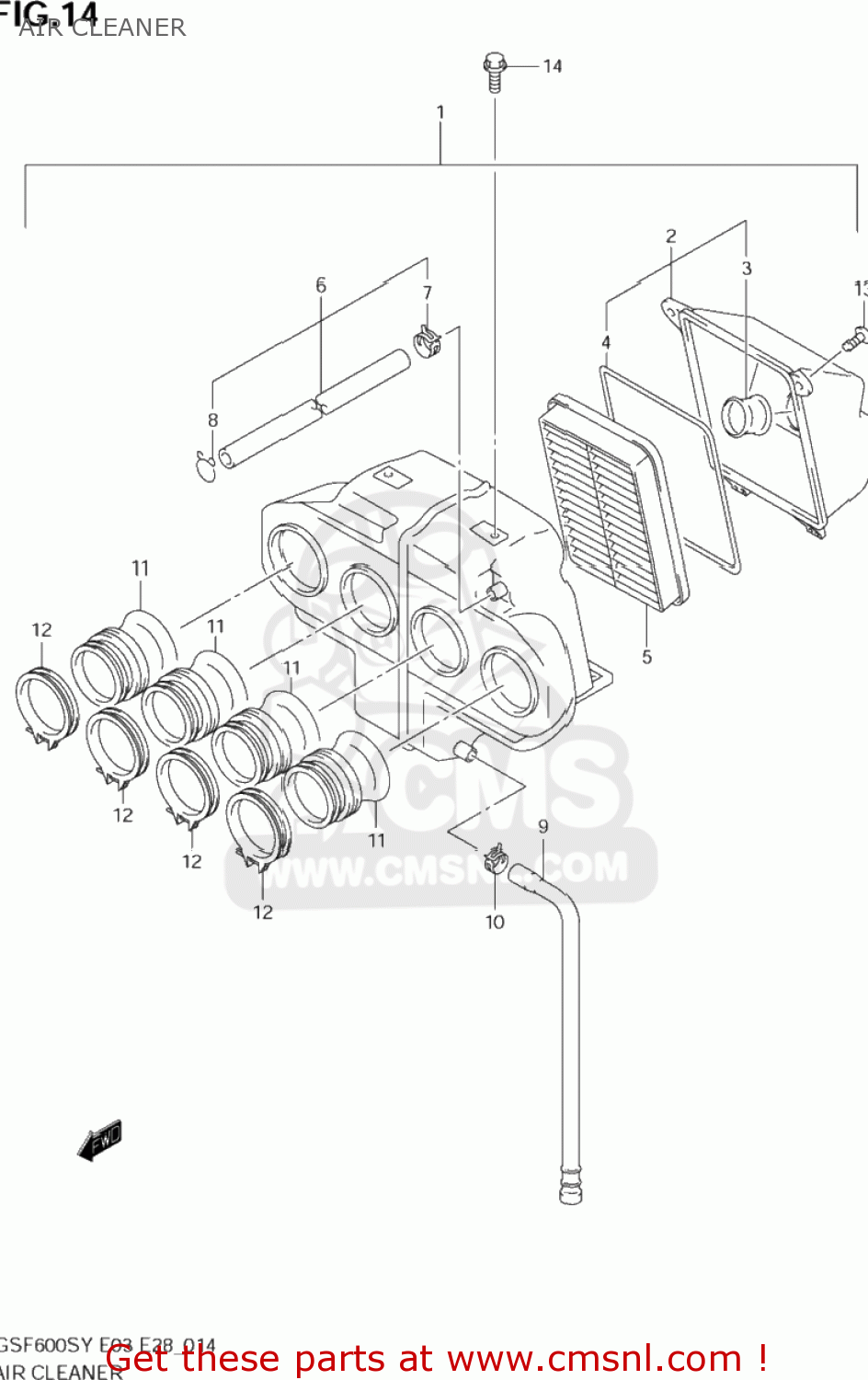

Air cleaner diagram GSF600S BANDIT 2003 (K3) USA (E03)

AIR CLEANER GSF600S BANDIT 2003 (K3) USA (E03)

AIR CLEANER GSF600S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370031F00
ref: 1

CLEANER ASSY,AIR

€ 229.50

2

1374031F00
ref: 2

CAP,AIR CLEANER

€ 43.00

3

1389117E00
ref: 3

TUBE,INLET

€ 22.50

4

1374631F00
ref: 4

GASKET,AIR CLEANER CAP (NAS)

€ 5.50

5

1378031F00
ref: 5

FILTER,AIR

€ 25.50

6

1385031F00
ref: 6

TUBE,BREATHER

€ 19.50

7

0940114404
ref: 7

CLIP

€ 2.00

8

0940116401
ref: 8

CLIP

€ 3.00

9

1387021458
ref: 9

TUBE,DRAIN

€ 23.50

10

0940113417
ref: 10

CLIP

€ 2.50

11

1388131F00
ref: 11

TUBE,OUTLET

€ 19.50

12

0940256208
ref: 12
09402-56901

CLAMP

€ 3.50

13

0214205123
ref: 13
02142-0512A

SCREW 5X12

€ 1.50

14

0155006123
ref: 14
01550-0612A

BOLT

€ 2.50
