STARTING MOTOR

GSF600S BANDIT 2003 (K3) USA (E03)

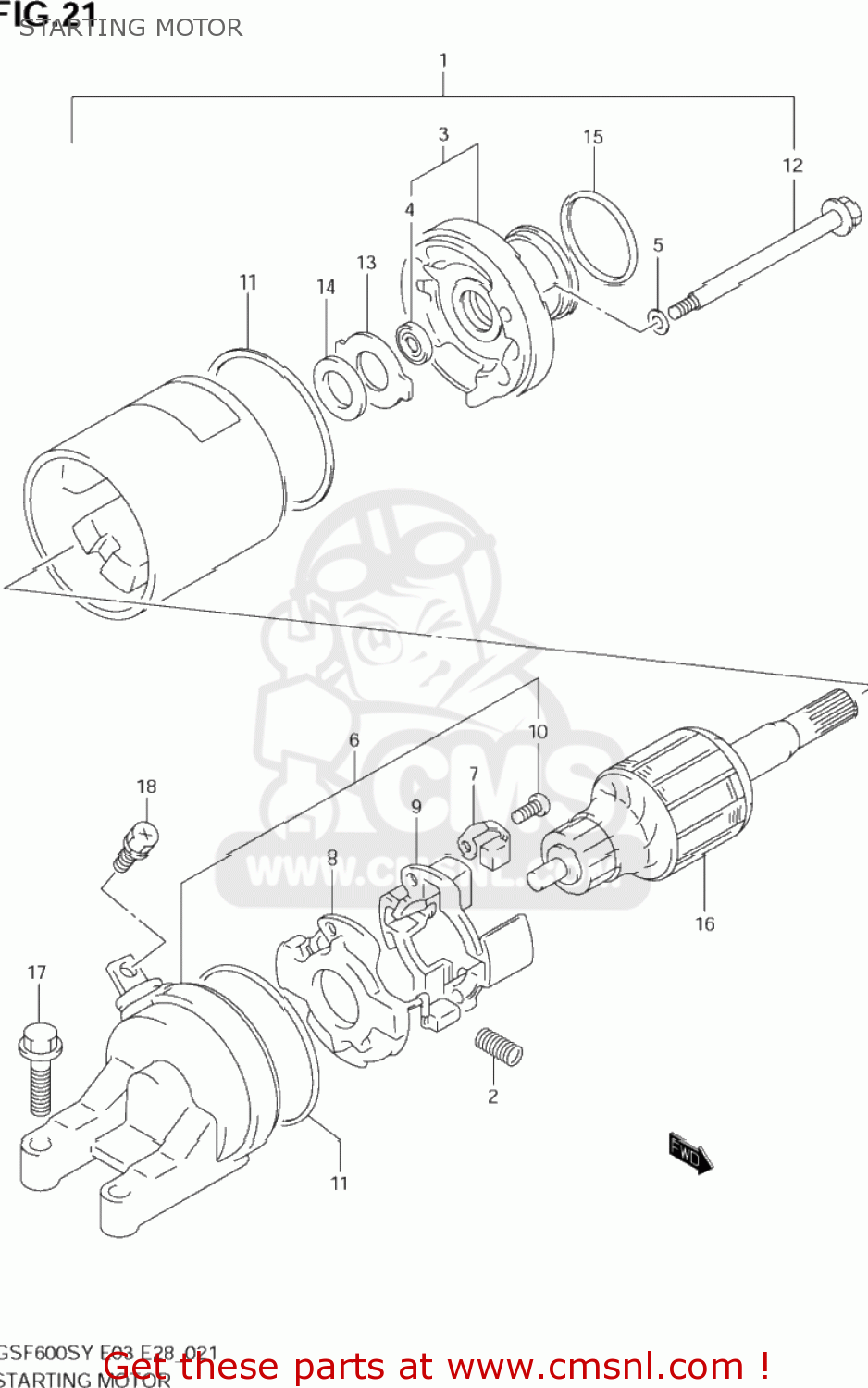

Starting motor diagram GSF600S BANDIT 2003 (K3) USA (E03)

STARTING MOTOR GSF600S BANDIT 2003 (K3) USA (E03)

STARTING MOTOR GSF600S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110008F00
ref: 1

MOTOR ASSY,STARTING

€ 999.00

2

3113532C10
ref: 2

SPRING

€ 3.50

3

3115008F00
ref: 3

BRACKET

€ 87.50

4

3115349210
ref: 4

SEAL,OIL

€ 15.00

5

3115608F00
ref: 5

O RING

€ 3.00

6

3117508F00
ref: 6

FRAME ASSY,COMMUTATOR

€ 143.50

7

3113232C10
ref: 7

BRUSH

€ 14.50

8

3113032C20
ref: 8

BRUSH SUB ASSY,STARTER

€ 28.00

9

3113332C10
ref: 9

HOLDER,BRUSH

€ 9.00

10

0211234123
ref: 10
02112-3412B

SCREW

€ 2.00

11

3126432C10
ref: 11

O RING

€ 9.00

12

3128132C10
ref: 12

BOLT

€ 8.50

13

3136132C10
ref: 13

PLATE,LOCK

€ 2.50

14

3136138300
ref: 14

SHIM

€ 1.50

15

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00

16

3131032C10
ref: 16

ARMATURE

€ 283.00

17

0912806024
ref: 17
09103-06212

SCREW (6X25)

€ 2.50

18

0913705004
ref: 18

SCREW(5X8)

€ 2.00
