FRAME COVER (MODEL Y/K1)

GSF600S BANDIT 2003 (K3) USA (E03)

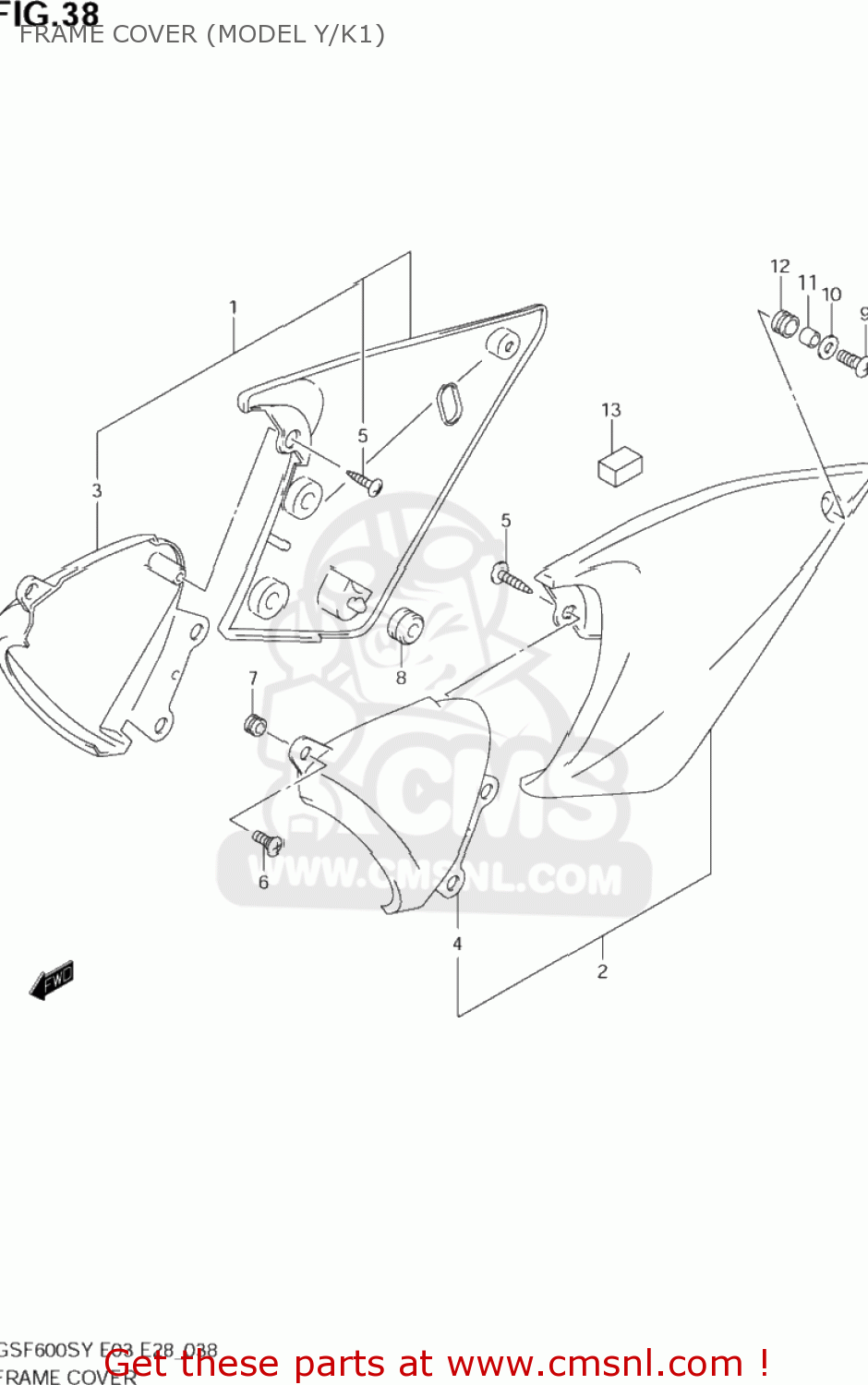

Frame cover (model y/k1) diagram GSF600S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

4711031F0035W
ref: 1

COVER,FRAME,R(GRAY)

€ 86.00

2-1

4721031F0035W
ref: 2-1
47210-31F01-35W

COVER COMP,FRAME,LEFT

€ 91.00

2-2

4721031F0135W
ref: 2-2

COVER,FRAME,L(GRAY)

€ 91.00

4712131F00
ref: 3

COVER,FRAME FR,R

€ 32.50

4-1

4722131F00
ref: 4-1
47221-31F01

COVER,FRAME,FRONT,LEFT

€ 33.50

4-2

4722131F01
ref: 4-2

COVER,FRAME FR,L

€ 33.50

0354115123
ref: 5
03541-1512B

SCREW

€ 2.50

4715531F00
ref: 6
09139-05070

SCREW,FRAME COVER,FRONT

€ 7.00

4782231F00
ref: 7

CUSHION,FRAME COVER FR

€ 6.00

0932008018
ref: 8

CUSHION

€ 4.00

0913906030
ref: 9

SCREW(6X16)

€ 3.50

0916006028
ref: 10

WASHER(6.5X18X1)

€ 1.50

0918006263
ref: 11

SPACER(6.5X9X9)

€ 2.00

0932009016
ref: 12

CUSHION

€ 2.50

4716104A00
ref: 13
47191-22D00

PAD,HEAD COVER CAP

€ 3.00
