STARTER CLUTCH

GSF600S BANDIT 2003 (K3) USA (E03)

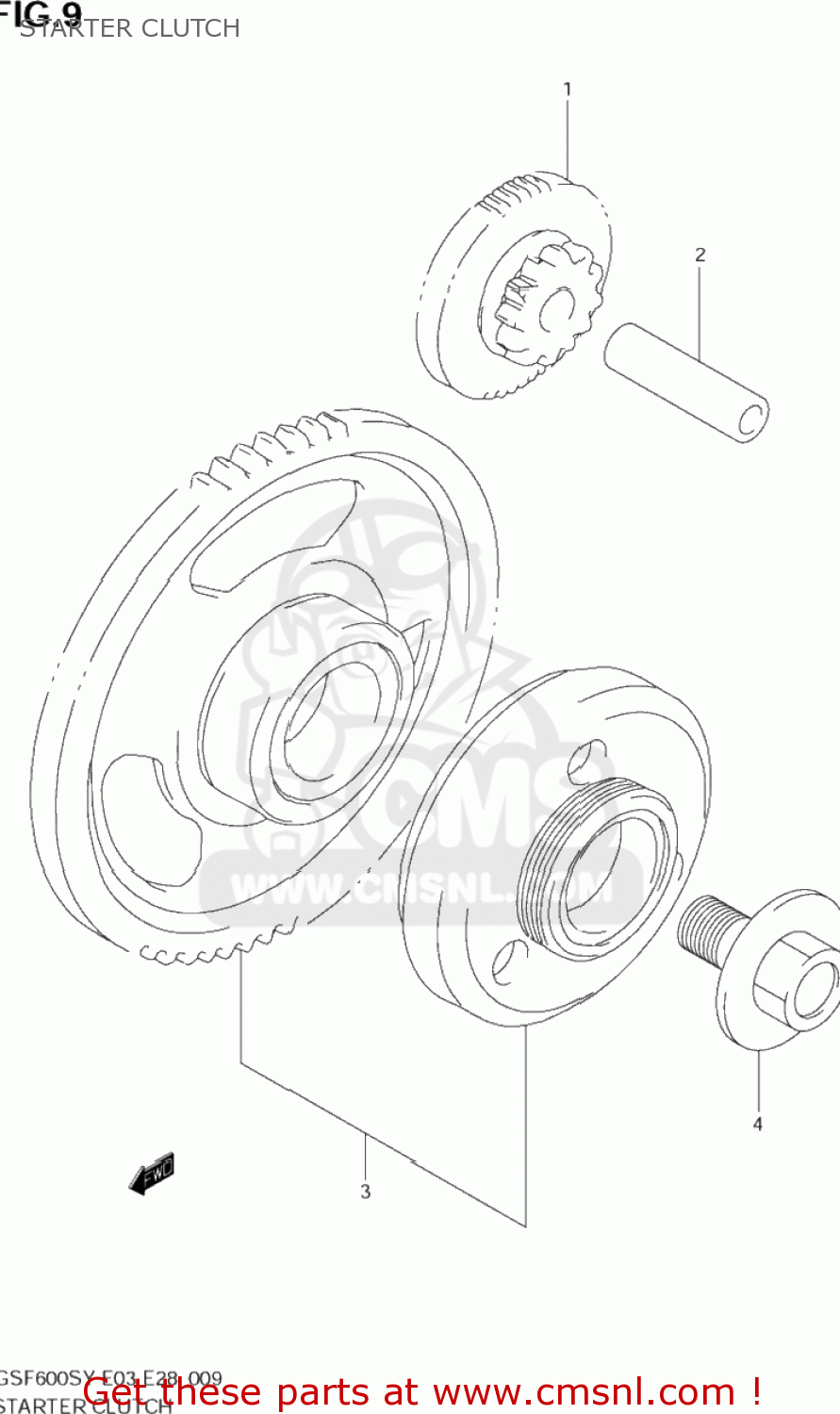

Starter clutch diagram GSF600S BANDIT 2003 (K3) USA (E03)

STARTER CLUTCH GSF600S BANDIT 2003 (K3) USA (E03)

STARTER CLUTCH GSF600S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261103FA0
ref: 1

GEAR,STARTER IDLE

€ 47.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3
12600-48813

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
