FRONT FORK DAMPER (MODEL K3)

GSF600S BANDIT 2003 (K3) USA (E03)

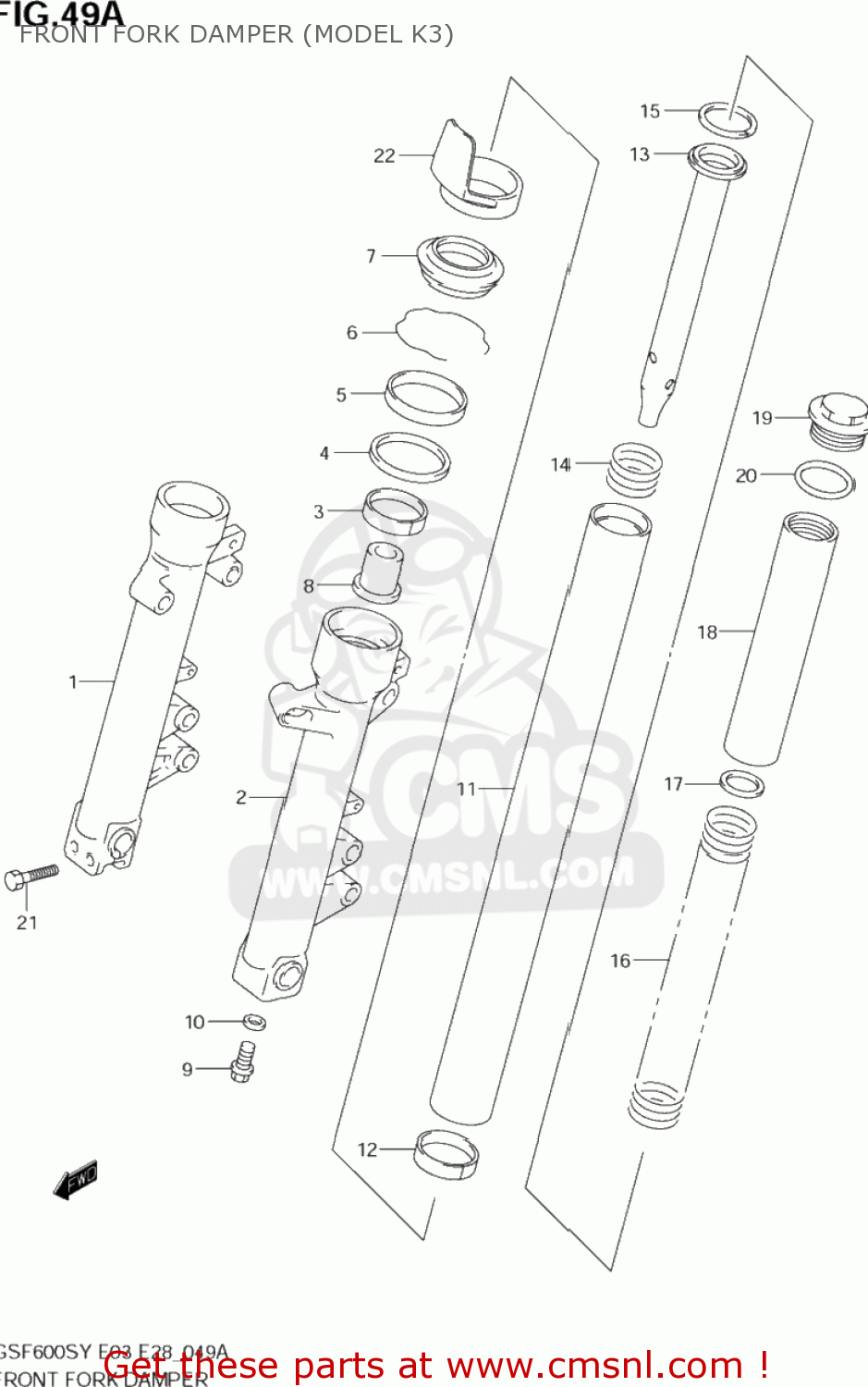

Front fork damper (model k3) diagram GSF600S BANDIT 2003 (K3) USA (E03)

FRONT FORK DAMPER (MODEL K3) GSF600S BANDIT 2003 (K3) USA (E03)
FRONT FORK DAMPER (MODEL K3) GSF600S BANDIT 2003 (K3) USA (E03)
FRONT FORK DAMPER (MODEL K3) GSF600S BANDIT 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity

5110331F50
ref:
DAMPER ASSY,FR FORK,R
€ 0.00

5110431F50
ref:
DAMPER ASSY,FR FORK,L
€ 0.00
1
5113031F00
ref: 1
TUBE,OUTER,R
€ 469.50
2
5114031F00
ref: 2
TUBE,OUTER,L
€ 429.50
3
5116726E10
ref: 3
METAL,SLIDE
5116726E10
€ 20.50
4
5115805A00
ref: 4
WASHER,FORK OIL SEAL
5115805A00
€ 5.00
5
5115314F00
ref: 5
SEAL,OIL
5115314F00
€ 25.00
6
5115649440
ref: 6
RING,OIL SEAL STOPPER
5115649440
€ 5.50
7
5117314F00
ref: 7
SEAL,DUST
5117314F00
€ 18.50
8
5119533D10
ref: 8
PIECE,OIL LOCK
5119533D10
€ 18.00
9
5114716510
ref: 9
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
10
5114841310
ref: 10
GASKET (NAS)
5114841310
€ 2.50
11
5111031F00
ref: 11
TUBE,INNER
€ 506.50
12
5112133D10
ref: 12
PISTON
5112133D10
€ 11.00
13
5114631F00
ref: 13
CYLINDER
€ 100.50
14
5117706C00
ref: 14
SPRING,REBOUND
5117706C00
€ 10.50
15
5119631F00
ref: 15
RING,PISTON
5119631F00
€ 7.00
16
5117131F10
ref: 16
SPRING,FR
5117131F10
€ 68.00
17
5135610D03
ref: 17
WASHER(22.5X35.9X1.6)
5135610D03
€ 3.00
18
5117614A20
ref: 18
SPACER,SPRING
5117614A20
€ 11.00
19
5135131F40
ref: 19
CAP,FORK
€ 28.00
20
0928032001
ref: 20
O RING(D:3.5,ID:31.7)
0928032001
€ 2.00
21
0155008457
ref: 21
BOLT
0155008457
€ 4.00
22
5120131F00
ref: 22
PROTECTOR
5120131F00
€ 13.50
