TRANSMISSION
GSF600S BANDIT 2003 (K3) USA (E03)

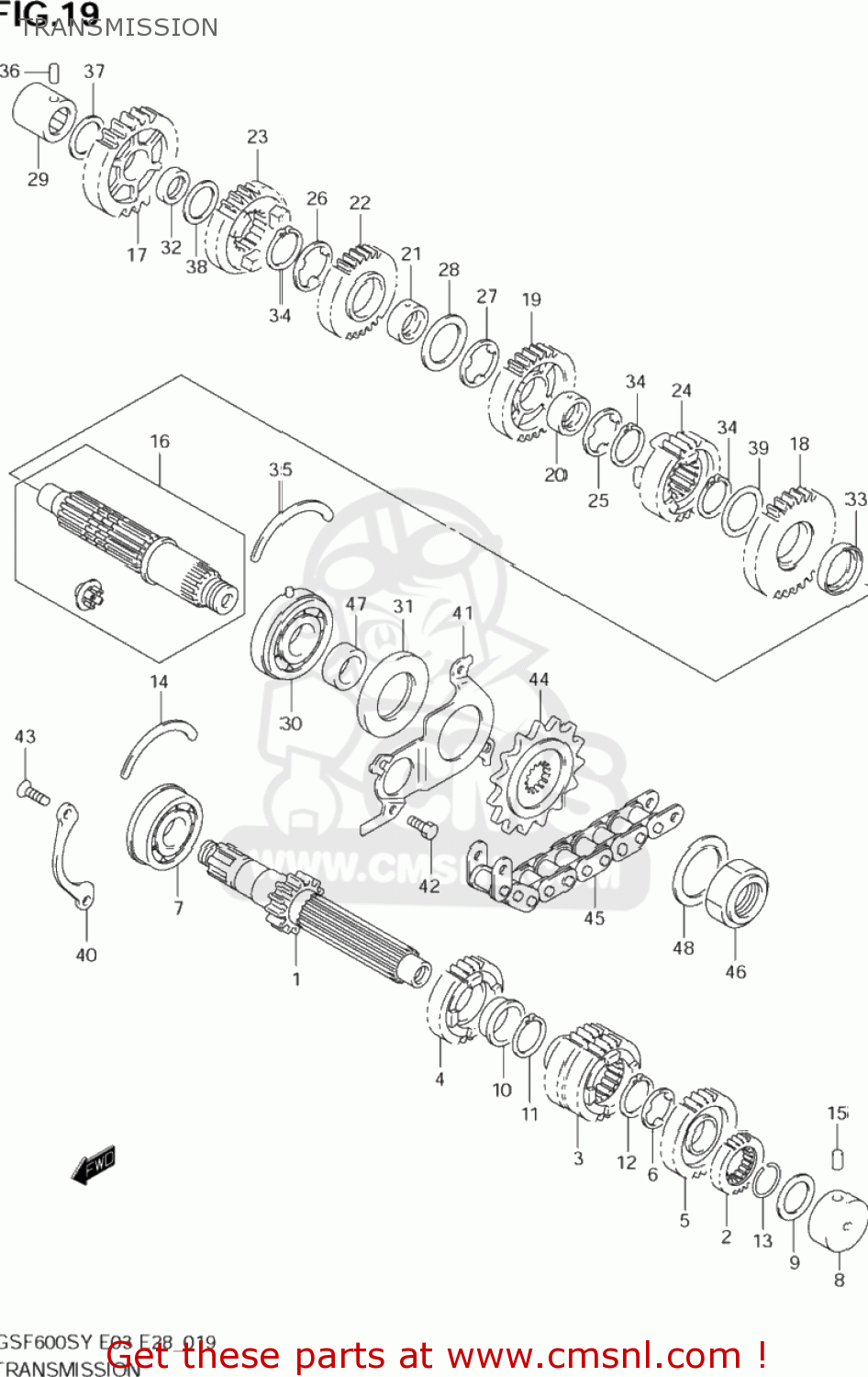

Transmission diagram GSF600S BANDIT 2003 (K3) USA (E03)
TRANSMISSION GSF600S BANDIT 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412119C01
ref: 1
SHAFT,COUNTER(NT:12)
€ 193.50
2
2422127A01
ref: 2
GEAR,2ND DRIVE(NT:16)
€ 93.00
3
2423127A00
ref: 3
GEAR,3RD & 4TH DRIVE(NT:17/20)
€ 162.00
4
2425127A01
ref: 4
GEAR,5TH DRIVE(NT:22)
€ 91.00
5
2426117C02
ref: 5
GEAR,6TH DRIVE(NT:21)
€ 119.50
6
0916725012
ref: 6
WASHER,LOCK
€ 3.50
7
0926225051
ref: 7
09262-25105
BEARING(25X62X17)
€ 59.50
8
0926320049
ref: 8
BEARING(20X34X17.5)
€ 58.00
9
0928520006
ref: 9
SEAL,OIL(20X31.2X2.7)
€ 7.00
10
0930125001
ref: 10
24322-19F00
BUSHING
€ 12.50
11
0938025003
ref: 11
RING,SNAP
€ 3.00
12
0938025003
ref: 12
RING,SNAP
€ 3.00
13
0938025013
ref: 13
CIRCLIP
€ 3.00
14
0939062012
ref: 14
C RING
€ 5.00
15
0422107129
ref: 15
PIN
€ 1.50
16-1
2410020810
ref: 16-1
SHAFT SET,DRIVE
€ 169.50
16-1
2410020810
ref: 16-1
SHAFT SET,DRIVE
€ 169.50
16-2
2413120C31
ref: 16-2
SHAFT,DRIVE
€ 172.50
16-2
2413120C31
ref: 16-2
SHAFT,DRIVE
€ 172.50
16-3
2413120C31
ref: 16-3
SHAFT,DRIVE
€ 172.50
17
2431119C10
ref: 17
GEAR,1ST DRIVEN(NT:37)
€ 101.50
18
2432120C00
ref: 18
GEAR,2ND DRIVEN(NT:33)
€ 60.00
19
2433127A00
ref: 19
GEAR,3RD DRIVEN(NT:28)
€ 129.00
20
2433227A00
ref: 20
BUSH
€ 13.50
21
2433227A00
ref: 21
BUSH
€ 13.50
22
2434127A01
ref: 22
GEAR,4TH DRIVEN(NT:28)
€ 80.00
23
2435127A00
ref: 23
GEAR,5TH DRIVEN(NT:27)
€ 117.00
24
2436120C01
ref: 24
GEAR,6TH DRIVEN(NT:23)
€ 124.00
25
0916728001
ref: 25
WASHER,LOCK
€ 3.00
26
0916728001
ref: 26
WASHER,LOCK
€ 3.00
27
0916728002
ref: 27
WASHER,LOCK
€ 3.00
28
0916928001
ref: 28
WASHER
€ 3.00
29
0926320040
ref: 29
BEARING(20X34X20)
€ 42.50
30
0926725011
ref: 30
BEARING(25X62X21.6)
€ 136.00
31
0928334005
ref: 31
SEAL,OIL(34X62X6)
€ 14.50
32
0930022008
ref: 32
BUSH(22X26X9)
€ 10.50
33
0930028003
ref: 33
BUSH(28X32X9.5)
€ 19.50
34
0833131286
ref: 34
08331-3128A
CIRCLIP
€ 2.50
35
0939062012
ref: 35
C RING
€ 5.00
36
0422107209
ref: 36
PIN
€ 1.50
37
0918120251
ref: 37
SHIM(20X34X1)
€ 3.00
38
0918122223
ref: 38
SHIM(22X34X1)
€ 3.00
39
0918128195
ref: 39
SHIM(28X38X1)
€ 3.50
40
2474127A00
ref: 40
RETAINER,CNTR SHAFT BEARING
€ 7.00
41
2475140C01
ref: 41
RETAINER,DRIVE SHAFT OIL SEAL
€ 7.00
42
0150006123
ref: 42
01500-0612A
BOLT
€ 2.00
43-1
0212206163
ref: 43-1
02122-0616A
SCREW ,6X16
€ 2.00
43-2
0912606011
ref: 43-2
SCREW(6X12)
€ 2.00
44
2751017C10
ref: 44
SPROCKET,ENGINE(NT:15)
€ 67.00
45
2760021E30112
ref: 45
27600-16G20-112
CHAIN ASSEMBLY RK FS50MF0Z
€ 235.00
46
0915920004
ref: 46
NUT
€ 12.00
47
0918025091
ref: 47
SPACER(25X34X17.5)
€ 16.00
48
0918125268
ref: 48
SHIM(25X40X1.5)
€ 3.00
