FRONT BRAKE HOSE

GSF600S BANDIT 2003 (K3) USA (E03)

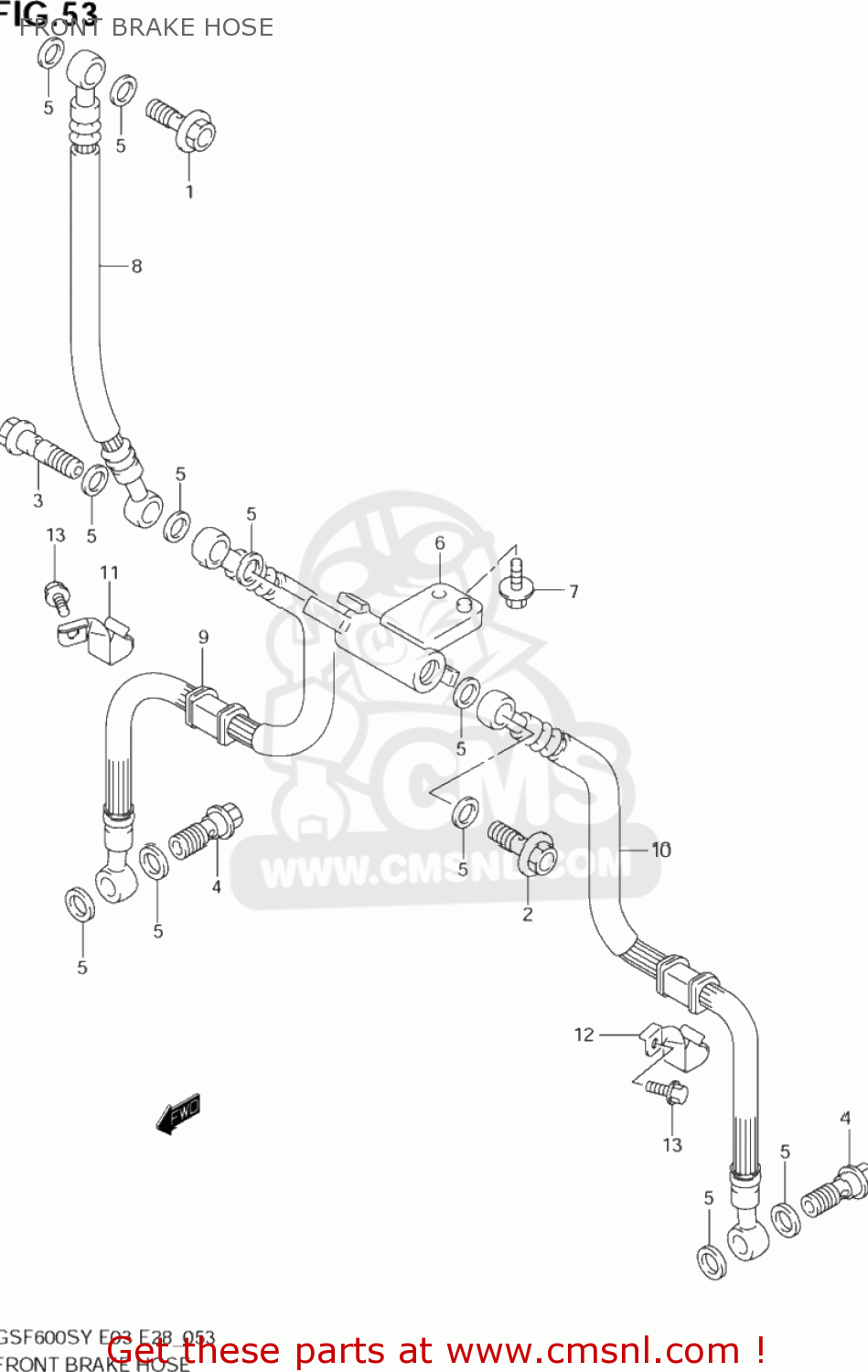

Front brake hose diagram GSF600S BANDIT 2003 (K3) USA (E03)

FRONT BRAKE HOSE GSF600S BANDIT 2003 (K3) USA (E03)

FRONT BRAKE HOSE GSF600S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

0936010041
ref: 1
09360-10061

BOLT UNION

€ 6.50

2

0936010041
ref: 2
09360-10061

BOLT UNION

€ 6.50

3

0936010043
ref: 3
09360-10063

BOLT UNION

€ 6.50

4

0936010042
ref: 4
09360-10062

BOLT UNION

€ 5.00

5

0916110009
ref: 5

WASHER(10X15X1.5)

€ 2.00

6

5949117E00
ref: 6

JOINT,BRAKE HOSE

€ 68.50

7

0155006163
ref: 7
01550-0616A

BOLT

€ 2.50

8

5948031F10
ref: 8

HOSE,FR BRAKE NO.1

€ 77.00

9

5924031F00
ref: 9

HOSE,FR BRAKE NO.2,R

€ 79.50

10

5944031F00
ref: 10

HOSE,FR BRAKE NO.2,L

€ 72.00

11

5926832F00
ref: 11

CLAMP,FR BRAKE HOSE NO.2,R

€ 11.00

12

5926932F00
ref: 12

CLAMP,FR BRAKE HOSE NO.2,L

€ 11.00

13

0155006123
ref: 13
01550-0612A

BOLT

€ 2.50
