SECOND AIR

GSF600S BANDIT 2003 (K3) USA (E03)

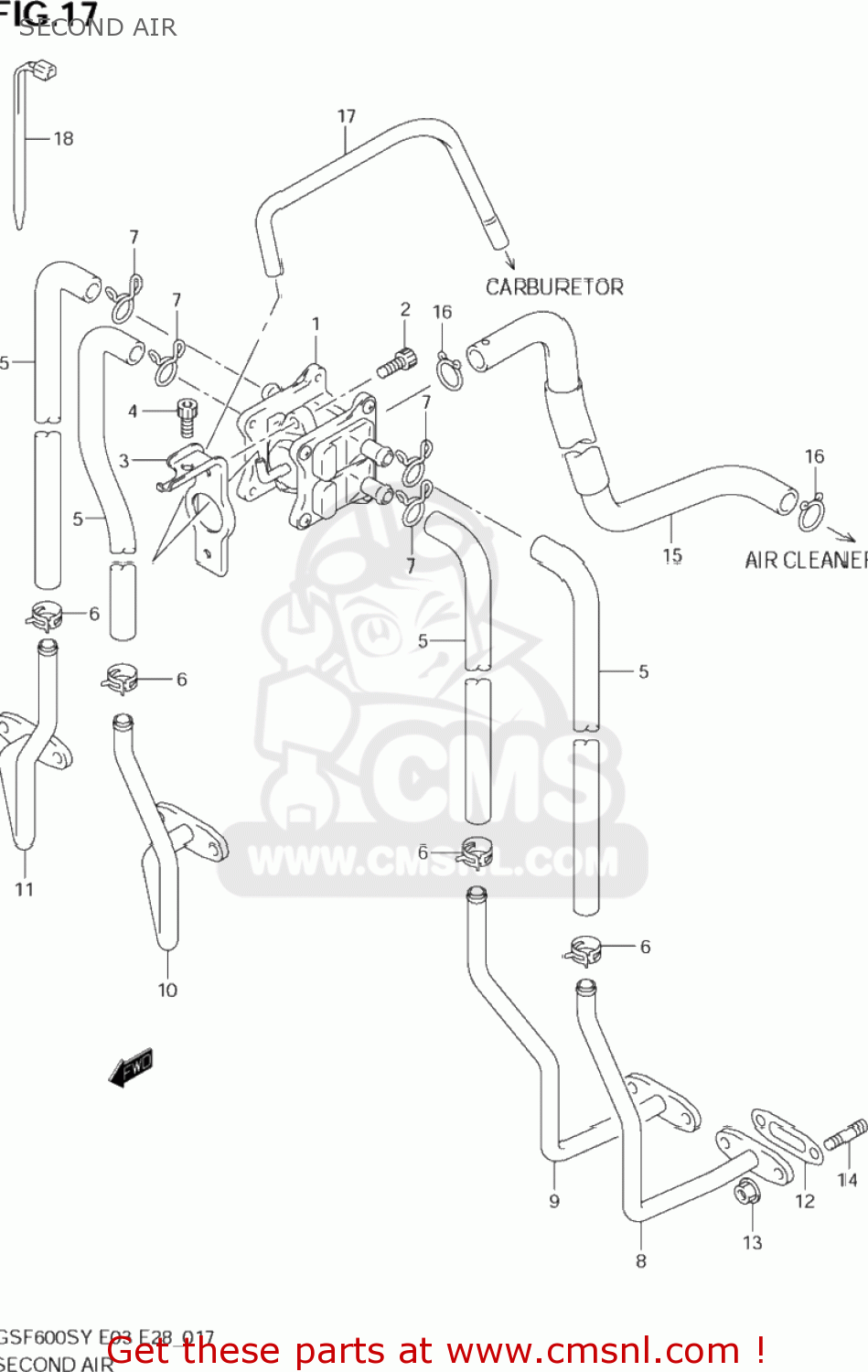

Second air diagram GSF600S BANDIT 2003 (K3) USA (E03)

SECOND AIR GSF600S BANDIT 2003 (K3) USA (E03)

SECOND AIR GSF600S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1845033E12
ref: 1

VALVE ASSY,2ND AIR

€ 180.00

2

0713006163
ref: 2
07130-0616B

BOLT,OIL FILLE

€ 3.00

3

1861031F00
ref: 3

BRACKET,2ND AIR

€ 12.50

4

0712006123
ref: 4
07120-0612B

BOLT

€ 3.50

5

1846131F00
ref: 5

HOSE,2ND AIR VALVE NO.1

€ 22.00

6

0940113417
ref: 6

CLIP

€ 2.50

7

0940113409
ref: 7

CLIP

€ 2.50

8

1841031F00
ref: 8

PIPE,2ND AIR NO.1

€ 37.50

9

1842031F00
ref: 9

PIPE,2ND AIR NO.2

€ 32.00

10

1843031F00
ref: 10

PIPE,2ND AIR NO.3

€ 39.50

11

1844031F00
ref: 11

PIPE,2ND AIR NO.4

€ 37.50

12

1844117C11
ref: 12

GASKET,2ND AIR PIPE (NAS)

€ 7.00

13

0831610063
ref: 13
08316-1006B

NUT

€ 2.50

14

0142106163
ref: 14
01421-0616A

STUD BOLT

€ 2.00

15

1871131F00
ref: 15

HOSE,2ND AIR CLEANER

€ 14.00

16

0940115101
ref: 16

CLIP

€ 2.00

17

0935940701600
ref: 17

HOSE(4X7X600)

€ 9.00

18

0940718402
ref: 18

CLAMP(L:165)

€ 2.50
