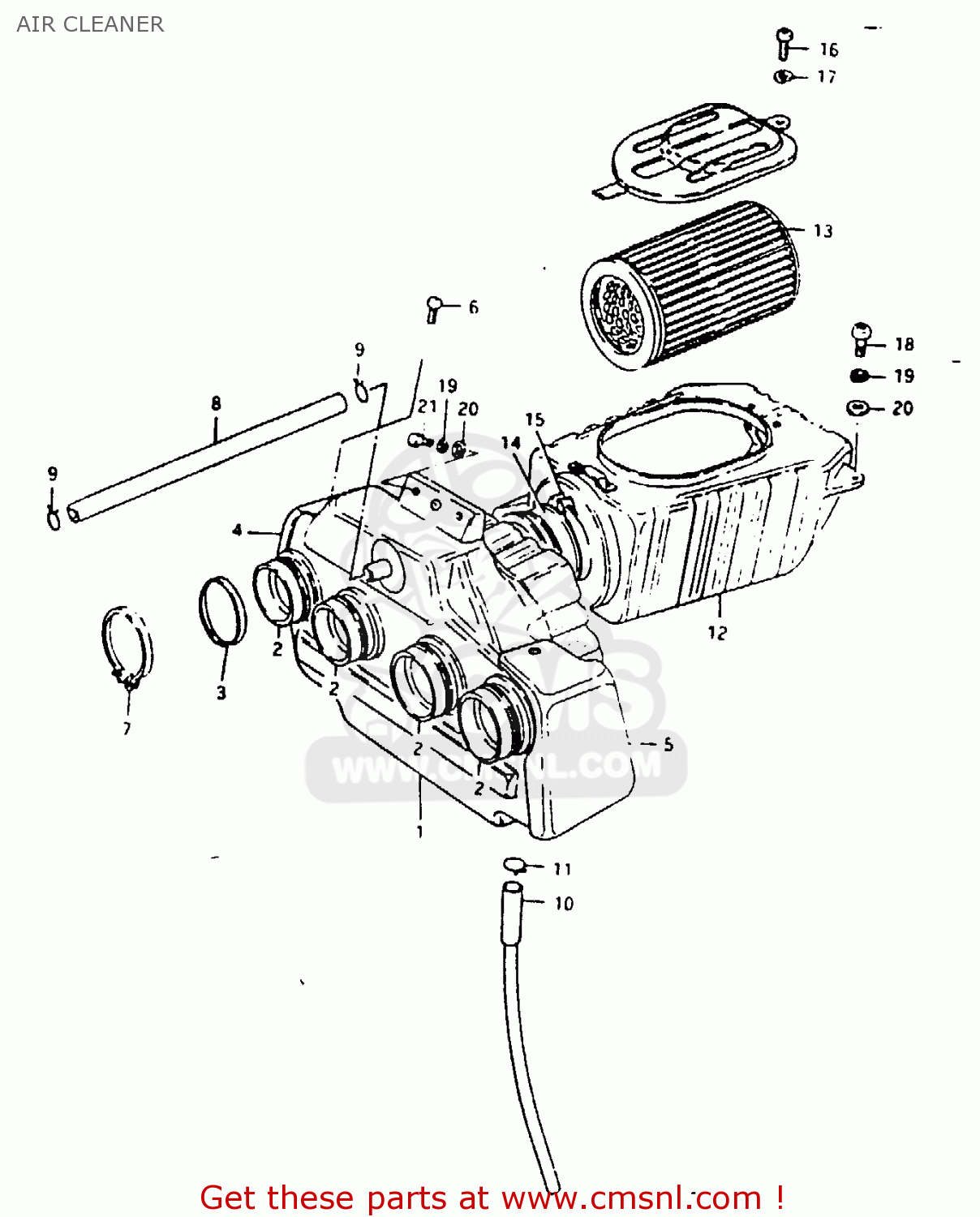

AIR CLEANER

ref

part #

description

quantity

1

1371049300
ref: 1

CASE ASSY, FRONT

€ 0.00

2

1388149021
ref: 2

TUBE,AIR CLEANER OUTLET

€ 16.00

3

1388547030
ref: 3

RING,CARBURETOR AIR INLET HOSE

€ 8.00

4

1383145500
ref: 4

COVER,AIR CLEA

€ 30.50

5

1383245500
ref: 5

COVER

€ 25.00

6

0211204108
ref: 6

SCREW 4X10

€ 2.00

7

0940264306
ref: 7

CLAMP

€ 6.00

8

1385100220
ref: 8

TUBE,BREATHER

€ 13.50

9

0940114301
ref: 9

CLIP

€ 2.00

10

1387000010
ref: 10

DRAIN TUBE

€ 13.50

11

0940114301
ref: 11

CLIP

€ 2.00

12

1370049840
ref: 12

CASE SET, REAR

€ 181.50

13

1378049310
ref: 13

FILTER ASSY

€ 29.50

14

1379549000
ref: 14

HOSE,AIR CLEANER

€ 34.50

15

1379649000
ref: 15

BAND

€ 6.00

16

0211205128
ref: 16

SCREW

€ 2.50

17

0832121058
ref: 17

LOCK WASHER

€ 2.00

18

0211206208
ref: 18

SCREW

€ 2.00

19

0832121068
ref: 19

LOCK WASHER

€ 2.50

20

0832221068
ref: 20

WASHER

€ 2.00

21

0110706208
ref: 21

BOLT

€ 2.00

all assemblies
