CYLINDER HEAD COVER

GSX1000S 1982 (Z) GENERAL EXPORT (E01)

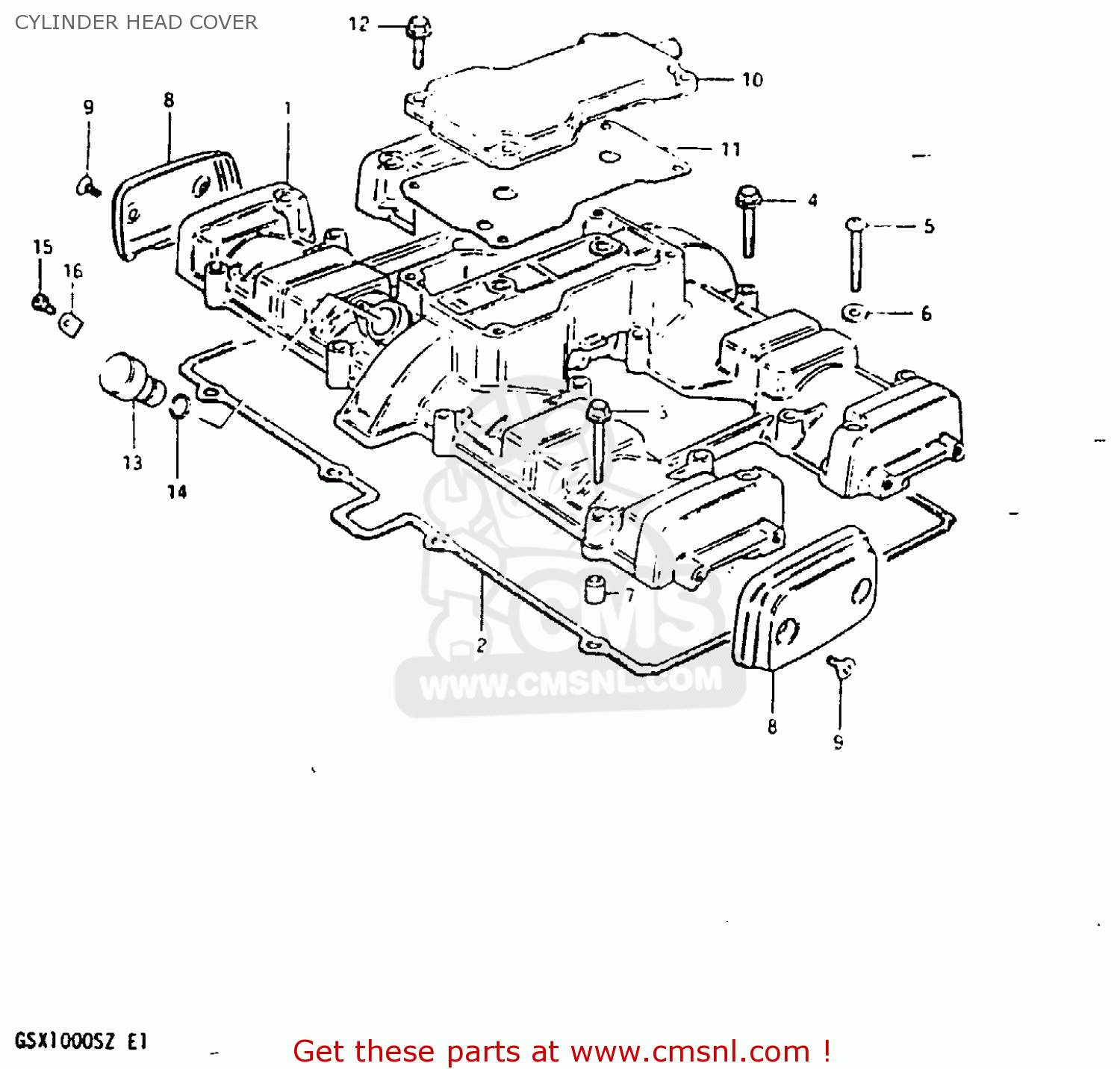

Cylinder head cover diagram GSX1000S 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1117149203
ref: 1

COVER,CYLINDER HEAD

€ 138.50

1117349206
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 68.50

0151706408
ref: 3

BOLT

€ 2.50

0151706358
ref: 4

BOLT 6X35

€ 2.50

0215206408
ref: 5

SCREW 6X40

€ 3.00

0916806009
ref: 6

GASKET (NAS)

€ 2.00

0920608001
ref: 7

PIN(6.2X8X11)

€ 2.00

1117449210
ref: 8

CAP,CYLINDER HEAD COVER

€ 28.50

0912705013
ref: 9

SCREW(5X12)

€ 2.50

1117649200
ref: 10

COVER,BREATHER

€ 22.50

1117749200
ref: 11

GASKET (MCA)

€ 12.50

0151706208
ref: 12

BOLT,REAR

€ 2.50

2644245000
ref: 13

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

2645145000A
ref: 14

SEAL,TACHOMETER DRIVEN

€ 4.50

0912805101
ref: 15

SCREW(5X12)

€ 1.50

2644933000
ref: 16

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50
