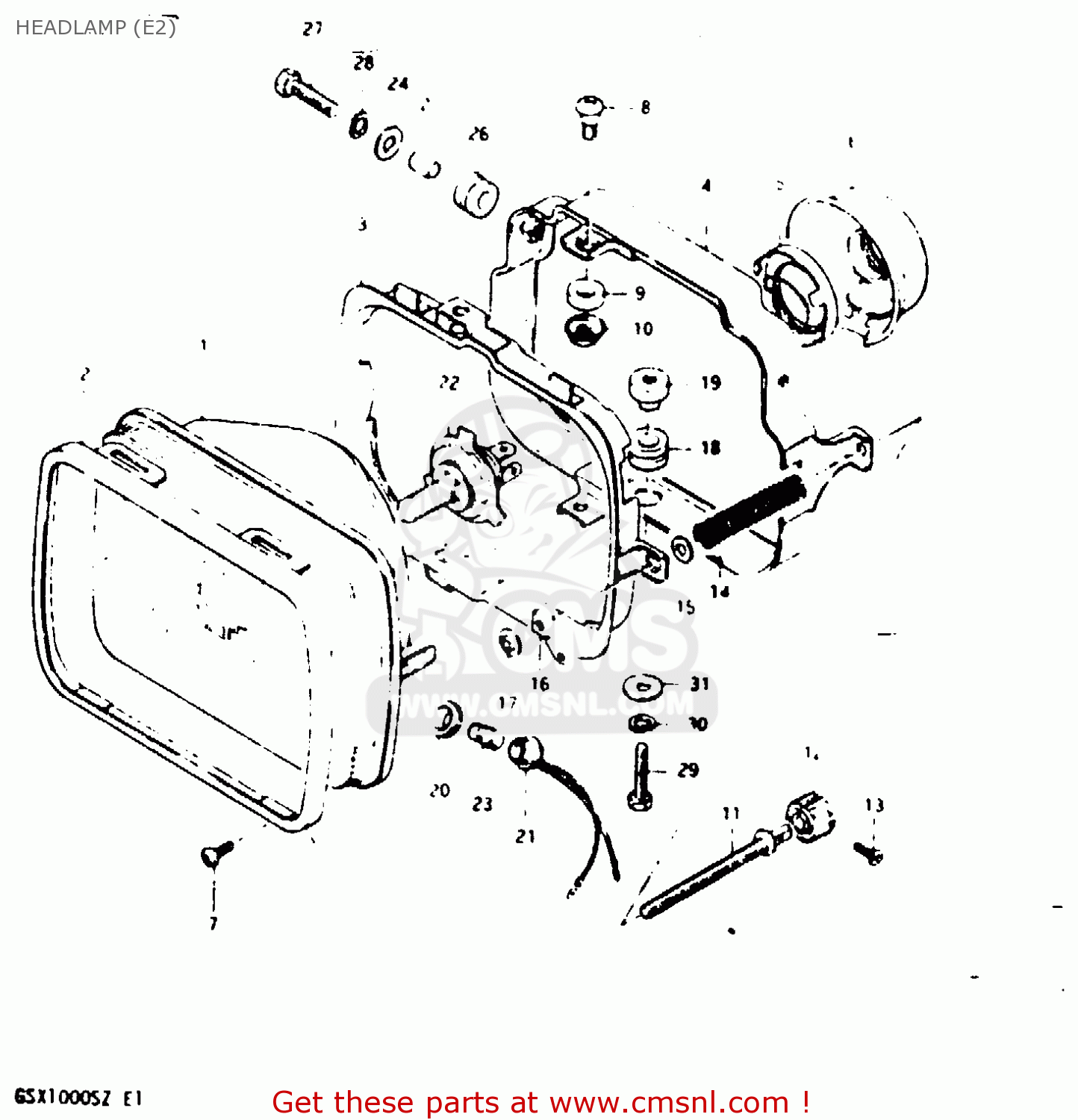

HEADLAMP (E2)

ref

part #

description

quantity

0

3510049320999
ref: 0

HEADLAMP ASSY

€ 0.00

1

3512149220
ref: 1

UNIT

€ 175.00

2

3512749320
ref: 2

RETAINER

€ 37.50

3

3513049320
ref: 3

RING,MOUNTING

€ 30.00

4

3538149320
ref: 4

HOUSING

€ 42.50

5

3513649320
ref: 5

HOLDER, BULB

€ 8.50

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

0211203088
ref: 7

SCREW

€ 1.50

8

3513625611
ref: 8

SCREW

€ 4.00

9

3513345600
ref: 9

SPACER

€ 3.50

10

3513525611
ref: 10

NUT,ADJUSTING

€ 2.50

11

3515149320
ref: 11

SCREW,ADJUSTING

€ 16.50

12

3516149320
ref: 12

KNOB,ADJUSTER

€ 6.00

13

0211203108
ref: 13

SCREW

€ 1.50

14

3515449320
ref: 14

SPRING

€ 3.00

15

3515749320
ref: 15

WASHER

€ 2.00

16

3515249320
ref: 16

NUT

€ 0.00

17

3515249330
ref: 17

NUT,HEADLAMP ADJUSTER

€ 2.00

18

3538249320
ref: 18

CUSHION

€ 0.00

19

3538349320
ref: 19

NUT

€ 0.00

20

3611622630
ref: 20

JOINT,RUBBER

€ 5.00

21

3611849320
ref: 21

SOCKET

€ 12.00

22

0947112060
ref: 22
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

23

0947112063
ref: 23
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

24

0916006007
ref: 24

WASHER

€ 2.00

25

0918006044
ref: 25

SPACER (6.1X8X9.5)

€ 2.50

26

0932008001
ref: 26

CUSHION

€ 3.50

27

0110706258
ref: 27

BOLT

€ 2.00

28

0832121068
ref: 28

LOCK WASHER

€ 2.50

29

0912806030
ref: 29

SCREW(6X20)

€ 0.00

30

0832121068
ref: 30

LOCK WASHER

€ 2.50

31

0832221068
ref: 31

WASHER

€ 2.00
