CHAIN CASE - REAR SHOCK ABSORBER

GSX1000S 1982 (Z) GENERAL EXPORT (E01)

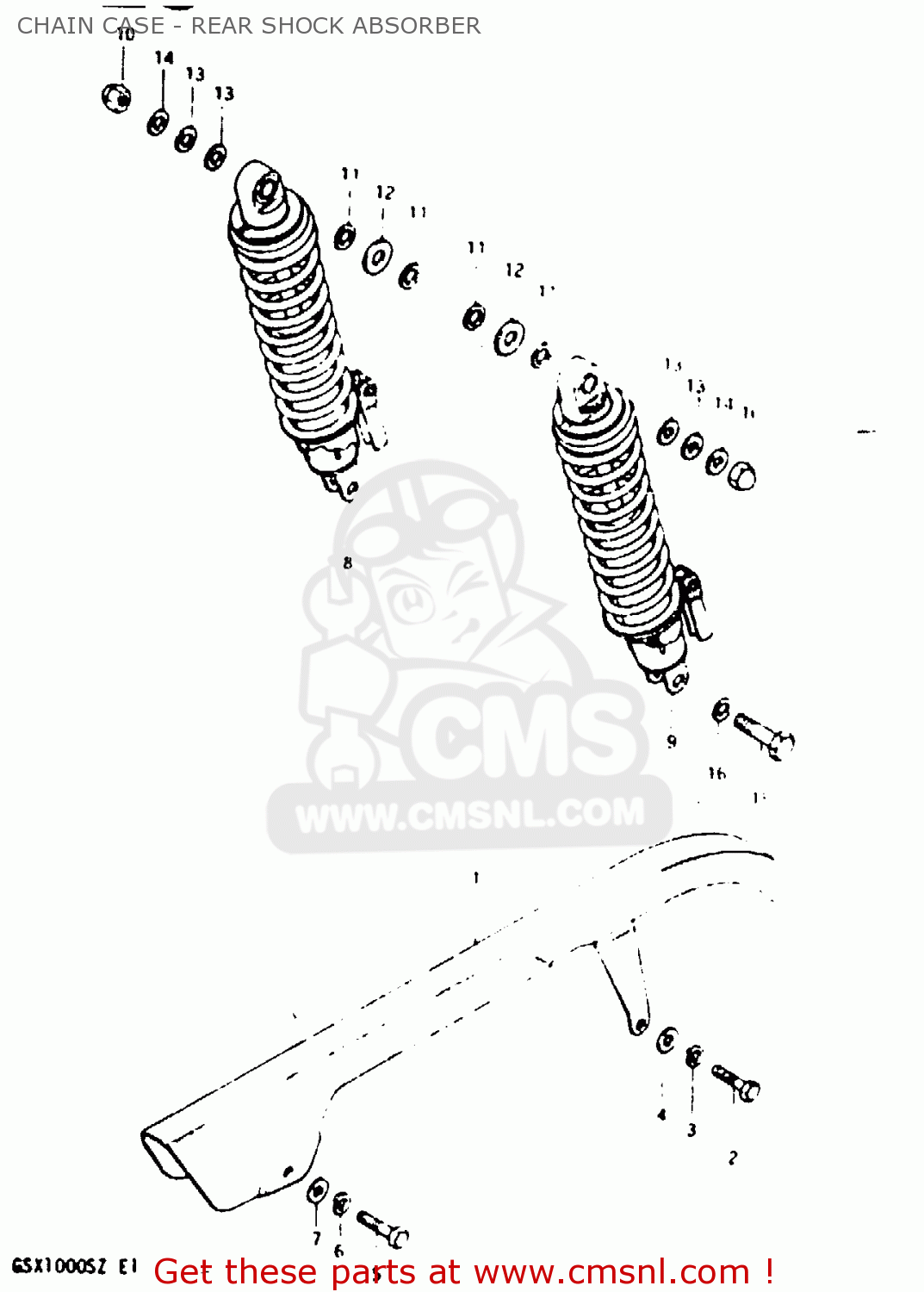

Chain case - rear shock absorber diagram GSX1000S 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6131049300291
ref: 1

CASE,CHAIN

€ 115.50

0110706258
ref: 2

BOLT

€ 2.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

0832221068
ref: 4

WASHER

€ 2.00

0110706128
ref: 5

BOLT

€ 2.00

0832121068
ref: 6

LOCK WASHER

€ 2.50

0916006007
ref: 7

WASHER

€ 2.00

6210349300
ref: 8

SHOCK ABSORBER, REAR RH

€ 419.50

6210449300
ref: 9

SHOCK ABSORBER, REAR LH

€ 440.50

0831311108
ref: 10

NUT, LOWER LH

€ 2.50

0832211128
ref: 11

WASHER

€ 2.00

0916012012
ref: 12

WASHER (12.5X24X3.2)

€ 2.50

13-1

0916010001
ref: 13-1

WASHER

€ 2.00

13-2

NOTUSED
ref: 13-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0916010033
ref: 14

WASHER(10.5X24X3.2)

€ 2.00

0910410002
ref: 15

BOLT(10X36)

€ 4.50

0832211108
ref: 16

WASHER

€ 2.50
