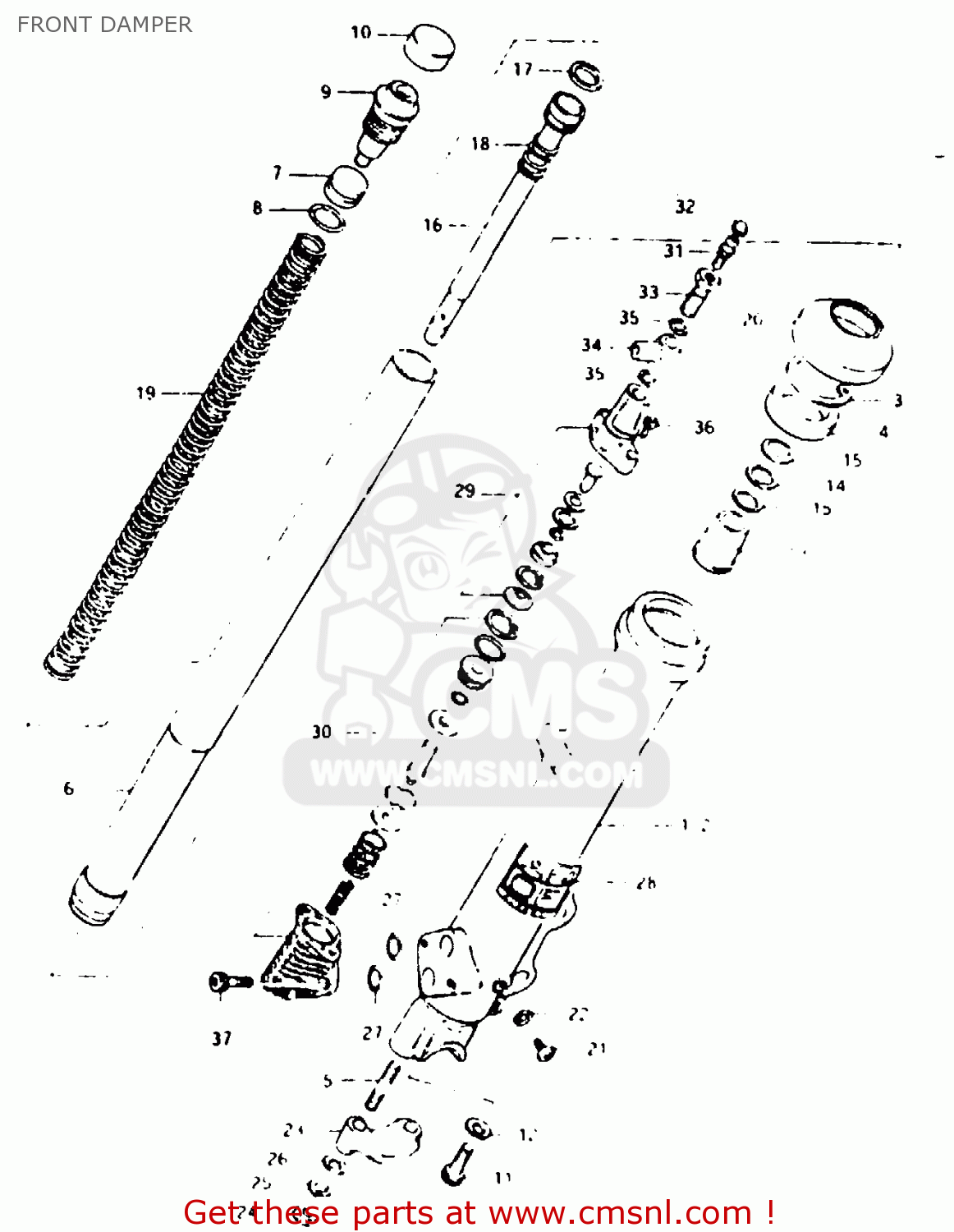

FRONT DAMPER

ref

part #

description

quantity

0

5110349310
ref: 0

DAMPER ASSY, RH

€ 0.00

0

5110449310
ref: 0

DAMPER ASSY, LH

€ 0.00

1

5113049300
ref: 1

OUTER TUBE, RH

€ 117.50

2

5114049300
ref: 2

OUTER TUBE, LH

€ 142.50

3

5115640301
ref: 3

RING,STOPPER

€ 4.50

4

5115349000
ref: 4

OIL SEAL,FRONT FORK

€ 16.50

5

0141108308
ref: 5

STUD 8X30

€ 2.00

6

5111049300
ref: 6

TUBE,INNER

€ 294.50

7

5117245110
ref: 7

PISTON,FREE

€ 10.50

8

5111745110
ref: 8

O-RING

€ 4.00

9

5135149200
ref: 9

CAP

€ 59.00

10

5118949300
ref: 10

CAP,RUBBER

€ 9.00

11

5114716510
ref: 11

BOLT,FORK CYLINDER(10X25)

€ 3.50

12

5114841310
ref: 12

GASKET (NAS)

€ 2.50

13

5119545420
ref: 13

PIECE,OIL LOCK

€ 15.50

14

5112345420
ref: 14

WASHER

€ 3.50

15

5112545420
ref: 15

SPRING,LEAF

€ 3.50

16

5114649300
ref: 16

CYLINDER,FRONT FORK

€ 118.00

17

5119649000
ref: 17

RING,PISTON

€ 9.00

18

5117749000
ref: 18

SPRING,REBOUND

€ 7.50

19

5117149310
ref: 19

SPRING,FRONT FORK

€ 74.50

20

5117349002
ref: 20

SEAL,DUST

€ 13.00

21

0211204088
ref: 21

SCREW

€ 1.50

22

5118303010
ref: 22

GASKET,DRAIN,PLUG (NAS)

€ 3.00

23

5113249000
ref: 23

HOLDER,AXLE

€ 30.00

24

0914008005
ref: 24

NUT (8MM)

€ 1.50

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0832221088
ref: 26

WASHER

€ 2.00

27

5179944130
ref: 27

O RING

€ 5.00

28

5114944130
ref: 28

LABEL

€ 5.50

29

5170044831
ref: 29

MODULATOR PLANGER SET

€ 100.00

30

5170049810
ref: 30

MODULATOR VALVE SET

€ 122.00

31

5177844130
ref: 31

BREATHER,AIR

€ 12.50

32

5177944130
ref: 32

CAP,BREADER

€ 6.00

33

5175349300
ref: 33

BOLT,UNION

€ 10.50

34

5176549300
ref: 34

SPACER,FRONT FORK MODULATOR

€ 7.50

35

0916110005
ref: 35

WASHER

€ 2.00

36

5179744160
ref: 36

BOLT,FR FORK

€ 2.00

37

5179644130
ref: 37

BOLT,FRONT FORK

€ 3.00
