CARBURETOR
GSX1000S 1982 (Z) GENERAL EXPORT (E01)

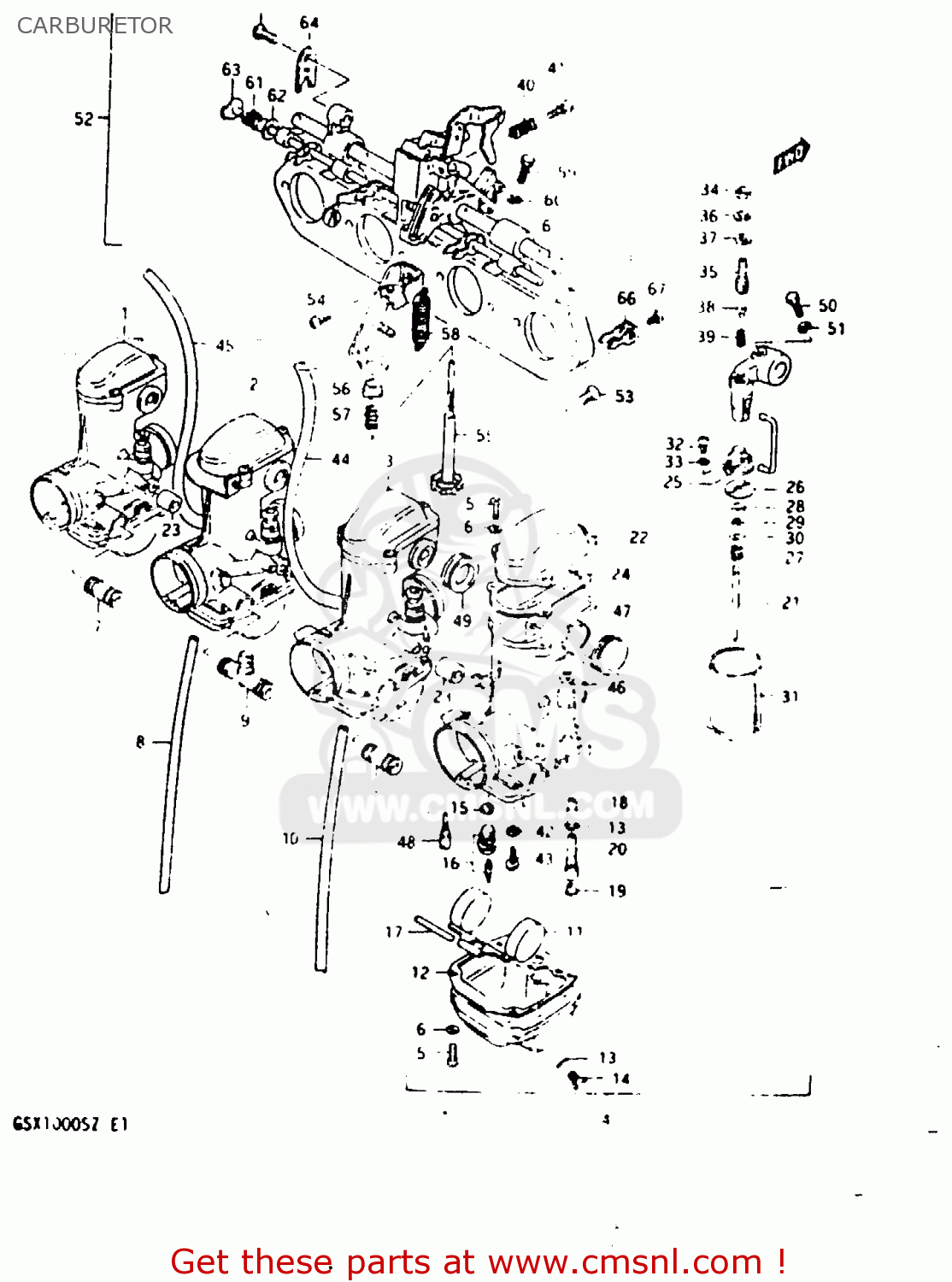

Carburetor diagram GSX1000S 1982 (Z) GENERAL EXPORT (E01)
CARBURETOR GSX1000S 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1320149310
ref: 1
CARBURETOR, LH
€ 0.00
2
1320249310
ref: 2
CARBURETOR, ML
€ 0.00
3
1320349310
ref: 3
CARBURETOR, MR
€ 254.00
4
1320449310
ref: 4
CARBURETOR, RH
€ 0.00
5
0211204168
ref: 5
SCREW
€ 1.00
6
0832121048
ref: 6
LOCK WASHER
€ 2.00
7
1368549310
ref: 7
NIPPLE
€ 0.00
8
1368345010
ref: 8
HOSE
€ 10.00
9
1368549310
ref: 9
NIPPLE
€ 0.00
10
1388332410
ref: 10
HOSE (L:450)
€ 0.00
11
1325249120
ref: 11
FLOAT
€ 0.00
12
1325149120
ref: 12
GASKET,FLOAT CAHMBER
€ 0.00
13
1324643010
ref: 13
O RING
€ 4.00
14
1324745010
ref: 14
SCREW
€ 7.50
15
1337665010
ref: 15
FILTER
€ 6.50
16
1337049120
ref: 16
VALVE ASSY,NEEDLE
€ 50.00
17
1325401010
ref: 17
PIN,FLOAT
€ 3.00
18
1338349310
ref: 18
NEEDLE, JET (5DL82-3)
€ 12.50
19
0949195003
ref: 19
JET
€ 8.50
20
1338549310
ref: 20
HOLDER, JET
€ 0.00
21
0949400198
ref: 21
JET,NEEDLE
€ 19.50
22
1326149310
ref: 22
COVER, TOP
€ 0.00
23
1368347010
ref: 23
HOSE
€ 21.00
24
1326643010
ref: 24
GASKET (NAS)
€ 7.00
25
1339845010
ref: 25
CONNECTOR
€ 18.00
26
1358147010
ref: 26
PLATE,THROTTLE VALVE
€ 5.50
27
1338849120
ref: 27
SPRING
€ 0.00
28
1338747010
ref: 28
RING
€ 7.50
29
1339410010
ref: 29
CLIP
€ 4.50
30
1338247010
ref: 30
WASHER,JET NEEDLE
€ 3.00
31
1355149310
ref: 31
THROTTLE VALVE
€ 0.00
32
0211203168
ref: 32
SCREW
€ 1.50
33
0832121038
ref: 33
LOCK WASHER
€ 1.50
34
1360749120
ref: 34
NUT
€ 0.00
35
1354849120
ref: 35
ADJUSTER
€ 0.00
36
1361445010
ref: 36
WASHER
€ 2.50
37
1361543010
ref: 37
WASHER,STARTER SHAFT
€ 2.50
38
1354443010
ref: 38
PIN,CARBURETOR
€ 2.50
39
1354332410
ref: 39
SPRING,CARBURETOR
€ 0.00
40
1326849310
ref: 40
SPRING
€ 4.50
41
1360549310
ref: 41
ADJUSTER
€ 0.00
42
1337339110
ref: 42
PLATE
€ 6.50
43
0211204068
ref: 43
SCREW 4X6
€ 2.00
44
1368345050
ref: 44
HOSE 4.5X8X390
€ 14.00
45
1368345050
ref: 45
HOSE 4.5X8X390
€ 14.00
46
1342433110
ref: 46
RING
€ 6.00
47
1367843010
ref: 47
PIPE,DELIVERY
€ 4.50
48
0949220002
ref: 48
JET
€ 10.00
49
1355645010
ref: 49
LH:1, ML:2, MR:2, RH
SEAL
€ 15.50
50
1361343010
ref: 50
BOLT
€ 1.50
51
1361445020
ref: 51
LOCK WASHER
€ 0.00
52
1321049310
ref: 52
CONTROL ASSY
€ 0.00
53
0212206168
ref: 53
SCREW
€ 2.00
54
0211205168
ref: 54
SCREW
€ 2.50
55
1326749120
ref: 55
ADJUSTER
€ 0.00
56
1327649020
ref: 56
CAP
€ 0.00
57
1326849120
ref: 57
SPRING
€ 5.50
58
1357345010
ref: 58
SPRING,THROTTLE RETURN
€ 23.00
59
1361343010
ref: 59
BOLT
€ 1.50
60
1361445020
ref: 60
LOCK WASHER
€ 0.00
61
1343749020
ref: 61
SPRING
€ 1.50
62
1343249020
ref: 62
WASHER
€ 3.00
63
1341049310
ref: 63
SHAFT, STARTER
€ 0.00
64
1355749120
ref: 64
PLATE
€ 0.00
65
1355049310
ref: 65
SHAFT
€ 0.00
66
1342249120
ref: 66
LEVER
€ 6.00
67
1360544080
ref: 67
SCREW
€ 3.00
