FRONT MASTER CYLINDER

GSX1000S 1982 (Z) GENERAL EXPORT (E01)

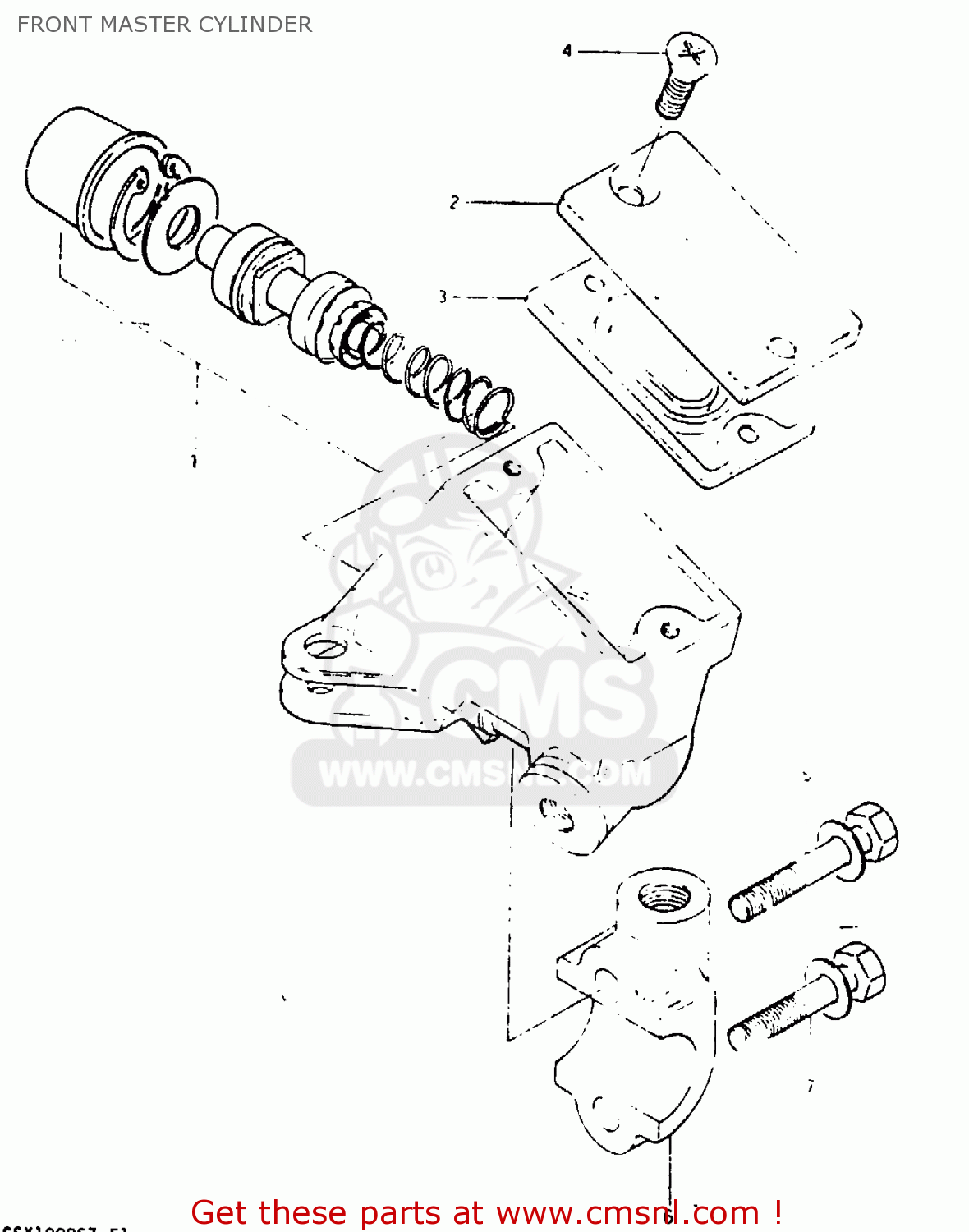

Front master cylinder diagram GSX1000S 1982 (Z) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX1000S 1982 (Z) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX1000S 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960049300
ref: 0

CYLINDER ASSY, MASTER

€ 209.00

1

5960049830
ref: 1

PISTON & CUP SET

€ 46.50

2

5966949300
ref: 2

CAP

€ 23.50

3

5966749300
ref: 3

DIAPHRAGM,MASTER CYLINDER

€ 15.50

4

5969149300
ref: 4

SCREW,RESERVOIR CAP

€ 6.50

5

5969449001
ref: 5

BOLT,MASTER CYLINDER H

€ 3.00

6

5967149000
ref: 6

HOLDER

€ 22.50

7

5969349001
ref: 7

BOLT,MASTER CYLINDER H

€ 4.00
