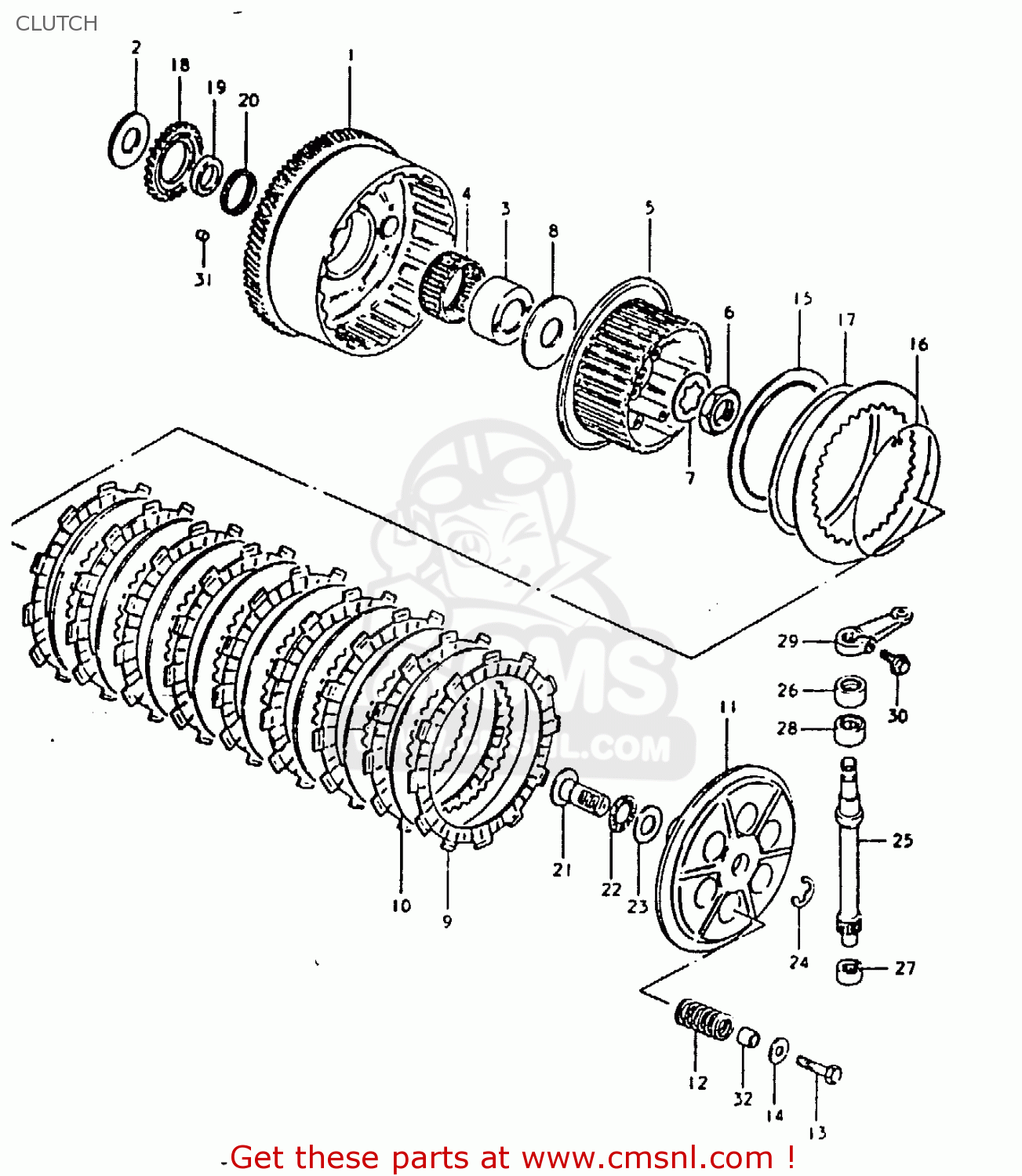

CLUTCH

ref

part #

description

quantity

1

2120049202
ref: 1
NT:87

GEAR ASSEMBLY,PRIMARY DRIVE

€ 381.50

2

0916025023
ref: 2

WASHER

€ 9.50

3

2125149200
ref: 3

SPACER

€ 65.50

4

0926351001
ref: 4

BEARING

€ 37.00

5

2141149203
ref: 5

HUB,CLUTCH SLEEVE

€ 151.50

6

0914024004
ref: 6

NUT

€ 4.50

7

0916725007
ref: 7

WASHER,LOCK

€ 7.50

8

0916025022
ref: 8

WASHER(25X66X3.5)

€ 13.50

9

2144149200
ref: 9

PLATE,CLUTCH DRIVE (MCA)

€ 16.00

10

2145149200
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 6.00

11

2146249201
ref: 11

DISC,CLUTCH PRESSURE

€ 100.00

12

0944019014
ref: 12

SPRING

€ 4.50

13

0110706308
ref: 13

BOLT

€ 2.50

14

0916006020
ref: 14

WASHER

€ 2.00

15

2147149100
ref: 15

SEAT,WAVE WASHER

€ 8.00

16

2148145100
ref: 16

RING,STOPPER

€ 5.00

17

0916400003
ref: 17

WASHER

€ 9.00

18

1632149990
ref: 18

GEAR,OIL PUMP DRIVE

€ 78.50

19

1632545001
ref: 19

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

20

0926336002
ref: 20

BEARING(36X40X10)

€ 24.50

21

2316549200
ref: 21

RACK,CLUTCH RELEASE

€ 21.00

22

0926315003
ref: 22

BEARING(15X28X2)

€ 7.00

23

0916015015
ref: 23

WASHER

€ 4.00

24

0833211128
ref: 24

E RING 12MM

€ 2.00

25

2326145400
ref: 25

PINION,CLUTCH RELEASE

€ 475.50

26

0928512002
ref: 26

OIL SEAL

€ 7.00

27

0926312014
ref: 27

BEARING(12X19X12)

€ 11.00

28

0926315012
ref: 28

BEARING(15X22X12)

€ 11.50

29

2327149001
ref: 29

ARM,CLUTCH RELEASE

€ 31.50

30

0151706208
ref: 30

BOLT,REAR

€ 2.50

31

2121549000
ref: 31

CUSHION,PRIMARY DRIVEN GEAR

€ 3.00

32

0918006088
ref: 32

SPACER

€ 5.50

all assemblies
