ALTERNATOR
GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

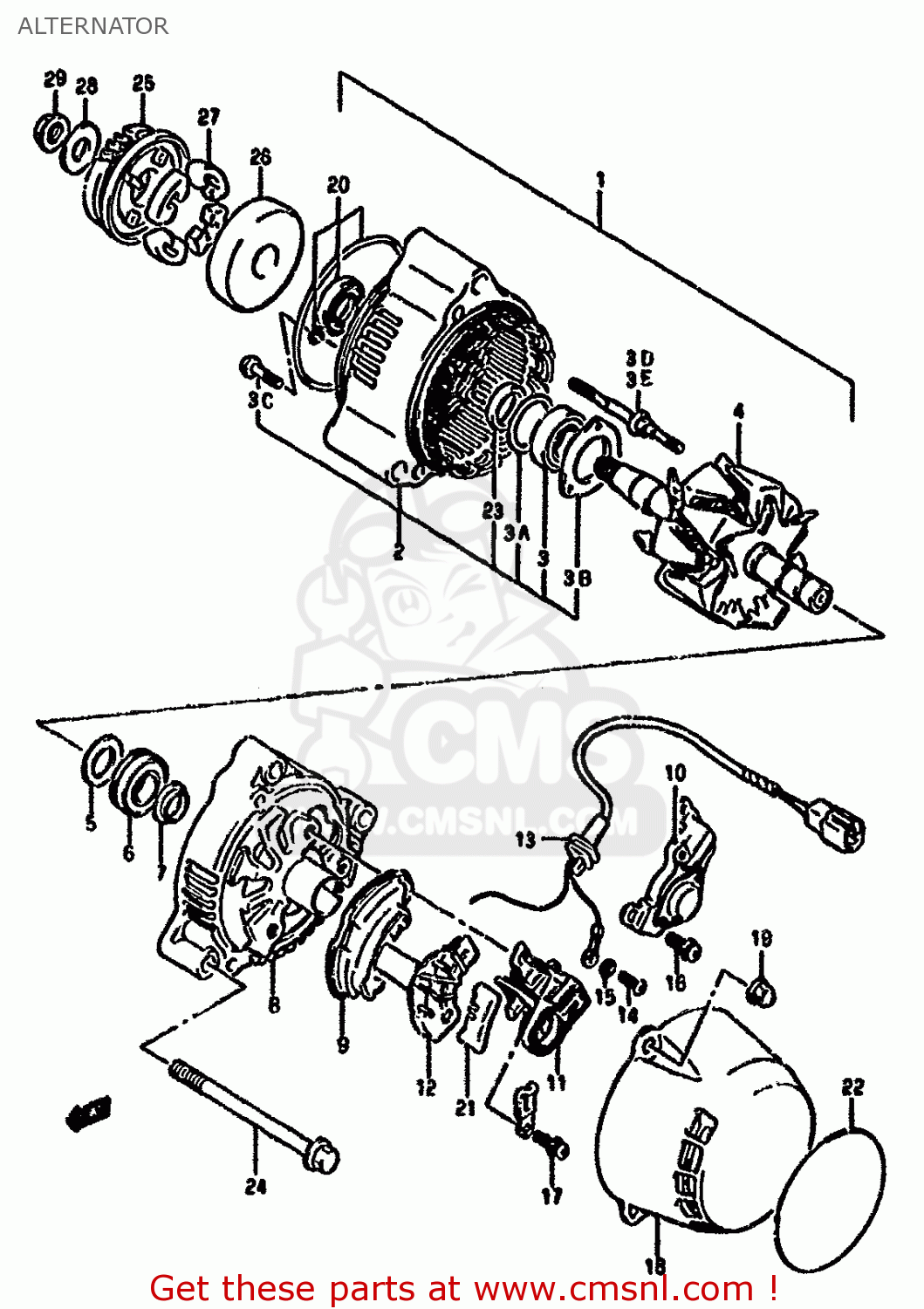

Alternator diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
ALTERNATOR GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
×
prices are in EUR
ref
part #
description
quantity
1-1
3140048B03
ref: 1-1
MODEL J/K/L/M/N
GENERATOR ASSEMBLY
€ 1,063.50
1-2
3140019C02
ref: 1-2
MODEL P
ALTERNATOR ASSEMBLY
€ 1,063.50
1-3
3140017C03
ref: 1-3
MODEL R
ALTERNATOR ASSEMBLY
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
€ 248.50
3
3161206B00
ref: 3
BEARING
€ 36.50
3A
3161348B00
ref: 3A
COVER,BEARING
€ 5.50
3B
3158548B00
ref: 3B
RETAINER
€ 9.00
3C
3158648B00
ref: 3C
SCREW,BEARING RETAINER
€ 3.50
3D
3158785250
ref: 3D
MODEL J/K
STUD BOLT
€ 9.00
3E
3158719C00
ref: 3E
MODEL L/M/N/P/R
STUD BOLT
€ 9.00
4
3171048B03
ref: 4
ROTOR ASSEMBLY
€ 277.50
5
3161382610
ref: 5
COVER,BEARING
€ 3.50
6
3161248B00
ref: 6
BEARING
€ 42.50
7
3161327A10
ref: 7
COVER(2)
€ 5.50
8
3161148B00
ref: 8
FRAME,END
€ 83.00
9
3162127A00
ref: 9
HOLDER,RECTIFIER
€ 225.50
10
3250027A00
ref: 10
REGULATOR
€ 321.00
11
3165648B00
ref: 11
HOLDER,BRUSH
€ 55.50
12
3168727A00
ref: 12
COVER,RECTIFIER
€ 4.50
13
3148048B00
ref: 13
WIRE,LEAD
€ 22.00
14-1
0211204086
ref: 14-1
MODEL J/K
SCREW
€ 2.00
14-2
3151685250
ref: 14-2
MODEL L/M/N/P/R
SCREW
€ 2.00
15
0832121046
ref: 15
LOCK WASHER
€ 2.00
16
3168827A00
ref: 16
SCREW
€ 2.50
17
3168806B00
ref: 17
SCREW
€ 2.50
18
3161448B00
ref: 18
COVER
€ 67.50
19-1
3169248B00
ref: 19-1
MODEL J/K
NUT
€ 1.50
19-2
0831616055
ref: 19-2
MODEL L/M/N/P
NUT ,5MM
€ 2.00
20
3178048B00
ref: 20
SEAL SET,OIL
€ 47.50
21
3151427A00
ref: 21
BUSH
€ 4.50
22
3161517C00
ref: 22
PROTECTOR,ALTERNATOR
€ 10.00
23
3177606B00
ref: 23
SPACER
€ 22.00
24-1
0151708905
ref: 24-1
MODEL J/K
BOLT (8X90)
€ 3.50
24-2
0151708908
ref: 24-2
MODEL L/M/N/P
BOLT 8X90
€ 3.50
24-3
0155008903
ref: 24-3
MODEL R
BOLT
€ 3.50
25
2273006B03
ref: 25
GEAR,GENERATOR DRIVEN
€ 113.50
26
2273327A04
ref: 26
HOUSING,GENERATOR GEAR
€ 95.00
27
2123106B00
ref: 27
DAMPER,GENERATOR DRIVEN
€ 5.50
28
0821110283
ref: 28
WASHER
€ 3.00
29
0831626106
ref: 29
NUT
€ 3.50
