FUEL COCK
GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

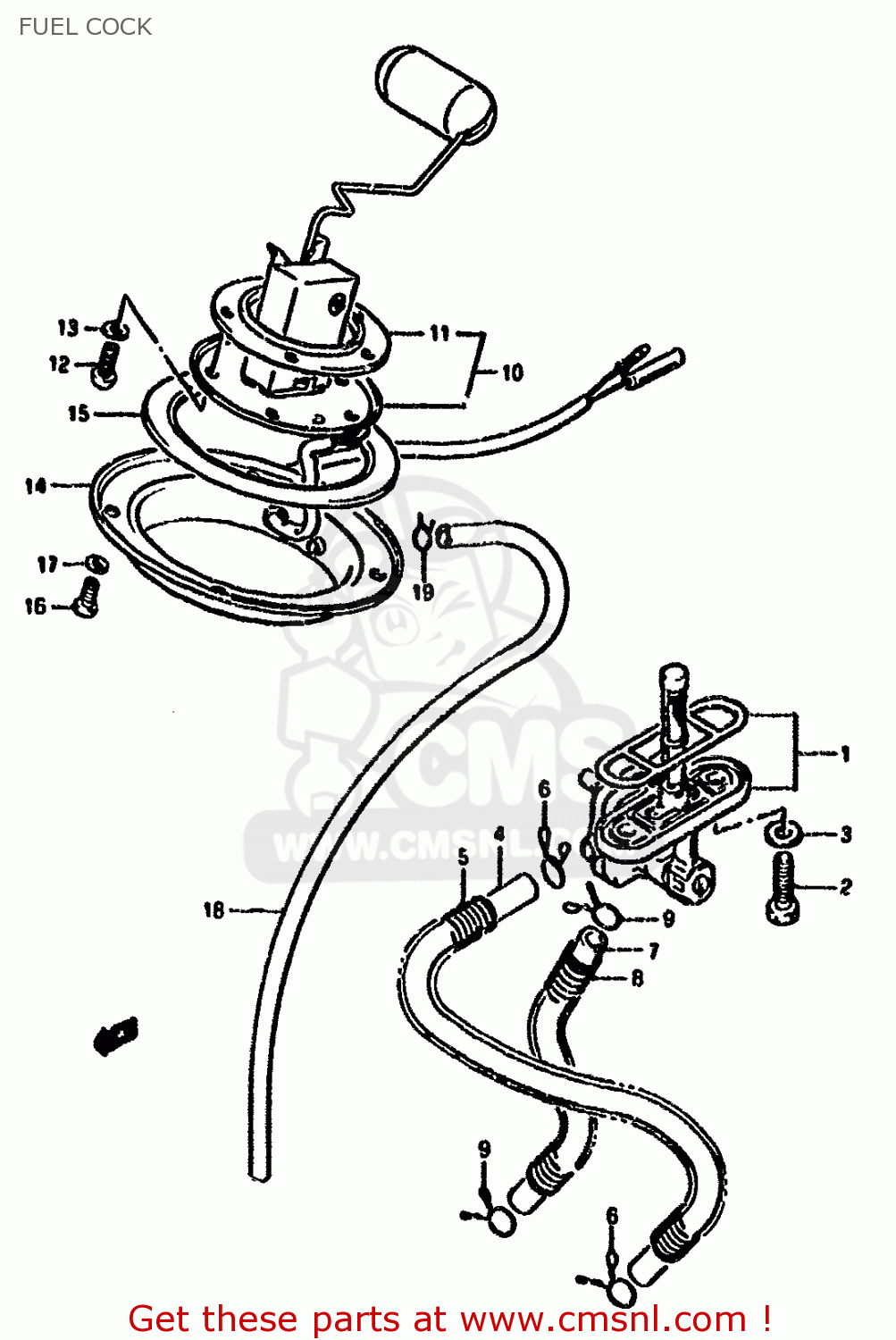

Fuel cock diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
FUEL COCK GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430048B10
ref: 1-1
MODEL J
COCK ASSEMBLY,FUEL
€ 97.00
1-2
4430048B11
ref: 1-2
MODEL K/L/M/N/P/R
COCK ASSY,FUEL
€ 97.00
2
0912806006
ref: 2
BOLT(6X20)
€ 2.00
3-1
0916806023
ref: 3-1
MODEL J
GASKET(5.8X13X1.2) (NAS)
€ 2.00
3-2
0916806026
ref: 3-2
MODEL K/L/M/N/P/R
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0935270103300
ref: 4
HOSE
€ 8.00
5-1
0944013020
ref: 5-1
MODEL J
SPRING
€ 14.50
5-2
0944013047
ref: 5-2
MODEL K/L/M/N/P/R
SPRING
€ 6.00
6
0940110403
ref: 6
CLIP
€ 7.00
7
4443148B00
ref: 7
HOSE,FUEL NO.3
€ 9.00
8-1
0944013018
ref: 8-1
MODEL J
SPRING
€ 14.50
8-2
0944013035
ref: 8-2
MODEL K/L/M/N/P/R
SPRING
€ 6.00
9
0940110201
ref: 9
CLIP
€ 2.00
10
3481048B00
ref: 10
GAUGE ASSY,FUEL LEVEL SENDER
€ 104.50
11
3482545100
ref: 11
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
12-1
0110705106
ref: 12-1
MODEL J
BOLT
€ 1.50
12-2
0113405106
ref: 12-2
MODEL K/L/M/N/P
BOLT
€ 2.00
12-3
0157005103
ref: 12-3
MODEL R
BOLT
€ 2.00
13
0832121056
ref: 13
MODEL J
LOCK WASHER
€ 3.00
14
3488540A00
ref: 14
PLATE,FUEL DRAIN
€ 21.00
15
3488840A00
ref: 15
GASKET,FUEL DRAIN PLATE (NAS)
€ 9.00
16-1
0211205086
ref: 16-1
MODEL J
SCREW
€ 2.00
16-2
0211235086
ref: 16-2
MODEL K/L/M/N/P
SCREW
€ 2.00
16-3
0211235083
ref: 16-3
MODEL R
SUZUKI PART
€ 2.00
17
0832121056
ref: 17
MODEL J
LOCK WASHER
€ 3.00
18
093525082300B
ref: 18
HOSE(5X8.2X2000)
€ 13.00
19
0940108402
ref: 19
CLIP
€ 1.50
