CYLINDER

GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

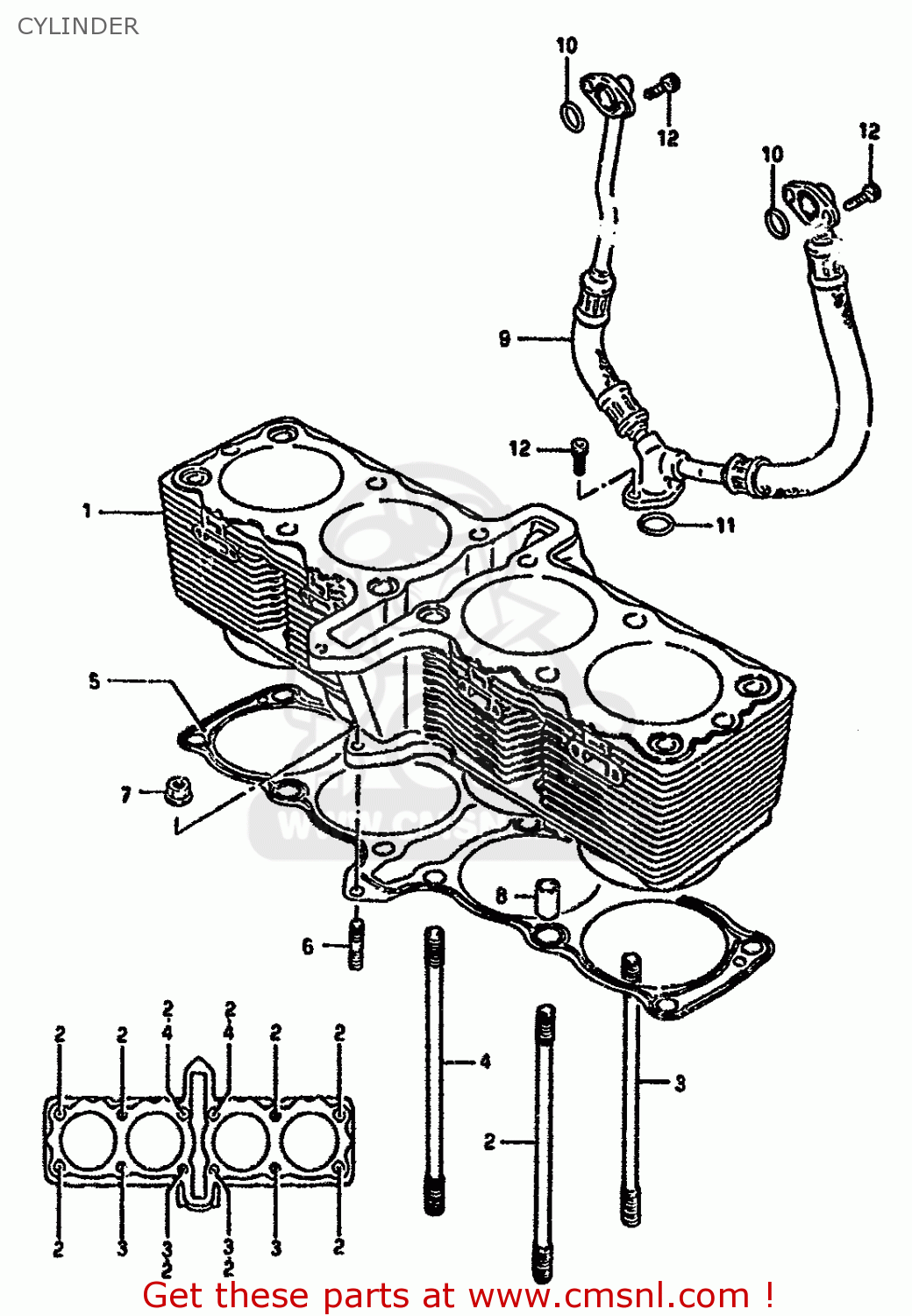

Cylinder diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

CYLINDER GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
CYLINDER GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
CYLINDER GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
prices are in EUR
ref
part #
description
quantity
1-1
1121048B03
ref: 1-1
MODEL J/K/L/M 11210-
CYLINDER
€ 829.00
1-2
1121048B04
ref: 1-2
MODEL N/R
CYLINDER
€ 829.00
1-3
1121048B13
ref: 1-3
MODEL K/L/M E18,MODE
CYLINDER
€ 1,160.00
1-4
1121048B14
ref: 1-4
MODEL N/P/R E18,MODE
CYLINDER
€ 1,160.00
2
0910810081
ref: 2
BOLT,STUD
€ 12.50
3-1
0910810099
ref: 3-1
MODEL J
BOLT,STUD
0910810099
€ 15.50
3-2
0910810099
ref: 3-2
MODEL K/L/M/N/P/R
BOLT,STUD
0910810099
€ 15.50
4
0910810108
ref: 4
MODEL K/L/M/N/P/R
BOLT,STUD
€ 9.00
5
1124148B00
ref: 5
GASKET,CYLINDER (NAS)
1124148B00
€ 18.00
6
0142106205
ref: 6
STUD BOLT L:20
0142106205
€ 2.50
7-1
0831616064
ref: 7-1
MODEL J/K/L/M/N/P
NUT 6MM
0831616064
€ 2.50
7-2
0831610063
ref: 7-2
MODEL R
NUT
0831610063
€ 2.50
8
0920613006
ref: 8
PIN
0920613006
€ 9.00
9
1132848B03
ref: 9
HOSE
€ 283.50
10
0928014011
ref: 10
O RING(D:2.5,ID:13.8)
0928014011
€ 3.50
11
0928015007
ref: 11
O RING(D:2.4,ID:15.8)
0928015007
€ 2.00
12-1
0711006165
ref: 12-1
MODEL J/K/L/M/N/P
BOLT
0711006165
€ 3.00
12-2
0713006163
ref: 12-2
MODEL R
BOLT,OIL FILLE
0713006163
€ 3.00
