REAR WHEEL
GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

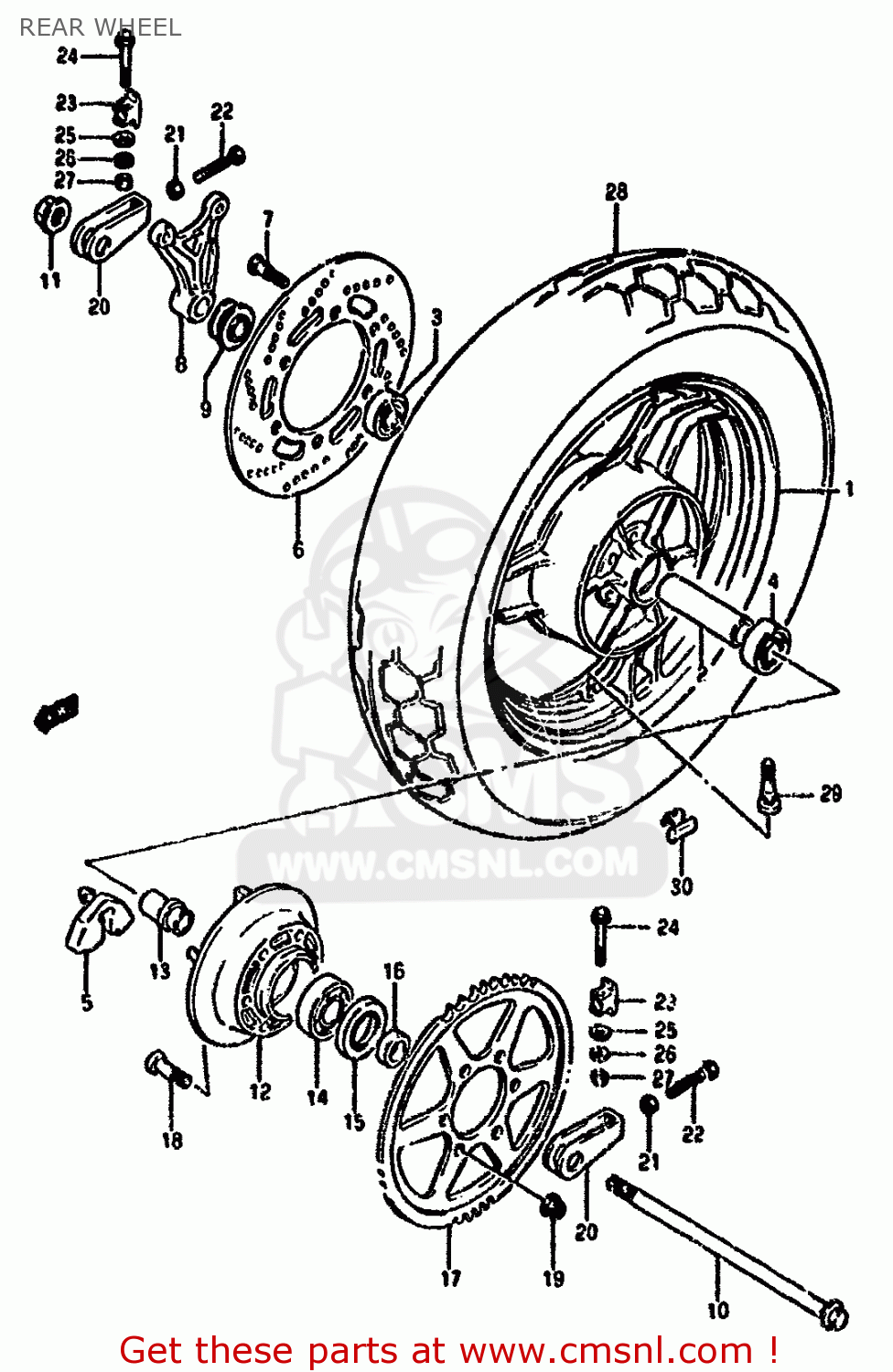

Rear wheel diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
REAR WHEEL GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
×
prices are in EUR
ref
part #
description
quantity
1
6411148B00291
ref: 1
WHEEL,RR(MT,3.50X16)
€ 766.50
2
6473148B00
ref: 2
SPACER,REAR WHEEL HUB
€ 10.50
3-1
0812362047
ref: 3-1
MODEL J
BEARING
€ 17.00
3-2
0926220114
ref: 3-2
MODEL K/L/M/N/P/R
BEARING(20X47X14)
€ 26.50
4
0926220042
ref: 4
BEARING(20X47X14)
€ 21.00
5
6465131001
ref: 5
ABSORBER,RR HUB SHOCK
€ 9.50
6
6921148B10
ref: 6
DISC,RR BRAKE
€ 178.00
7-1
0910608062
ref: 7-1
MODEL J/K/L/M/N
BOLT
€ 6.00
7-2
0910608082
ref: 7-2
MODEL P
BOLT 8X33
€ 6.00
7-3
0910608125
ref: 7-3
MODEL R
BOLT 8X33
€ 6.00
8
6972147011
ref: 8
BRACKET,RR,CALIPER
€ 29.00
9
6474048B00
ref: 9
SPACER,RR AXLE,R
€ 43.00
10-1
6471148B01
ref: 10-1
64711-48B11
AXLE,REAR
€ 84.00
10-2
6471148B11
ref: 10-2
AXLE,RR
€ 84.00
11
0831931188
ref: 11
NUT ,18MM
€ 17.50
12
6461131003
ref: 12
DRUM,RR SPROCKET MOUNTING
€ 140.00
13
6473348B00
ref: 13
RETAINER,RR HUB BEARING
€ 25.50
14
0926225073
ref: 14
BEARING(25X62X17)
€ 21.50
15
0928535001
ref: 15
SEAL,OIL(35X62X8)
€ 9.00
16
6475148B10
ref: 16
SPACER,REAR AXLE,LEFT
€ 12.50
17
6451148B11
ref: 17
SPROCKET,RR(NT:52)
€ 79.50
18-1
0911910027
ref: 18-1
09119-10059
BOLT
€ 3.50
18-2
0911910059
ref: 18-2
MODEL R
BOLT
€ 3.50
19
0831931107
ref: 19
NUT
€ 3.00
20
6141031001
ref: 20
ADJUSTER,CHAIN
€ 50.00
21-1
0831012088
ref: 21-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
21-2
0831000083
ref: 21-2
MODEL R
NUT
€ 1.50
22
0910408006
ref: 22
BOLT
€ 3.00
23
6143331000
ref: 23
SUPPORTER,CHAIN ADJUST
€ 22.50
24-1
0151708558
ref: 24-1
MODEL J/K/L/M/N/P
BOLT 8X55
€ 3.00
24-2
0155008553
ref: 24-2
MODEL R
BOLT
€ 3.00
25-1
0832211088
ref: 25-1
MODEL J/K/L/M/N/P
WASHER
€ 2.00
25-2
0832201083
ref: 25-2
MODEL R
WASHER
€ 1.50
26-1
0832131087
ref: 26-1
MODEL J/K/L/M/N/P
WASHER,LOCK
€ 2.00
26-2
0832101083
ref: 26-2
MODEL R
LOCK WASHER
€ 2.50
27-1
0831012088
ref: 27-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
27-2
0831000083
ref: 27-2
MODEL R
NUT
€ 1.50
28-1
6510048BA0
ref: 28-1
MODEL J E75 (AUSTRAL
TIRE
€ 248.50
28-2
6510048BB0
ref: 28-2
MODEL J E4,E18,E76,E
TIRE
€ 248.50
28-3
6510048BC0
ref: 28-3
MODEL K/L/M EXECUTED
TIRE
€ 248.50
28-4
6511048BC0
ref: 28-4
MODEL N/P/R EXECUTED
TIRE 150/80VB16 V250,M
€ 248.50
29-1
4313075150
ref: 29-1
MODEL J, 43130-78030
VALVE,TIRE
€ 14.50
29-2
4313078030
ref: 29-2
VALVE,TIRE TR413 BS
€ 14.50
29-3
4313024A00
ref: 29-3
MODEL K/L/M/N/P/R 43
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
29-4
4313024A11
ref: 29-4
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
30-1
5541100A00
ref: 30-1
BALANCER,WHEEL (10G)
€ 6.50
30-2
5541200A00
ref: 30-2
BALANCER,WHEEL
€ 7.00
30-3
5541300A00
ref: 30-3
BALANCER,WHEEL
€ 4.00
