POWER SCREEN

GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

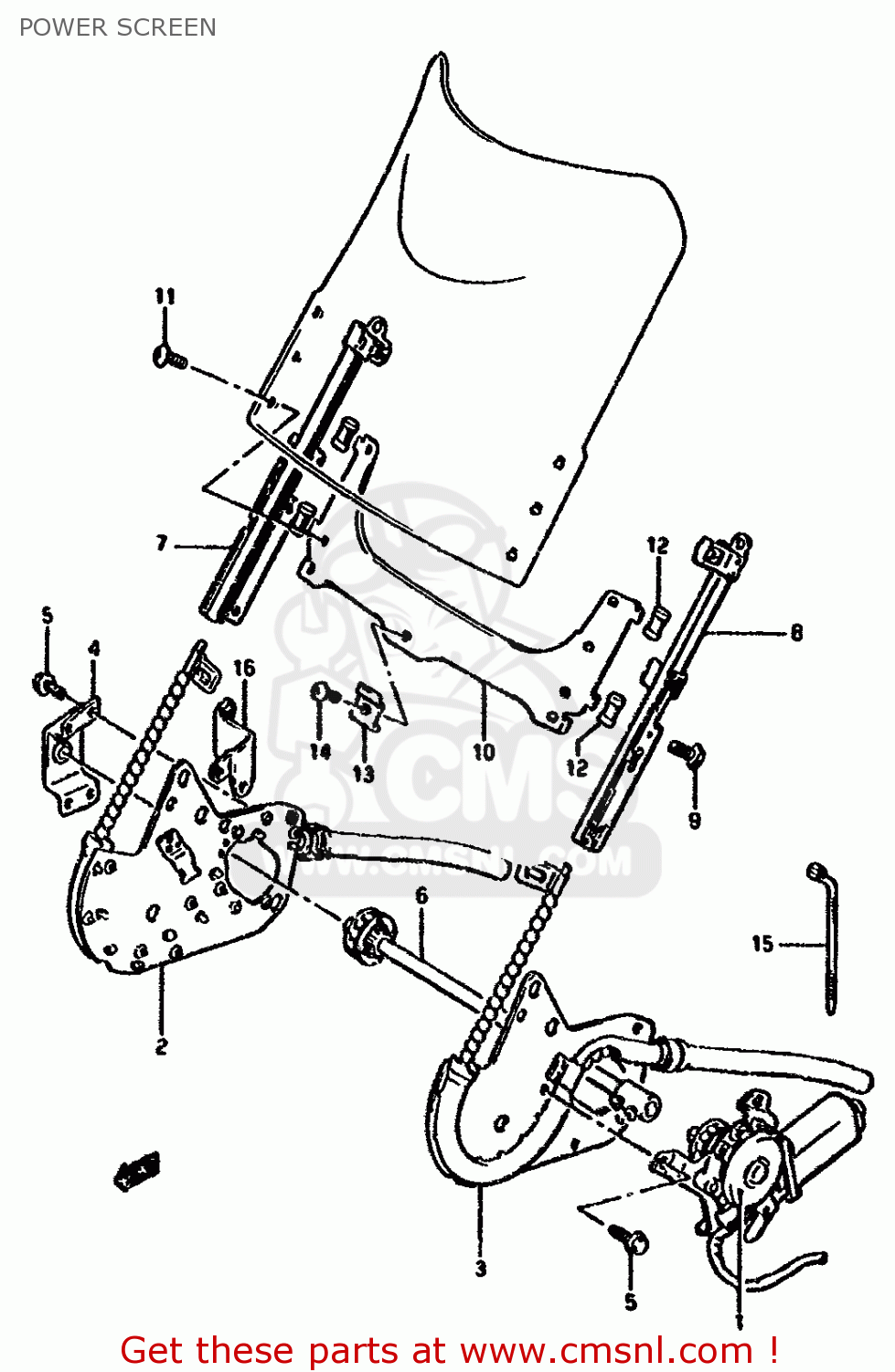

Power screen diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

POWER SCREEN GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

POWER SCREEN GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

prices are in EUR

ref

part #

description

quantity

1

9460048810
ref: 1

MOTOR SET

€ 410.50

2

9460048820
ref: 2

FRAME SET,RIGHT

€ 124.00

3

9460048860
ref: 3

FRAME SET,L

€ 122.50

4

9460048830
ref: 4

METAL BRACKET SET

€ 18.00

5

0151705106
ref: 5

BOLT

€ 2.50

6

9460048840
ref: 6

SHAFT SET

€ 117.00

7

9460048850
ref: 7

PIPE SET,GUIDE,R

€ 89.00

8

9460048870
ref: 8

PIPE SET,GUIDE,L

€ 89.00

9

0151706126
ref: 9

BOLT

€ 2.50

10

9462148B00
ref: 10

BRACKET,SCREEN

€ 34.50

11

0214205124
ref: 11

SCREW, FRONT & REAR

€ 1.50

12

9462248B00
ref: 12

RUBBER,SLIDE

€ 7.50

13

9462348B00
ref: 13

BRACKET,SUPPORT

€ 4.50

14

0211205105
ref: 14

SCREW

€ 2.00

15

0940406415
ref: 15

CLAMP

€ 3.00

16

9462648B00
ref: 16
MODEL K/L/M/N/P/R E1

BRACKET

€ 5.50
