OIL PUMP

GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

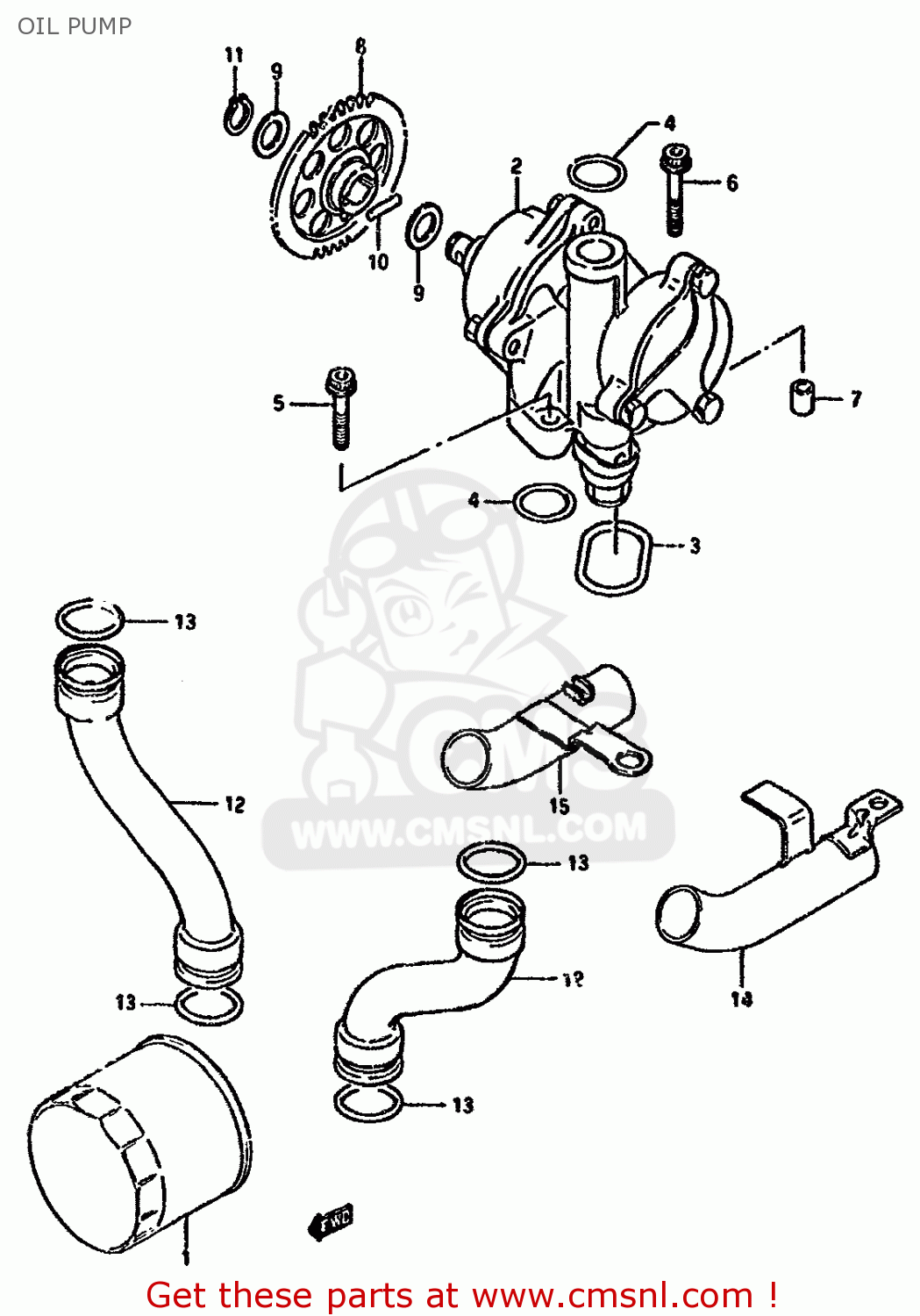

Oil pump diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

OIL PUMP GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

OIL PUMP GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

prices are in EUR

ref

part #

description

quantity

1

1651006B01
ref: 1

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

2

1640006B01
ref: 2

PUMP ASSY,OIL

€ 348.50

3

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

4

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

5-1

0712006308
ref: 5-1
MODEL J/K/L/M/N/P

BOLT

€ 2.50

5-2

0713006303
ref: 5-2
MODEL R

BOLT

€ 3.00

6-1

0712006358
ref: 6-1
MODEL J/K/L/M/N/P

BOLT

€ 3.50

6-2

0713006353
ref: 6-2
MODEL R

BOLT

€ 3.50

7

0421109129
ref: 7

PIN

€ 2.00

8

1633106B010B1
ref: 8

GEAR,OIL PUMP DRIVEN

€ 37.00

9

0822112205
ref: 9

SHIM

€ 1.50

10

0926105006
ref: 10

PIN(5X18)

€ 1.50

11

0833131126
ref: 11

CIRCLIP,12 MM

€ 2.00

12

1648148B01
ref: 12

PIPE,OIL OUTLET

€ 46.00

13

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

14

1653027A02
ref: 14

PIPE,OIL OUTLET UNDER,L

€ 22.00

15

1654027A02
ref: 15

PIPE,OIL OUTLET UNDER,R

€ 23.00
