STARTER CLUTCH

GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

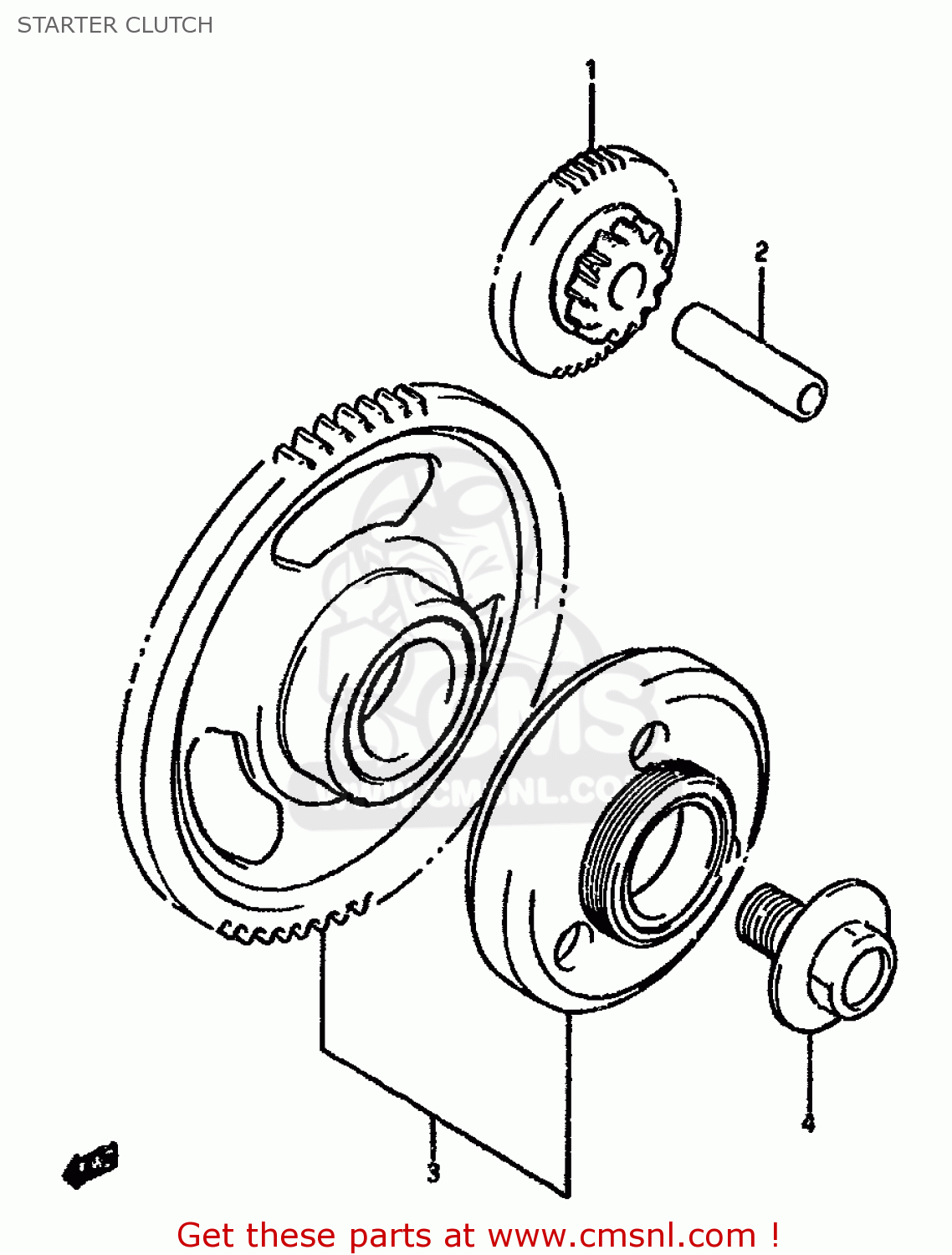

Starter clutch diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

STARTER CLUTCH GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

STARTER CLUTCH GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
