SEAT
GSX1100F 1988 (J) (E01 E18 E75 E76 E78)

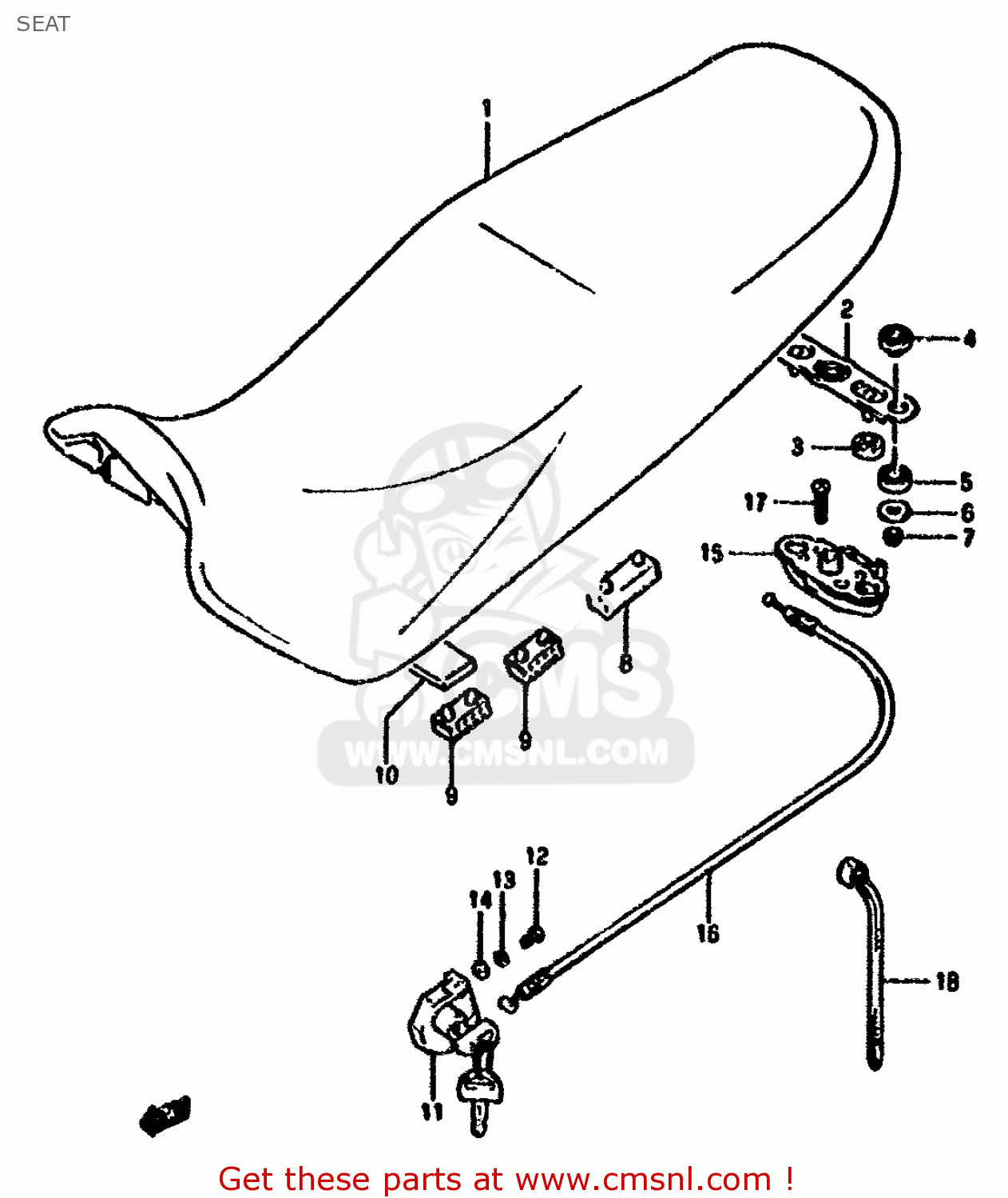

Seat diagram GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
SEAT GSX1100F 1988 (J) (E01 E18 E75 E76 E78)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510048B2058R
ref: 1-1
MODEL J FOR 9WV,9RD
SEAT ASSEMBLY
€ 319.00
1-2
4510048B205ED
ref: 1-2
MODEL J FOR 24V,24D
SEAT ASSEMBLY (SILVER)
€ 319.00
1-3
4510048B2057S
ref: 1-3
MODEL K FOR 2VV
SEAT SET (BLUE)
€ 319.00
2
4521548B20
ref: 2
STRIKER,SEAT LOCK
€ 18.50
3
4521313600
ref: 3
CUSHION
€ 1.50
4
0932010038
ref: 4
CUSHION
€ 4.00
5
0932014017
ref: 5
CUSHION
€ 3.00
6
0821206222
ref: 6
WASHER
€ 1.50
7
0831626066
ref: 7
NUT
€ 2.00
8
4514943500
ref: 8
CUSHION,SEAT
€ 3.00
9
4514948B00
ref: 9
CUSHION,SEAT
€ 6.00
10
9498229400
ref: 10
CUSHION(30X60X10)
€ 1.50
11-1
9570026B00KEY
ref: 11-1
MODEL J/K/L
LOCK SET
€ 45.00
11-2
9570026820
ref: 11-2
MODEL M/N/P/R
LOCK SET,SEAT
€ 45.00
12-1
0211205105
ref: 12-1
MODEL J/K/L
SCREW
€ 2.00
12-2
0211275105
ref: 12-2
MODEL M/N/P
SCREW
€ 1.50
12-3
0211275103
ref: 12-3
MODEL R
SCREW
€ 1.50
13
0832121055
ref: 13
WASHER,LOCK
€ 3.00
14
0832221055
ref: 14
WASHER,5MM
€ 2.50
15-1
4522020A00
ref: 15-1
MODEL J/K/L/M/N
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
15-2
4522020A01
ref: 15-2
MODEL P/R
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
16
4528048B10
ref: 16
CABLE,SEAT LOCK
€ 16.00
17
0212206306
ref: 17
SCREW
€ 2.00
18
0940714403
ref: 18
CLAMP(L:125)
€ 2.50
