COWLING (MODEL K 33J,24D)

GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

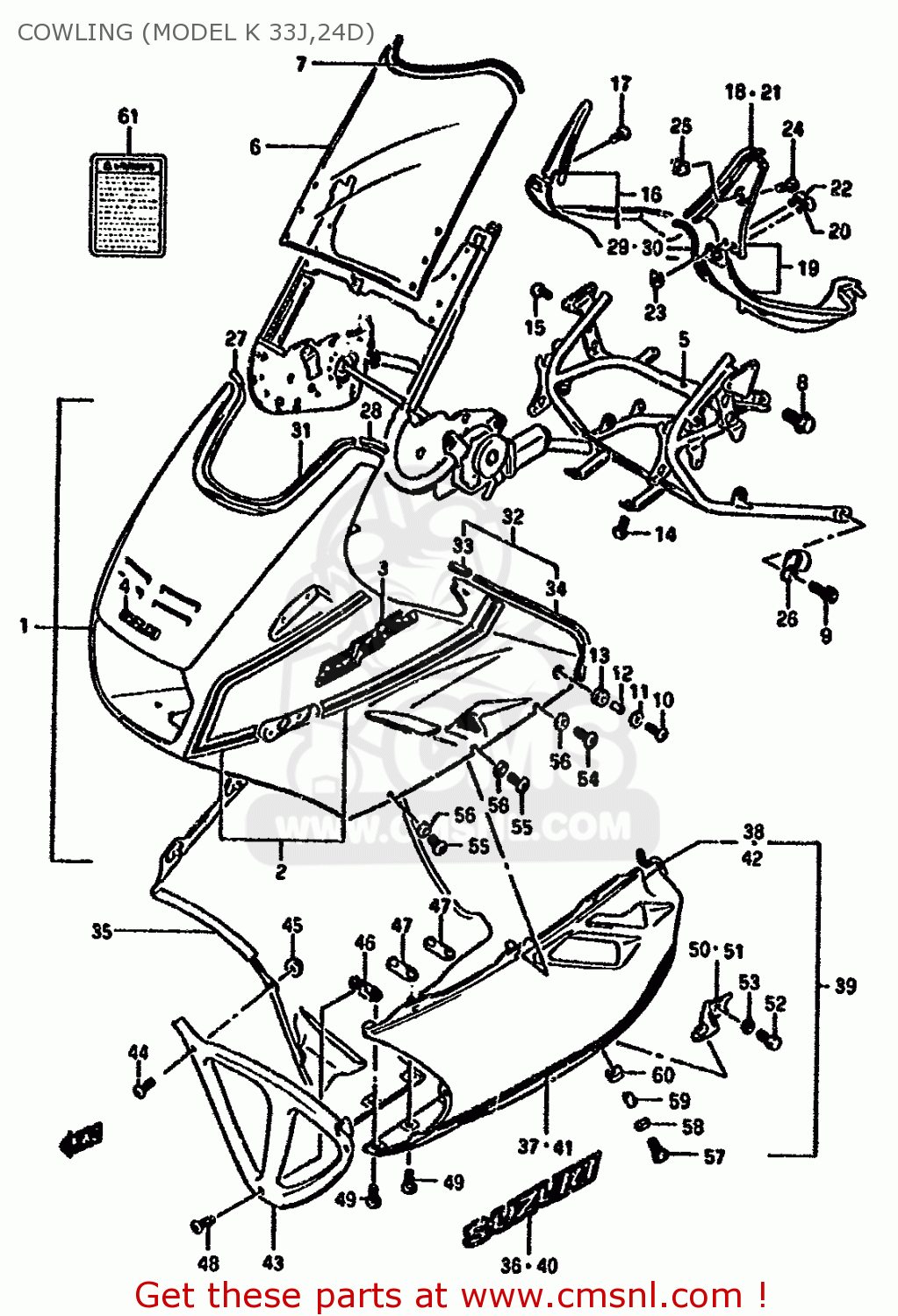

Cowling (model k 33j,24d) diagram GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL K 33J,24D) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL K 33J,24D) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL K 33J,24D) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440048B7033J
ref: 1-1
FOR 33J,CLEAR COTING
COWLING ASSY
€ 1,109.50
1-2
9440048B7133J
ref: 1-2
FOR 33J
BODY ASSY,COWLING (BLACK)
€ 1,109.50
1-3
9440048B7024D
ref: 1-3
FOR 24D,CLEAR COTING
BODY ASSY,COWLING (MAROON)
€ 1,109.50
1-4
9440048B7124D
ref: 1-4
FOR 24D
BODY ASSY,COWLING (MAROON)
€ 1,109.50
2-1
6818048B303BD
ref: 2-1
FOR 33J
TAPE SET,COWLING
€ 38.50
2-2
6818048B303BC
ref: 2-2
FOR 24D
TAPE SET
€ 33.50
3-1
6818148B003BH
ref: 3-1
FOR 33J
EMBLEM (SPS)
€ 23.50
3-2
6818148B003BG
ref: 3-2
FOR 24D
EMBLEM (SPS)
€ 19.50
4-1
6818505C1012R
ref: 4-1
FOR 33J
EMBLEM,COWLING,UPPER
€ 9.00
4-2
6818505C1014B
ref: 4-2
FOR 24D
EMBLEM,COWLING UPR,SUZUKI
€ 8.00
5-1
9451048B11
ref: 5-1
BRACE,COWLING
€ 213.50
5-2
9451048B21
ref: 5-2
E18
BRACE,COWLING
€ 213.50
6
9461148B30
ref: 6
WINDSCREEN
9461148B30
€ 309.50
7
9463148B10
ref: 7
E17
MOLDING
9463148B10
€ 22.50
8
0910310195
ref: 8
BOLT(10X12)
0910310195
€ 2.00
9
0711008165
ref: 9
BOLT
€ 3.00
10
0913906028
ref: 10
SCREW(6X20)
0913906028
€ 3.50
11
0916006056
ref: 11
WASHER(6.5X18X1)
0916006056
€ 2.00
12
0918006152
ref: 12
SPACER
0918006152
€ 3.00
13
0932009016
ref: 13
CUSHION
0932009016
€ 2.50
14
0913906030
ref: 14
SCREW(6X16)
0913906030
€ 3.50
15
0214206127
ref: 15
SCREW 6X12
0214206127
€ 1.50
16
9470048B10291
ref: 16
PANEL ASSY,R
9470048B10291
€ 137.50
17
0214205084
ref: 17
SCREW
€ 2.00
18
9441948B10
ref: 18
MOLDING,COWL.
9441948B10
€ 6.00
19
9480048B10291
ref: 19
PANEL ASSY,L
9480048B10291
€ 141.00
20
0214205084
ref: 20
SCREW
€ 2.00
21
9441948B10
ref: 21
MOLDING,COWL.
9441948B10
€ 6.00
22
0214205124
ref: 22
SCREW, FRONT & REAR
€ 1.50
23
0914805020
ref: 23
NUT
0914805020
€ 2.00
24
0324205124
ref: 24
SCREW
0324205124
€ 1.50
25
0914805020
ref: 25
NUT
0914805020
€ 2.00
26
0940318406
ref: 26
CLAMP
€ 5.50
27
9442648B10
ref: 27
CAP,PANEL & COWLING,R
9442648B10
€ 5.50
28
9442748B10
ref: 28
CAP,PANEL & COWLING,L
9442748B10
€ 4.50
29
9459148B10
ref: 29
MOLDING,COWLING PANEL,R
9459148B10
€ 10.00
30
9459248B10
ref: 30
MOLDING,COWLING PANEL
9459248B10
€ 11.50
31
9441948B00
ref: 31
MOULDING
9441948B00
€ 6.00
32
9443948B00
ref: 32
MOLDING,COWLING BODY SIDE
9443948B00
€ 15.00
33
9465148B00
ref: 33
COVER,MOLDING END
9465148B00
€ 7.50
34
9447948B00
ref: 34
MOLDING,COWLING BODY SIDE
9447948B00
€ 8.50
35-1
9760048B6133J
ref: 35-1
FOR 33J,CLEAR COTING
COVER ASSY,COW
€ 754.50
35-2
9760048B6233J
ref: 35-2
FOR 33J
COVER ASSY,LOWER RH (BLACK)
€ 754.50
35-3
9760048B6124D
ref: 35-3
FOR 24D,CLEAR COTING
COVER ASSY,LOWER RH (MAROON)
€ 754.50
35-4
9760048B6224D
ref: 35-4
FOR 24D
COVER ASSY,LOWER RH (MAROON)
€ 754.50
35-5
9760048C1033J
ref: 35-5
E18 FOR 33J,CLEAR CO
COVER,COWL,R
€ 754.50
35-6
9760048C1133J
ref: 35-6
E18,FOR 33J
COVER ASSY,LOWER RH (BLACK)
€ 754.50
35-7
9760048C1024D
ref: 35-7
E18 FOR 24D,CLEAR CO
COVER ASSY,LOWER RH (MAROON)
9760048C1024D
€ 754.50
35-8
9760048C1124D
ref: 35-8
E18,FOR 24D
COVER ASSY,LOWER RH (MAROON)
€ 754.50
36-1
68111313103BF
ref: 36-1
FOR 33J
EMBLEM
€ 16.00
36-2
68111313103BE
ref: 36-2
FOR 24D
EMBLEM
€ 11.50
37-1
6868548B303BD
ref: 37-1
FOR 33J
TAPE,COWLING,RIGHT
€ 29.00
37-2
6868548B303BC
ref: 37-2
FOR 24D
TAPE,RH
€ 25.00
38
9447948B10
ref: 38
MOLDING,COWLING,LOWER
€ 8.50
39-1
9770048B6133J
ref: 39-1
FOR 33J,CLEAR COTING
COVER ASSY,COW
€ 754.50
39-2
9770048B6233J
ref: 39-2
FOR 33J
COVER ASSY,LOWER LH (BLACK)
€ 754.50
39-3
9770048B6124D
ref: 39-3
FOR 24D,CLEAR COTING
COVER ASSY,LOWER LH (MAROON)
9770048B6124D
€ 754.50
39-4
9770048B6224D
ref: 39-4
FOR 24D
COVER ASSY,LOWER LH (MAROON)
€ 754.50
39-5
9770048C1033J
ref: 39-5
E18 FOR 33J,CLEAR CO
COVER,COWL,L.
€ 754.50
39-6
9770048C1133J
ref: 39-6
E18,FOR 33J
COVER ASSY,LOWER LH (BLACK)
€ 754.50
39-7
9770048C1024D
ref: 39-7
E18 FOR 24D,CLEAR CO
COVER ASSY,LOWER LH (MAROON)
€ 754.50
39-8
9770048C1124D
ref: 39-8
E18,FOR 24D
COVER ASSY,LOWER LH (MAROON)
€ 754.50
40-1
68111313103BF
ref: 40-1
FOR 33J
EMBLEM
€ 16.00
40-2
68111313103BE
ref: 40-2
FOR 24D
EMBLEM
€ 11.50
41-1
6869548B303BD
ref: 41-1
FOR 33J
TAPE,COWLING
€ 29.00
41-2
6869548B303BC
ref: 41-2
FOR 24D
TAPE,LH
€ 29.00
42
9447948B10
ref: 42
MOLDING,COWLING,LOWER
€ 8.50
43-1
9447548B0033J
ref: 43-1
FOR 33J,CLEAR COTING
COVER,COWLING,LOWER,FRONT
€ 66.50
43-2
9447548B0024D
ref: 43-2
FOR 24D,CLEAR COTING
COVER,COWLING,LOWER,FRONT
€ 66.50
43-3
9447548B01
ref: 43-3
FOR 33J,24D
COVER,COWLING,LOWER,FRONT
€ 66.50
44
0913905025
ref: 44
SCREW(5X14)
0913905025
€ 2.00
45
0831626055
ref: 45
NUT
0831626055
€ 2.00
46
9449006B00
ref: 46
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
47
9449306B00
ref: 47
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
48
0913906027
ref: 48
SCREW(6X12)
0913906027
€ 3.00
49
0913906039
ref: 49
SCREW(6X16)
0913906039
€ 2.50
50
9458048B11
ref: 50
BRACE,COWLING LWR,R
9458048B11
€ 6.00
51
9459048B11
ref: 51
BRACE,COWLING LWR,L
€ 8.00
52
0110708127
ref: 52
BOLT 8X12
€ 2.50
53
0832121088
ref: 53
LOCK WASHER
0832121088
€ 2.00
54
0913906028
ref: 54
SCREW(6X20)
0913906028
€ 3.50
55
0913906030
ref: 55
SCREW(6X16)
0913906030
€ 3.50
56
0916107005
ref: 56
WASHER
0916107005
€ 3.00
57
0913906028
ref: 57
SCREW(6X20)
0913906028
€ 3.50
58
0916006056
ref: 58
WASHER(6.5X18X1)
0916006056
€ 2.00
59
0918006121
ref: 59
SPACER(6.4X9.2X12)
0918006121
€ 2.50
60
0932009016
ref: 60
CUSHION
0932009016
€ 2.50
61-1
6861248B10
ref: 61-1
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
61-2
6861248B00
ref: 61-2
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
