REAR SWINGING ARM

GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

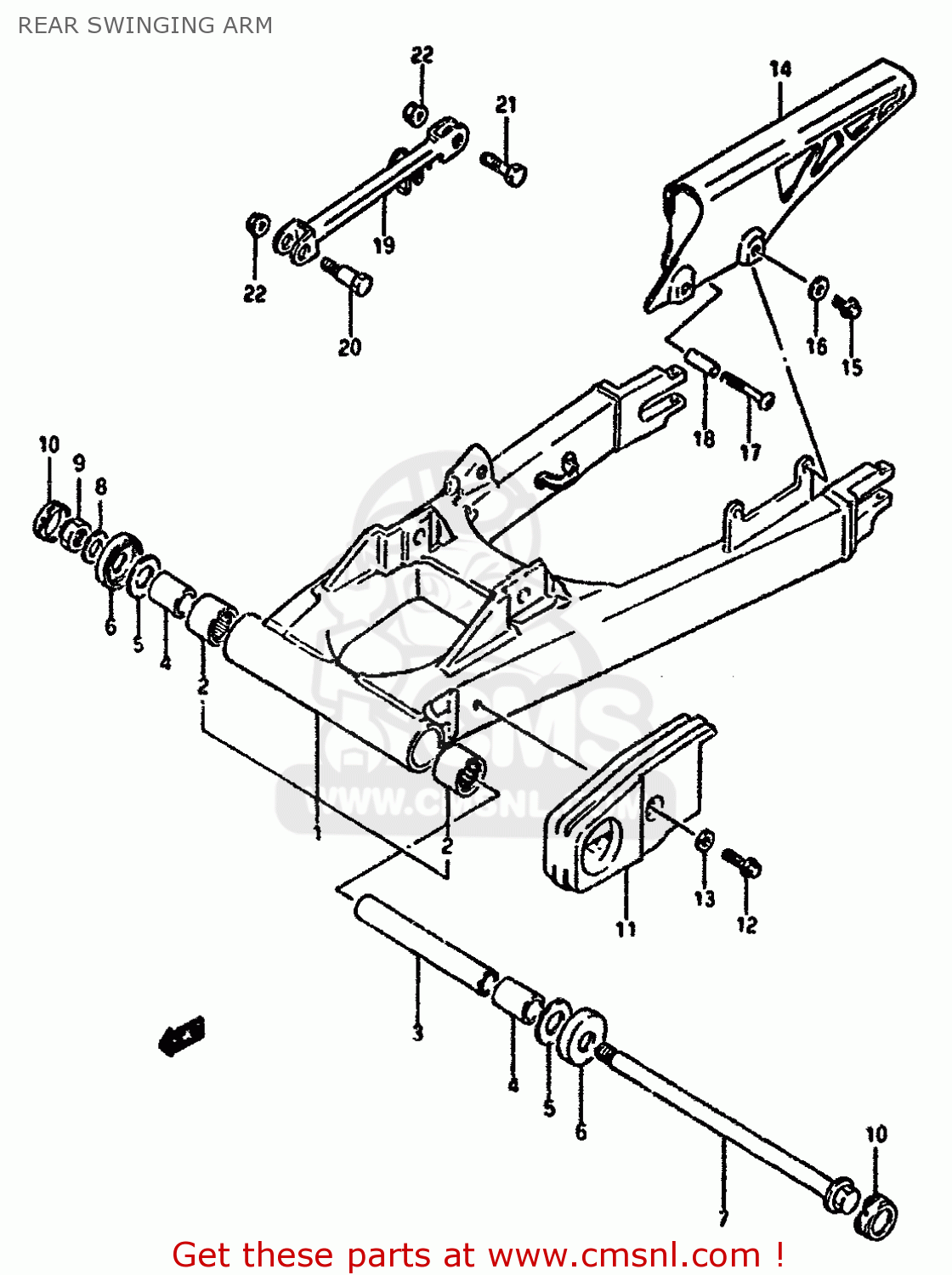

Rear swinging arm diagram GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

REAR SWINGING ARM GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
6100048B10
ref: 1-1
MODEL J
SWING ARM ASSEMBLY,REAR
€ 1,016.50
1-2
6100048C00
ref: 1-2
MODEL K/L/M/N/P/R
SWING ARM ASSEMBLY,REAR
€ 1,068.00
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
6128248B00
ref: 3
SPACER,REAR SWING ARM PIVOT
6128248B00
€ 13.00
4
6125149000
ref: 4
SPACER,RR SWGARM PIVOT
6125149000
€ 17.50
5
0821116381
ref: 5
WASHER
0821116381
€ 2.50
6
6126249201
ref: 6
COVER,RR SWINGINGARM PIVOT
6126249201
€ 8.50
7-1
6121148B11
ref: 7-1
MODEL J
SHAFT,REAR SWING ARM PIVOT
€ 44.50
7-2
6121120C00
ref: 7-2
MODEL K/L/M/N/P/R
SHAFT,REAR SWING ARM PIVOT
€ 35.00
8
0916014015
ref: 8
WASHER(14X27X3)
0916014015
€ 4.00
9
0915914013
ref: 9
NUT
0915914013
€ 8.50
10
6122248B00
ref: 10
CAP,RR SWINGING ARM PIVOT
6122248B00
€ 4.00
11
6127348B11
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
6127348B11
€ 30.00
12-1
0151706207
ref: 12-1
MODEL J/K/L/M/N/P
BOLT 6X20
€ 2.50
12-2
0155006203
ref: 12-2
MODEL R
BOLT
0155006203
€ 2.50
13
0916906040
ref: 13
WASHER
0916906040
€ 2.00
14
6131048B00
ref: 14
CASE,CHAIN
€ 51.50
15-1
0151706125
ref: 15-1
MODEL J/K/L/M/N/P
BOLT 6X12
0151706125
€ 2.50
15-2
0155006123
ref: 15-2
MODEL R
BOLT
0155006123
€ 2.50
16
0916906026
ref: 16
WASHER
0916906026
€ 2.00
17-1
0214206558
ref: 17-1
MODEL J/K/L/M/N/P
SCREW
€ 2.50
17-2
0214206553
ref: 17-2
MODEL R
SCREW
0214206553
€ 2.50
18
0918006130
ref: 18
SPACER(6.5X10.5X40)
0918006130
€ 10.00
19
6431048B10
ref: 19
TORQUELINK,RR
6431048B10
€ 19.50
20
0911110039
ref: 20
BOLT,FRONT
€ 4.50
21
0910010265
ref: 21
BOLT,REAR
€ 4.50
22
0831931105
ref: 22
NUT 10MM
€ 3.00
