STEERING STEM

GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

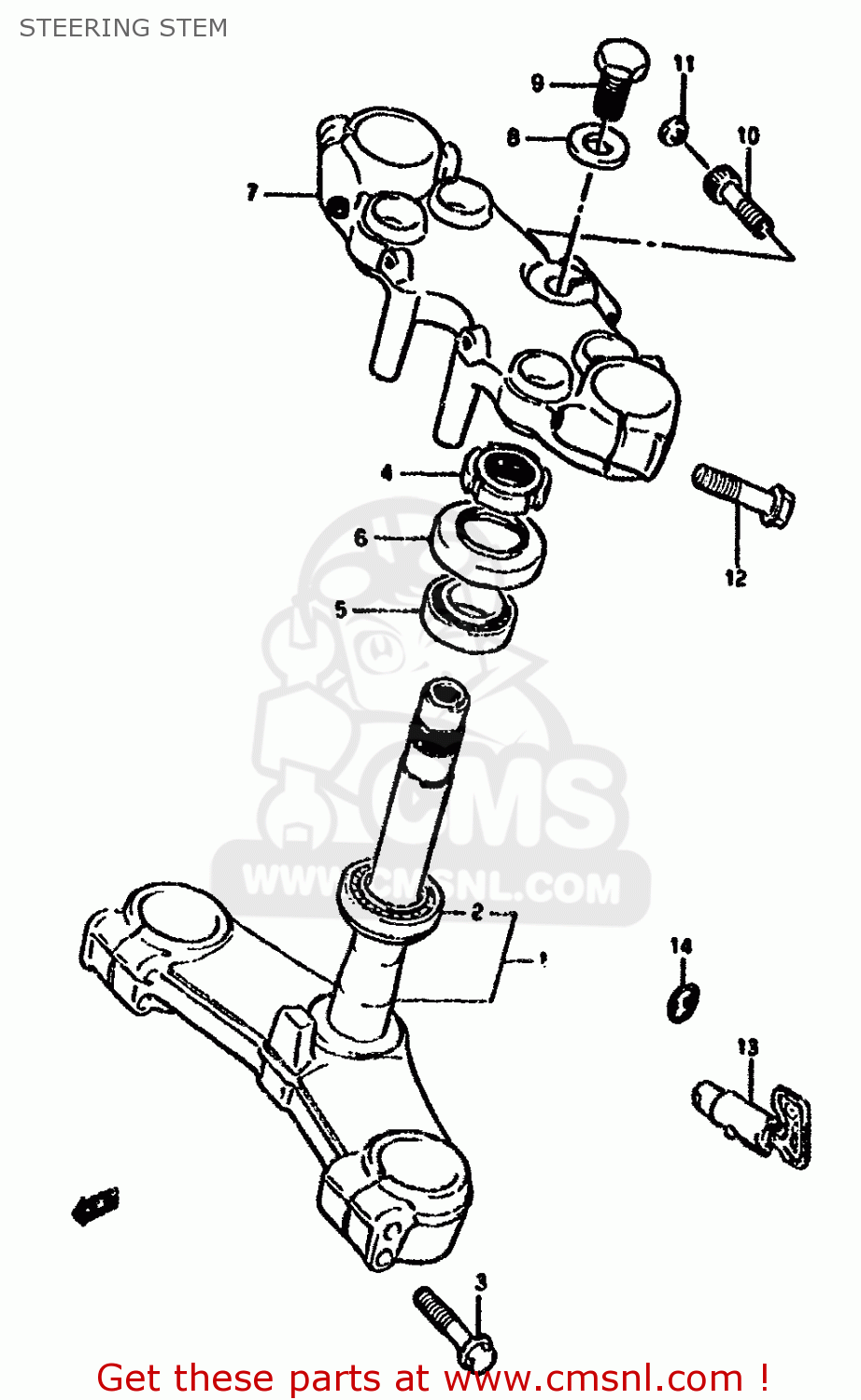

Steering stem diagram GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STEERING STEM GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STEERING STEM GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STEERING STEM GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
5141048B31
ref: 1-1
MODEL J
STEM,STEERING
€ 626.00
1-2
5141048B41
ref: 1-2
MODEL J E76,E78
STEM,STEERING
€ 626.00
1-3
5141048B42
ref: 1-3
MODEL K/L/M/N/P/R
STEM,STEERING
€ 626.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
0151708455
ref: 3
BOLT
€ 3.00
4
5163128000
ref: 4
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
5
0926525008
ref: 5
TAPER,ROLLER BEARING
0926525008
€ 48.50
6-1
5164340502
ref: 6-1
MODEL J/K/L/M/N
DUST SEAL,STEERING UPR
5164340502
€ 8.00
6-2
5164334A00
ref: 6-2
MODEL P
DUST SEAL,STEERING,UPPER
5164334A00
€ 7.50
6-3
5164349002
ref: 6-3
MODEL R
SEAL,STEERING UPR DUST
5164349002
€ 7.50
7
5131148B31
ref: 7
BRACKET,UPR
€ 287.50
8-1
5135631305
ref: 8-1
MODEL J/K/L/M/N/P
WASHER,STEM HEAD
€ 4.00
8-2
5135643530
ref: 8-2
MODEL R
WASHER,STEERING STEM
5135643530
€ 4.00
9
5135231305
ref: 9
BOLT
5135231305
€ 11.50
10
0711008305
ref: 10
BOLT, REAR (8X30)
0711008305
€ 3.00
11
0925006004
ref: 11
CAP(OD:14.5)
0925006004
€ 1.50
12
0151710405
ref: 12
BOLT 10X40
0151710405
€ 4.00
13
5190022662
ref: 13
MODEL J E76,E78 MODE
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
14
5191545000
ref: 14
E17,E22
LABEL,STEERING LOCK
5191545000
€ 1.50
