STARTING MOTOR

GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

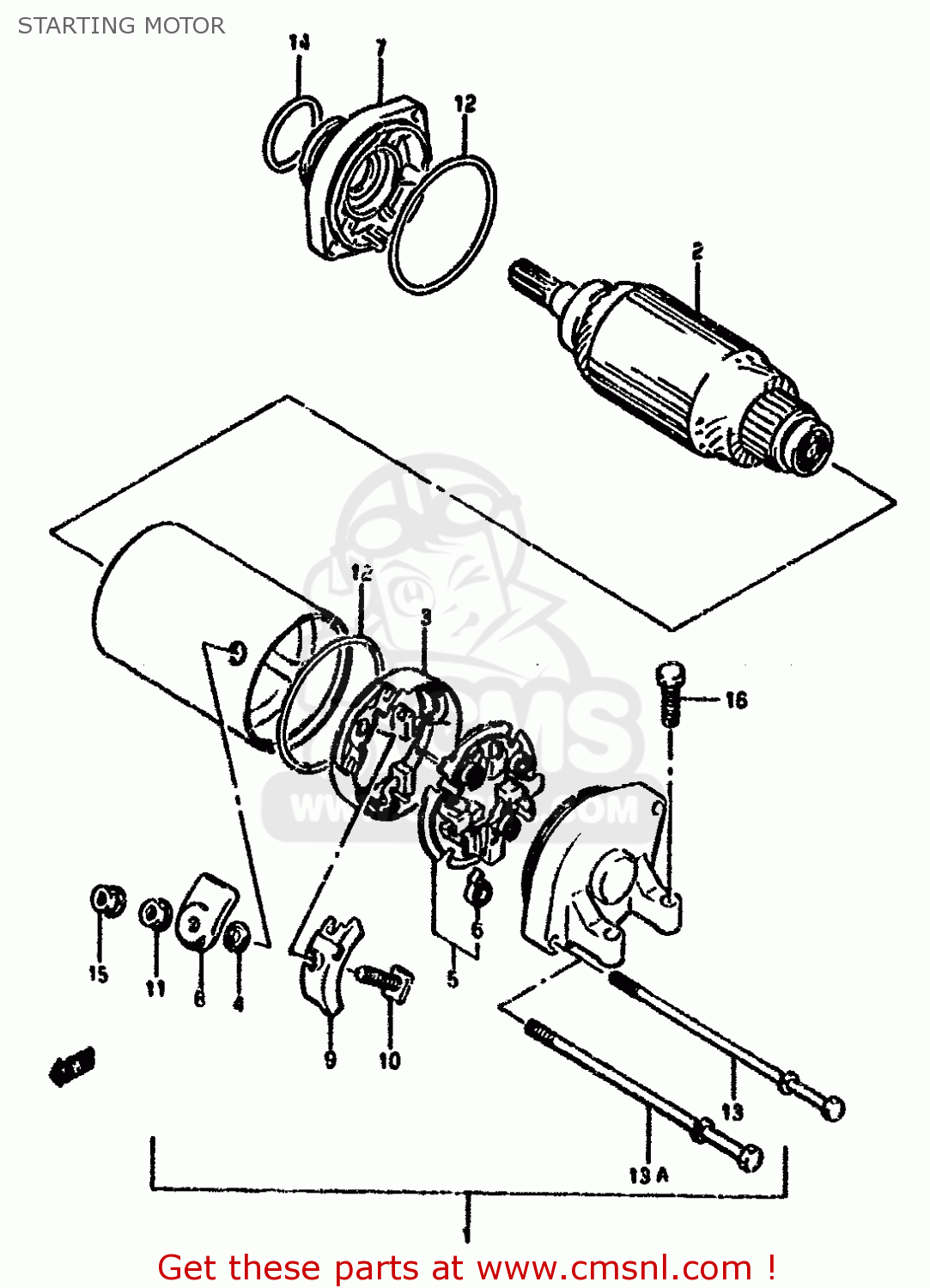

Starting motor diagram GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

STARTING MOTOR GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STARTING MOTOR GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
STARTING MOTOR GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3110048B00
ref: 1-1
BOLT,THROUGH:M5 3110
MOTOR ASSEMBLY,STARTING
€ 705.50
1-2
3110048B01H17
ref: 1-2
BOLT,THROUGH:M6
MOTOR ASSEMBLY,STARTING
€ 705.50
2
3131048B01H17
ref: 2
ARMATURE
€ 188.50
3
3113148B00
ref: 3
TERMINAL SET,BRUSH
3113148B00
€ 35.00
4
3114348B00
ref: 4
GASKET (NAS)
3114348B00
€ 6.50
5
3113248B00
ref: 5
HOLDER SET,BRUSH(-)
3113248B00
€ 51.00
6
3113565010
ref: 6
SPRING
3113565010
€ 3.00
7-1
3115048B00
ref: 7-1
M5
BRACKET SET
€ 59.00
7-2
3115048B10
ref: 7-2
M6
BRACKET SET,STARTING MOTOR
€ 59.00
8
3117248B10
ref: 8
BUSHING
3117248B10
€ 3.00
9
3117248B20
ref: 9
BUSHING
3117248B20
€ 8.50
10
3113048B00
ref: 10
BOLT
€ 4.50
11
3114548B00
ref: 11
NUT
€ 1.50
12
3126444110
ref: 12
O RING
3126444110
€ 8.00
13
3128148B01
ref: 13
M5
BOLT,STARTING
€ 6.50
13A
3128148B10
ref: 13A
M6
BOLT,STARTING MOTOR
€ 5.50
14
3115648B00
ref: 14
O RING
3115648B00
€ 8.50
15
0836135066
ref: 15
NUT
€ 2.00
16
0912806024
ref: 16
SCREW (6X25)
0912806024
€ 2.50
