CRANKCASE

GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

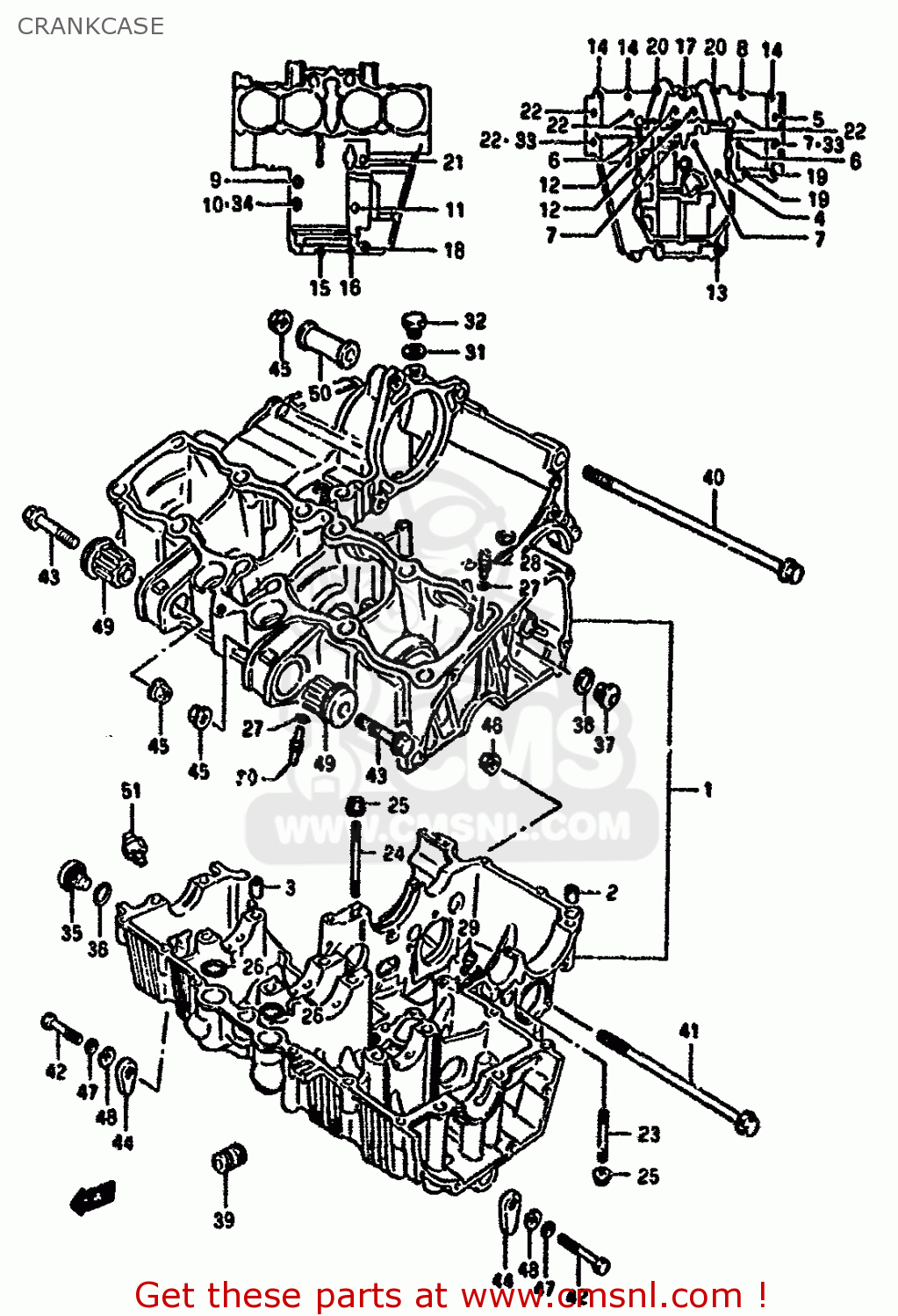

Crankcase diagram GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CRANKCASE GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1130048831
ref: 1-1
MODEL J/K/L, 11300-4
CRANKCASE SET
€ 2,251.50
1-2
1130048832
ref: 1-2
MODEL M, 11300-48833
CRANKCASE SET
€ 2,251.50
1-3
1130048833
ref: 1-3
MODEL N/P/R INCLUDED
CRANKCASE SET
€ 2,251.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0910306067
ref: 4
BOLT(6X105)
0910306067
€ 3.50
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
8-1
0151706354
ref: 8-1
MODEL J/K/L/M/N
BOLT 6X35
€ 2.50
8-2
0151706358
ref: 8-2
MODEL P
BOLT 6X35
0151706358
€ 2.50
8-3
0155006353
ref: 8-3
MODEL R
BOLT
0155006353
€ 2.50
9-1
0711006405
ref: 9-1
MODEL J/K/L/M/N
BOLT
0711006405
€ 3.50
9-2
0713006408
ref: 9-2
MODEL P
BOLT
€ 2.50
9-3
0713006403
ref: 9-3
MODEL R
BOLT
0713006403
€ 3.50
10-1
0711006505
ref: 10-1
MODEL J/K/L
BOLT
€ 3.00
10-2
0910606072
ref: 10-2
MODEL M/N/P/R
BOLT 6X55
€ 3.00
11-1
0711006655
ref: 11-1
MODEL J/K/L/M/N
BOLT
€ 4.00
11-2
0713006658
ref: 11-2
MODEL P
BOLT
€ 4.00
11-3
0713006653
ref: 11-3
MODEL R
BOLT
0713006653
€ 4.00
12-1
0711008655
ref: 12-1
MODEL J/K/L/M/N
BOLT
€ 3.50
12-2
0711008658
ref: 12-2
MODEL P
BOLT
€ 3.50
12-3
0713008653
ref: 12-3
MODEL R
BOLT
€ 3.50
13-1
0151708605
ref: 13-1
MODEL J/K/L/M/N
BOLT 8X60
€ 3.50
13-2
0151708608
ref: 13-2
MODEL P
BOLT
€ 3.50
13-3
0155008603
ref: 13-3
MODEL R
BOLT
€ 3.50
14-1
0151706354
ref: 14-1
MODEL J/K/L/M/N
BOLT 6X35
€ 2.50
14-2
0151706358
ref: 14-2
MODEL P
BOLT 6X35
0151706358
€ 2.50
14-3
0155006353
ref: 14-3
MODEL R
BOLT
0155006353
€ 2.50
15-1
0151706404
ref: 15-1
MODEL J/K/L/M/N
BOLT
0151706404
€ 2.00
15-2
0151706408
ref: 15-2
MODEL P
BOLT
0151706408
€ 2.50
15-3
0155006403
ref: 15-3
MODEL R
BOLT
0155006403
€ 2.00
16-1
0151706408
ref: 16-1
MODEL J/K/L/M/N/P
BOLT
0151706408
€ 2.50
16-2
0155006403
ref: 16-2
MODEL R
BOLT
0155006403
€ 2.00
17-1
0151706505
ref: 17-1
MODEL J/K/L/M/N
BOLT 6X50
0151706505
€ 2.00
17-2
0151706508
ref: 17-2
MODEL P
BOLT ,6X50
€ 2.00
17-3
0155006503
ref: 17-3
MODEL R
BOLT
0155006503
€ 2.00
18-1
0151706605
ref: 18-1
MODEL J/K/L/M/N
BOLT ,6X60
€ 2.50
18-2
0151706608
ref: 18-2
MODEL P
BOLT (6X60)
€ 2.50
18-3
0155006603
ref: 18-3
MODEL R
BOLT
0155006603
€ 2.50
19-1
0151706557
ref: 19-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
19-2
0155006553
ref: 19-2
MODEL R
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
20-1
0151706705
ref: 20-1
MODEL J/K/L/M/N
BOLT
€ 2.50
20-2
0151706708
ref: 20-2
MODEL P
BOLT (6X70)
€ 3.00
20-3
0155006703
ref: 20-3
MODEL R
BOLT
€ 2.50
21-1
0151706805
ref: 21-1
MODEL J/K/L/M/N
BOLT
€ 2.50
21-2
0151706808
ref: 21-2
MODEL P
BOLT (6X80)
€ 3.00
21-3
0155006803
ref: 21-3
MODEL R
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
0910308105
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25-1
0915906017
ref: 25-1
MODEL J/K/L/M/N/P
NUT
0915906017
€ 2.50
25-2
0831610063
ref: 25-2
MODEL R
NUT
0831610063
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
0928021008
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
0928004004
€ 2.00
28
0949314002
ref: 28
JET,AIR
0949314002
€ 8.00
29
0949324010
ref: 29
JET
0949324010
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
0949380008
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
0924712103
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
34
0916806018
ref: 34
MODEL M/N/P/R
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
35
0924816003
ref: 35
PLUG
0924816003
€ 16.50
36
0928017002
ref: 36
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
37-1
0924814004
ref: 37-1
MODEL J/K/L
PLUG
0924814004
€ 5.00
37-2
0924814005
ref: 37-2
MODEL M/N/P/R
PLUG,14X12
0924814005
€ 5.00
38
0916814004
ref: 38
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
39
1659106B00
ref: 39
UNION,OIL STAND
1659106B00
€ 6.00
40
0910310136
ref: 40
BOLT(10X180)
0910310136
€ 11.50
41
0910012053
ref: 41
BOLT
€ 2.50
42-1
0110710558
ref: 42-1
MODEL J/K/L/M/N/P
BOLT 10X55
0110710558
€ 3.50
42-2
0158010553
ref: 42-2
MODEL R
BOLT
€ 3.00
43-1
0151710558
ref: 43-1
MODEL J/K/L/M/N/P
BOLT 10X55
€ 3.00
43-2
0155010553
ref: 43-2
MODEL R
BOLT
€ 3.00
44
0915910020
ref: 44
NUT
0915910020
€ 7.50
45
0915910058
ref: 45
NUT
0915910058
€ 4.00
46
0831931128
ref: 46
NUT 12MM
0831931128
€ 4.00
47
0832121107
ref: 47
MODEL J/K/L/M/N/P
WASHER,LOCK,10
0832121107
€ 2.00
48
0832211107
ref: 48
MODEL J/K/L/M/N/P
WASHER
0832211107
€ 2.50
49
1168106B00
ref: 49
BUSH,ENGINE MOUNTING
1168106B00
€ 26.00
50-1
1161117C00
ref: 50-1
MODEL J/K 11611-06B0
SPACER,ENGINE MOUNT
1161117C00
€ 10.00
50-2
1161020C00
ref: 50-2
MODEL L/M/N/P/R
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
51
3782033D00
ref: 51
37820-33200
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
